Test Tools

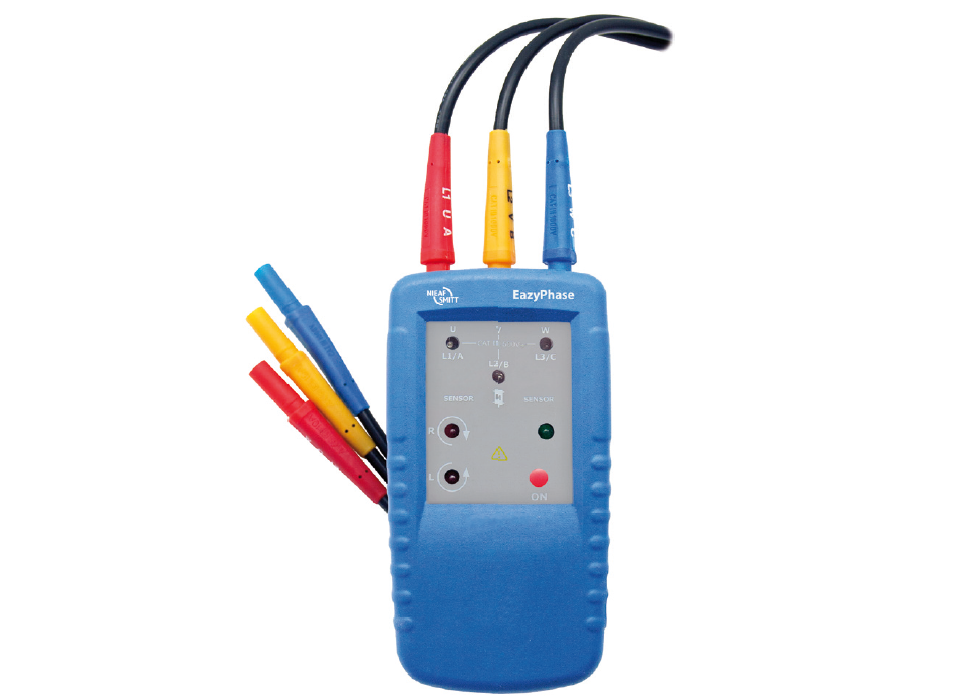

EazyPhase Phase- / motor rotation tester

626005051
Summary
The EasyPhase is a 4-in-1 test tool for indication of phase rotation, indication of an open phase and field rotation indication of motors. The tester is ideal for installing conveyor lines, pump systems and interconnected drivers.

Features

  • Determine rotary field direction
  • Determine motor connection
  • Indication of open phase
  • Magnetic field detection

Specifications

Functies
Voltage 120...600 VAC
Frequency 2...400 Hz
Algemeen
Power consumption Approx. 3.5 mA at phase rotation
Approx. 20 mA at motor rotation
Overvoltage category CAT III 600 V
Standards EN 61010-1
Supply 1x 9 V battery
Dimensions 275 x 124 x 61 mm
Weight 130 g

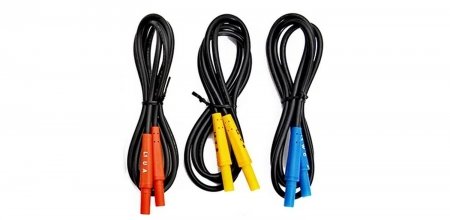

Including Test leads, alligator clamps, bag, battery, manual
