Test Tools


Test Tools

For safe and quick detection of voltage presence, different voltage detectors are available. Approaching a voltage leading part, the voltage detectors will indicate this in several ways.

The line of voltage testers EazyVolt offer the ability to measure and indicate the exact voltage (AC/DC), phase indication, phase rotation and continuity.

The EazyAmpPLUS is a versatile electrical tester for measuring current up to 200 A in a CAT IV 600 V environment. All the models and the differences between them are shown in the selection diagram below.
Filter
Test Tools

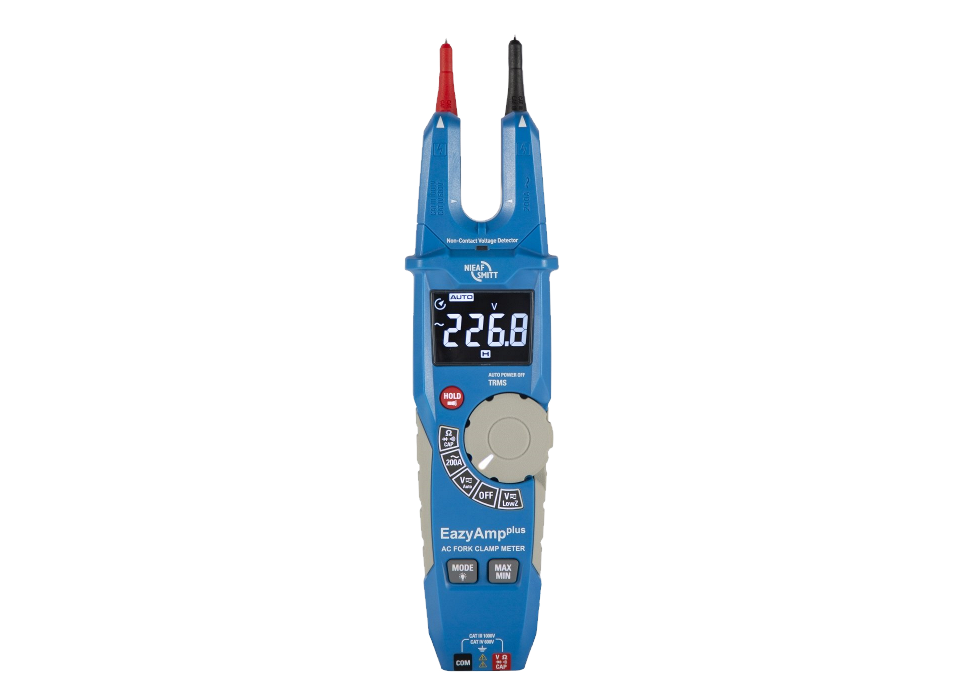

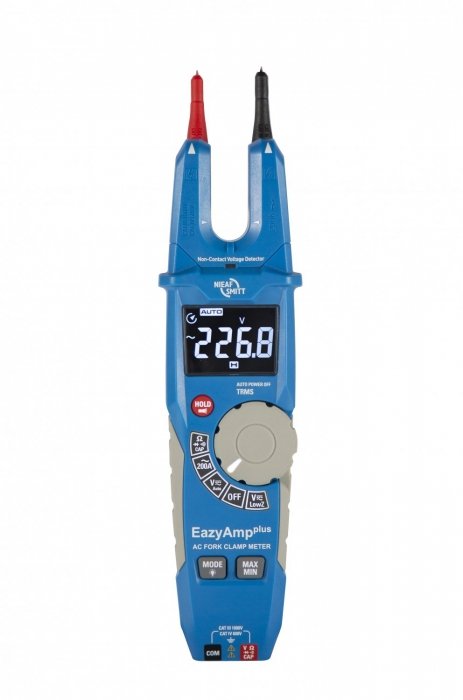

EazyAmpPLUS Current clamp

626000863
  • AC current up to 200 A
  • AC/DC voltage up to 1000 V
  • LowZ voltage measurement (low impedance)
  • Resistance and capacity
  • Continuity / diode test
  • 'Negative' display and illuminated buttons
  • Max-min mode
  • Measuring point illumination
Test Tools

EazyVolt Basic Voltage tester

626002000
  • Measuring AC voltage
  • Measuring DC voltage
  • Singel-Pole Phase detection
  • Continuity
Test Tools

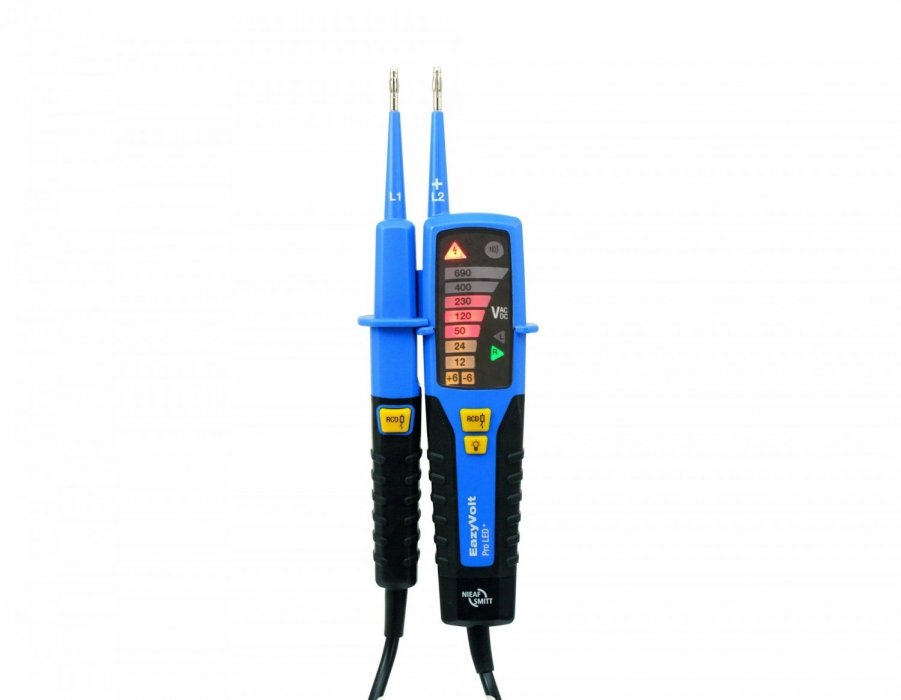

EazyVolt Pro LED Voltage tester

626002030
  • Measuring AC voltage
  • Measuring DC voltage
  • Phase detection (1-pole)
  • Continuity
  • Phase rotation
  • Self test
  • Torch
Test Tools

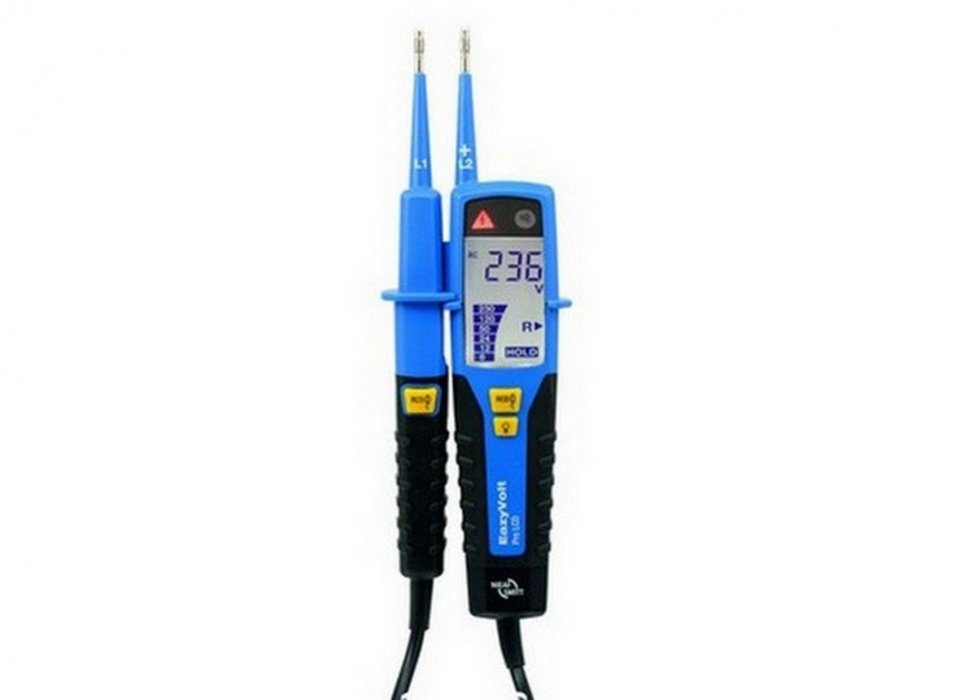

EazyVolt Pro LCD Voltage tester

626002060
  • Measuring AC voltage
  • Measuring DC voltage
  • Phase detection (1-pole)
  • Continuity
  • Phase rotation
  • Self test
  • Torch
  • Resistance
  • Frequency
  • RCD test
  • Non contact voltage detection
  • Diode test
Test Tools

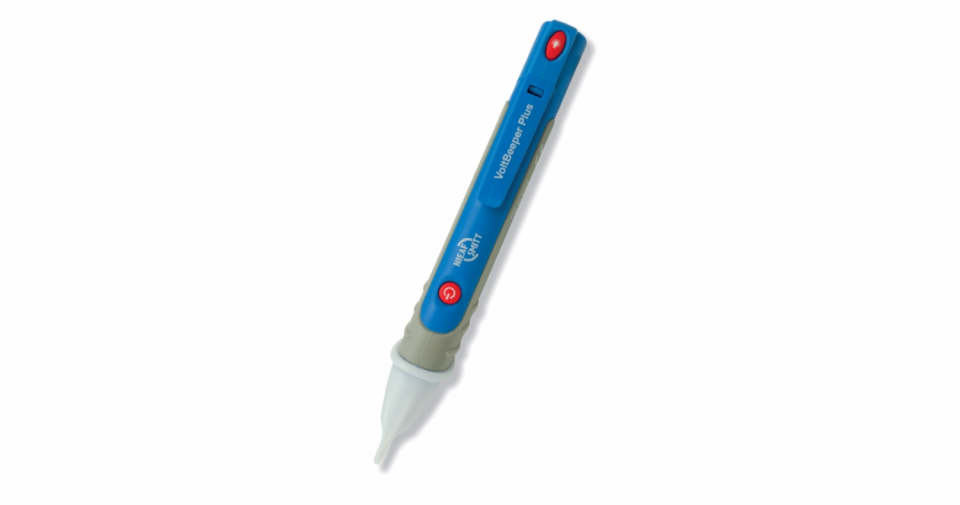

VoltBeeper plus Voltage detector

626000837
  • 50...1000 VAC
  • Non contact voltage detection
  • Optical and acoustical signal when voltage is detected
  • Self test
  • Flashlight
  • Switches off automatically
Test Tools

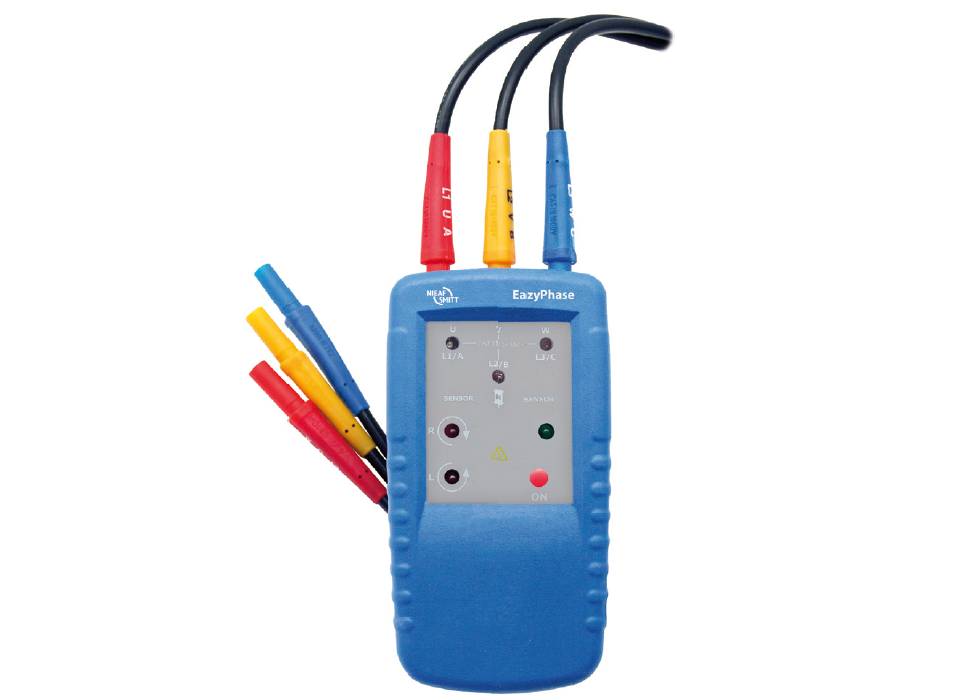

EazyPhase Phase- / motor rotation tester

626005051
  • Determine rotary field direction
  • Determine motor connection
  • Indication of open phase
  • Magnetic field detection
Test Tools

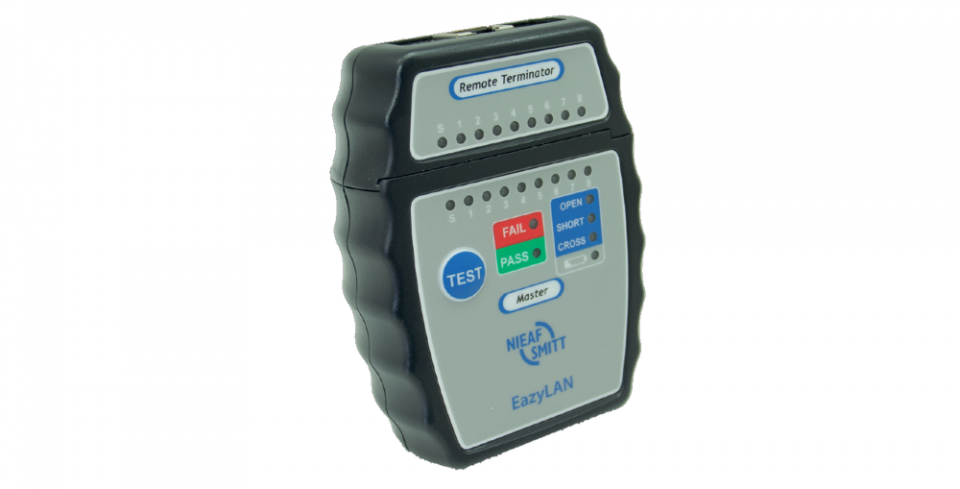

EazyLAN UTP/STP RJ45 LAN cable tester

626000810
  • Automatic and manual test sequence
  • Good / fault indication
  • Auto power off
  • Suitable for RJ45 UTP & STP cables
Test Tools

LineSpotter

626000553
  • Tracing of cables in walls, ceilings, floors or ground up to 20 cm
  • Indiction under live and not connected situations
  • Location of cable interruptions or short circuits
  • Location of hidden sockets or distribution boxes
  • Locating fuses and assignment to circuits
  • Determine individual wires in a bundle
  • Tracing of plumbing or other conductive loops
