Instantaneous plug-in Auxiliary power relays

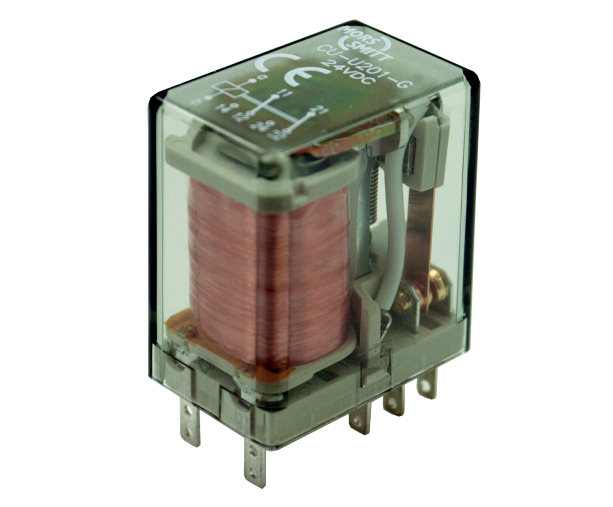

CU-A series, miniature instantaneous relays

Summary

CU-A relays, 1C/O + 1 N/O (weld no transfer), 6A, AC coil

Heavy duty miniature power relays for demanding applications, switching of AC&DC voltages, resistive and/or inductive loads. Equipped with weld no transfer contacts.
  • Plug in (CU) or PCB (CP)
  • Miniature power relay
  • 1C/O + 1 N/O contact
  • AC coil
  • Coil voltages 24...180VAC
  • Flash barriers
  • Cadmium free contacts
  • Equipped with keying
