Instantaneous plug-in Auxiliary power relays

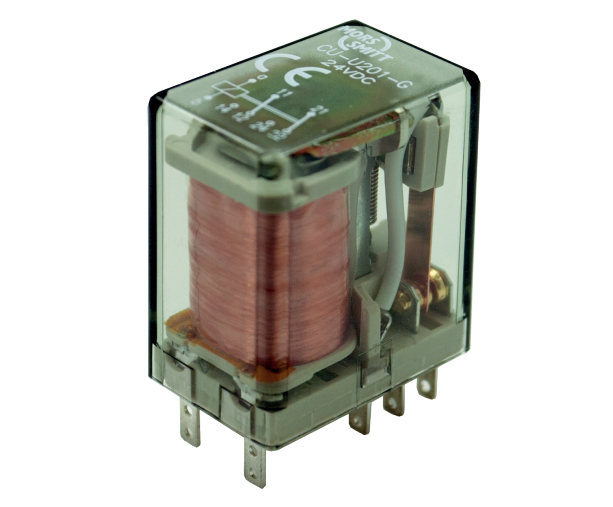

CU-D series, miniature instantaneous relays

Summary

CU-D relays, 1C/O + 1 N/O (weld no transfer), 6A, DC coil

Heavy duty miniature power relays for demanding applications, switching of AC&DC voltages, resistive and/or inductive loads. Equippedwith weld no transfer contacts.
  • Plug in (CU) or PCB (CP)
  • Miniature power relay
  • 1C/O + 1 N/O contact
  • DC coil
  • Coil voltages 6...48VDC
  • Flash barriers
  • Cadmium free contacts
  • Equipped with keying
