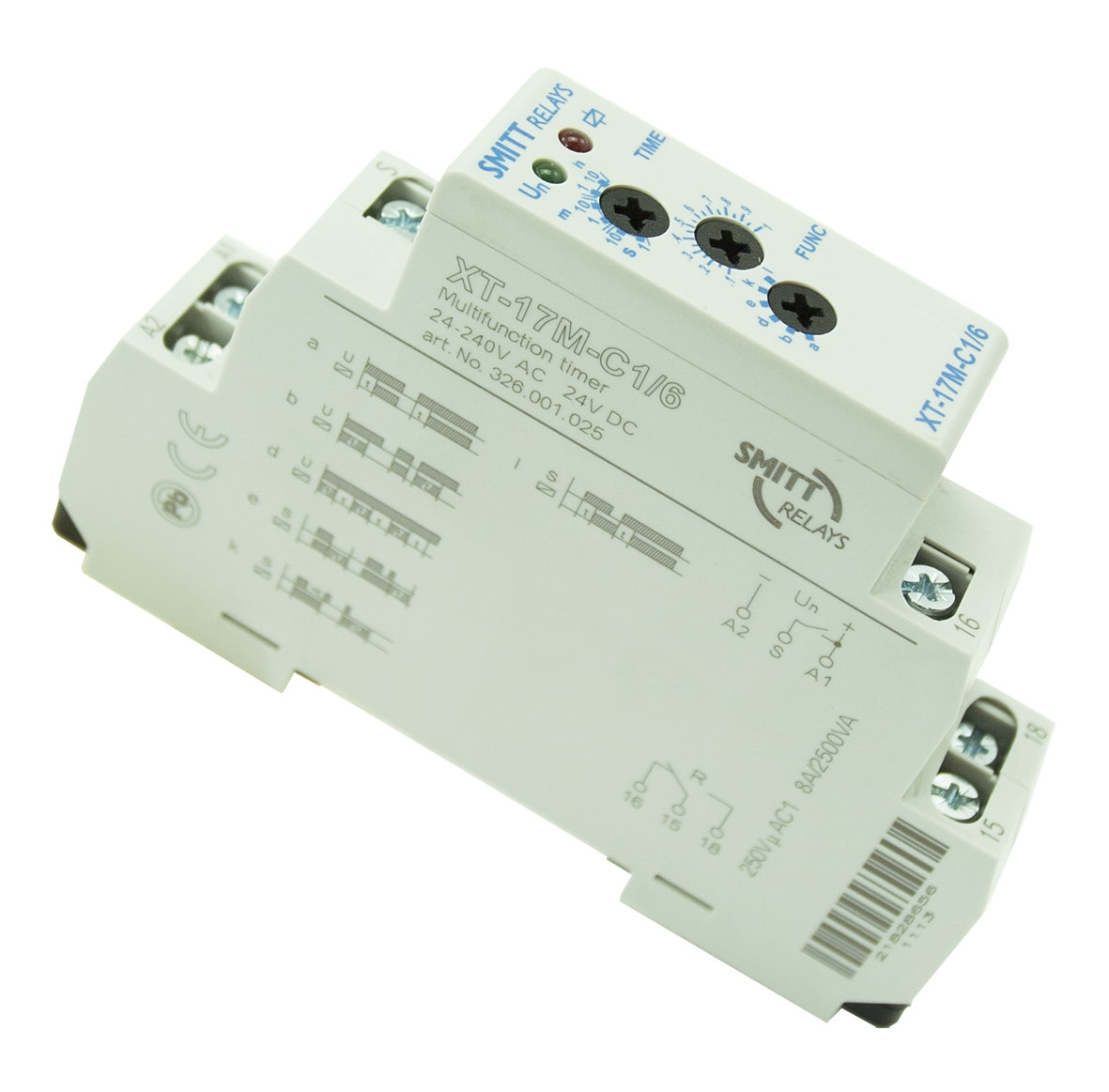

XT-17M-C1/6, multifunction

XT-17M-C1/6, multifunction

Multifunction time relay equipped with 6 selectable functions, adjustable time delays and universal supply voltage. A few functions of the relay can be controlled remotely via the signaling contact (S).

6 functions

• Delay-on
• Delay-off
• Recycler starting on
• Delay-on after break of S contact
• Delay-on / off
• Impulse relay with delay

Features

• Adjustable time delay 0.1 s...10 h
• Universal supply voltage 24...240 VAC / 24 VDC
• 1 changeover contact 8 A
• Screw connection
• LED indication
• Suitable for 35 mm rail mounting

Ordering code

• XT-17M-C1/6 326001025
