Current Clamps

NI 19 Plus Current Clamp

626005052
Summary

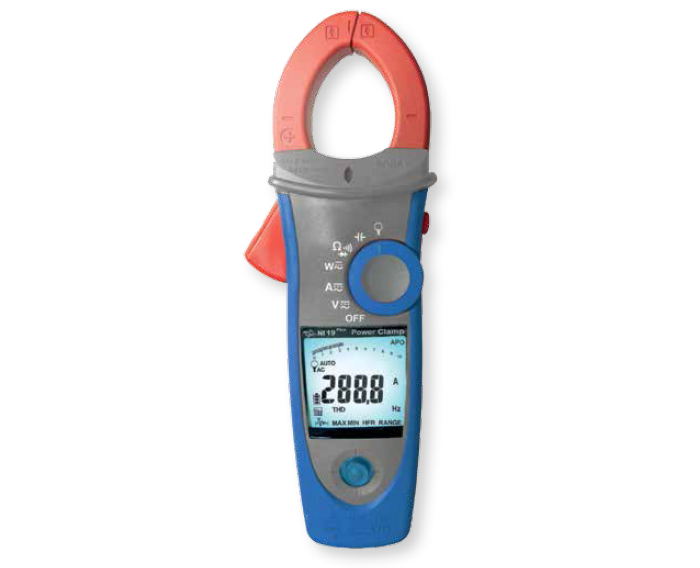

The NI 19PLUS is a sturdy, high quality multifunctional True RMS current clamp. The clamp can measure up to 600 AAC/DC and 1000 VAC/VDC.

Other functionalities like power factor, power (Watt) and phase rotation complete the NI 19PLUS as the most allround clamp in the range. The fact that the NI 19PLUS can measure both AC and DC power, makes the clamp very suitable for measuring solar PV-systems.

In combination with the EazyFlex current clamp adapter the measuring range is increased to 3000 AAC.

Features

  • True RMS
  • AC/DC voltage
  • AC/DC current
  • Non contact voltage detection (VoltSense)
  • Resistance, capacity, frequency
  • Continuity
  • Total harmonic distortion
  • Inrush current
  • Power factor
  • Phase rotation
  • Backlight
  • Led illuminance when clamping

Specifications

Functions Max. range Accuracy
Voltage 1000 VAC
1000 VDC
+ 1.0 % + 5d
+ 0.7 % + 2d
Current 600 AAC/DC + 1.5 % + 5d
Frequency 10 kHz + 0.5 % + 3d
Resistance 100 kΩ + 1.0 % + 5d
Capacity
Affective reading 600 kW A, error x V reading +
V, error x A, reading
General
Max. conductor seize 37 mm
Max. jaw opening 45 mm
Display resolution 10.000d
Overvoltage category CAT IV 600 V / CAT III 1000 V
Standard EN 61010-1
Supply 1x 9 V battery
Dimensions 242 x 75 x 50.5 mm
Weight 435 g (incl. battery)

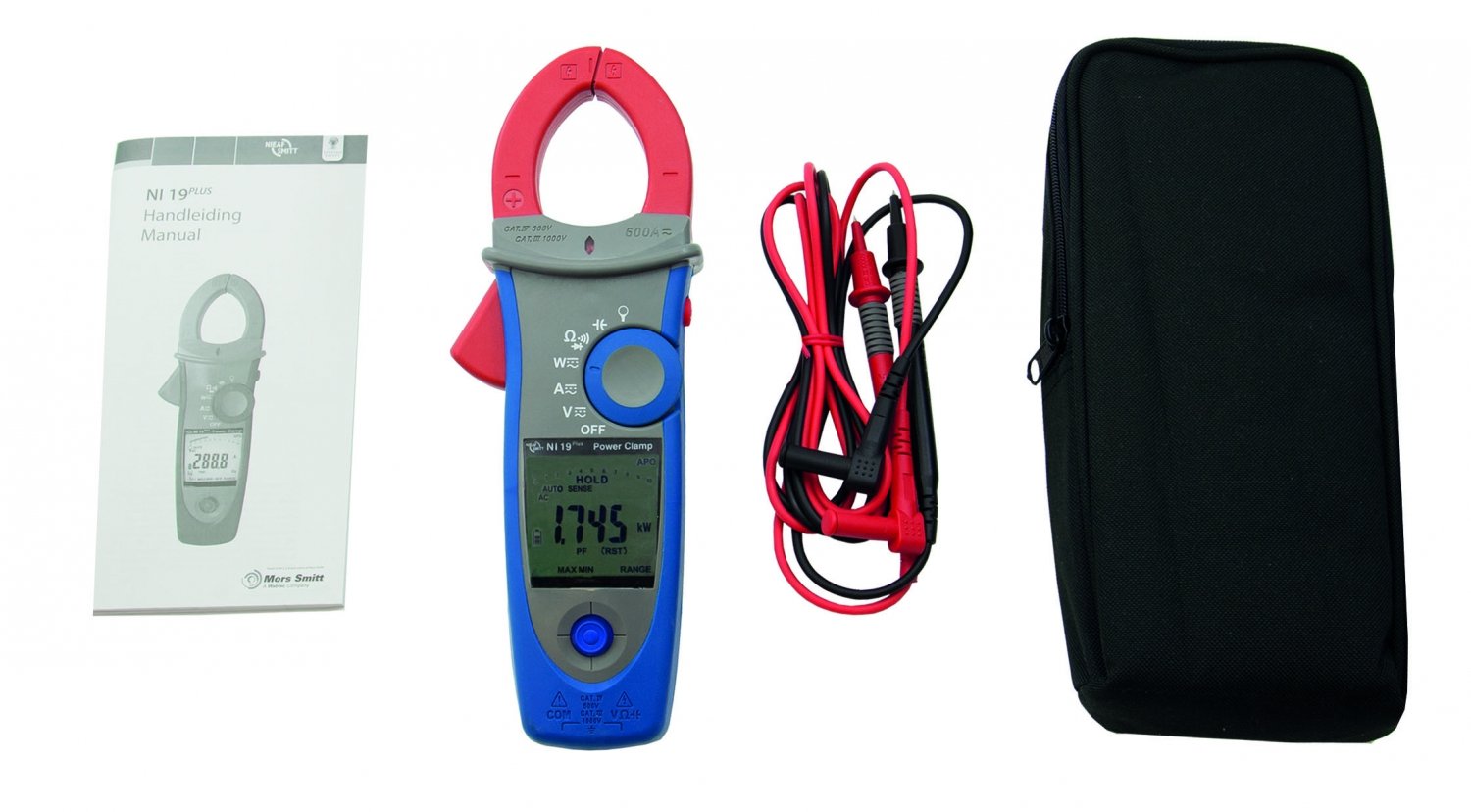

Including Test leads, bag, manual, battery
