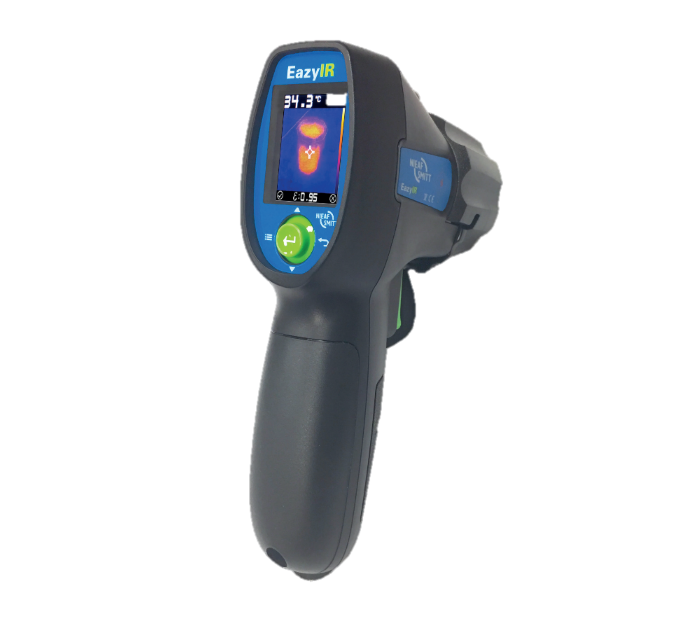

EazyIR Infrared thermometer

626000739
Summary
The EazyIR is the ideal tool for detecting hotspots, heat patterns and accurate and contactless measuring of temperature. The ‘point and shoot’ principle makes the EazyIR handy for quick and easy detection and for analyzing a temperature deviation.

Images are stored on the (included) SD-card and can be transferred to a computer for reports etc.

Because of the simplicity of use, robust design and the large temperature range, the EazyIR is the right tool for anyone who is regularly confronted with temperature issues. Examples are:

Features

  • Ergonomic design
  • High optical resolution of 30:1 for accurate temperature measurement
  • Easy operation via 1 navigation button
  • Precision laser pointer with spot diameter indication
  • Can be mounted on a tripod
  • Short start-up time
  • Temperature range from -30 ° C to 650 ° C
  • Readout in ° C or ° F
  • Adjustable color palette (Rainbow, ‘Hot iron’ and Black and white)
  • Battery indicator
  • Storage on SD card (included)
  • LED for measurments in poorly lit areas
  • UV LED for leak detection

Specifications

Functions Range
Temperature -30 °C...+650 °C
Resolution 0.1 °C
Emissivity correction Adjustable 0.1...1.0 in steps of 0.01
Optical resolution 30:1
Accuracy + 1.5 °C of + 1.5 %
Display Colour 1.7 inch 128 x 160 pixels
Field of view 30° x 30°
Spectral range 8 μm...14μm
Minimal focus 30 cm
Thermal sensitivity 150 mK
Resolution 128 x 128°
Range
Detector IR array
Laser pointer Class II laser with spot indicator
IP protection IP 54
Supply 3x AA batteries (cap. 16 uur)
Dimensions 183 x 103 x 59 mm
Weight 300 g
Including Micro SD-card, USB-cable, software, manual, batteries
