Hall effect sensors

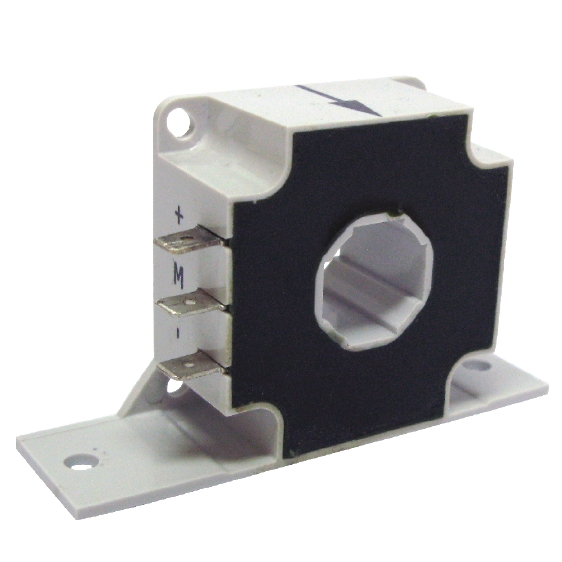

MSA100 - Hall effect transducer
Summary
Application
The Mors Smitt transducers are used to measure high currents in rolling stock and track side applications. High currents are converted lineair to low power signals.
Description
The transducers are based on compensating the magnetic field by a closed loop system. The MSA100 is used for the measurement of AC and DC currents with high galvanic isolation between the current carrying conductor and output of the sensor. The current transducer can handle pulsed currents.The MSA100 Series is especially designed for secure measuring of a permanent current up to 100A. The current measuring range covers a bandwidth from -200 A...200 A.
Features
-
Specially designed for railway applications
-
Closed loop (compensated)
-
High dielectric strenght
-
Precise linearity
-
Precise accuracy
-
High dynamic response
-
No foucault losses in the magnetic circuit
-
EMC shielding (optional)
-
Wide temperature range, -50 ºC..+85 ºC
Railway Compliancy
All our hall effect sensors are designed according to railway regulations:
-
EN 50155 Railway application
-
electronic equipment used in rollingstock
-
IEC 61373 Rolling stock equipment Shock and vibration test
-
NF F16-101/102 Fire behaviour - Railway rolling stock
-
IEC 60068-2-11 Environmental testing: Salt mist - Test ka - 96 hours
