D4-U200 relay module - 4 pole

Name: D4-U200 relay module - 4 pole
Brand: Own brand
Availability: InStock

Summary

Description

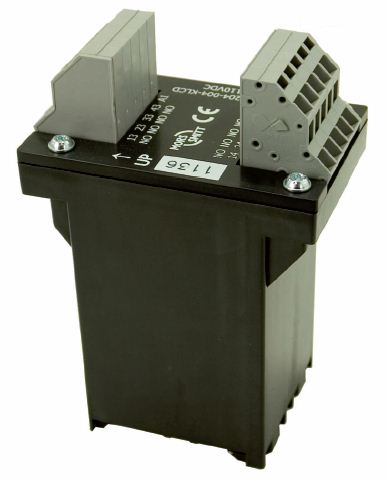

The D4-U200 relay module is a form, fit and function solution to replace all kind of contactors with a maximum of 4 contacts. The module consists of a 4-pole relay, spring clamp terminal connections and a housing to fasten the module.

By applying the D4-U200 relay module all specifications of the standard D-U200 relay are valid. The spring clamp connections are made on the front panel by two 5-pole connectors for the contacts and for the relay coil. There are 2 connection points per contact. Several contact combinations are possible such as 0 N/C and 4 N/O, 1 N/C and 3 N/O, 2 N/C and 2 N/O.

Other contact configuration and numbering on request. Thanks to its small dimensions the module can be fitted in most places where standard contactors are used. The relay module is standard equipped with a LED. The module is non polarity sensitive by use of a rectifier bridge.

The housing is suitable for wall mounting or rail mounting, due to its 35 mm rail connection. It is specially designed for space saving applications.

Application

A typical use of the D4-U200 relay module is in a dusty environment where
the open construction of a contactor is causing contact problems (dust is
gathered between the contacts of the contactor).

Features

Ultra compact space saving 4-pole relay module
Easy replacement of 4-pole contactors
Module consists of 4-pole relay and housing
Various contact combinations possible
Many 4-pole Mors Smitt relay configurations are possible
Non polarity sensitive
Heavy duty, high VDC switching
Spring clamp connections
Terminals at front side
Surface / wall and 35 mm rail mounting

Benefits

Space saving
Cost saving
Several mounting options
Dust proof
No maintenance
Low life cycle cost
Long term availability

Railway compliancy

EN 50155 Railway application Electronic equipment used on rolling stock
IEC 60077 Electronic equipment for rolling stock in railway applications
IEC 60947 Low voltage switch gear and control gear
IEC 61373 Rolling stock equipment - Shock and vibration test
IEC 60571 Electronic equipment used on railway vehicles
NF F16-101/102, TS 45545-2 Fire behaviour - Railway rolling stock
