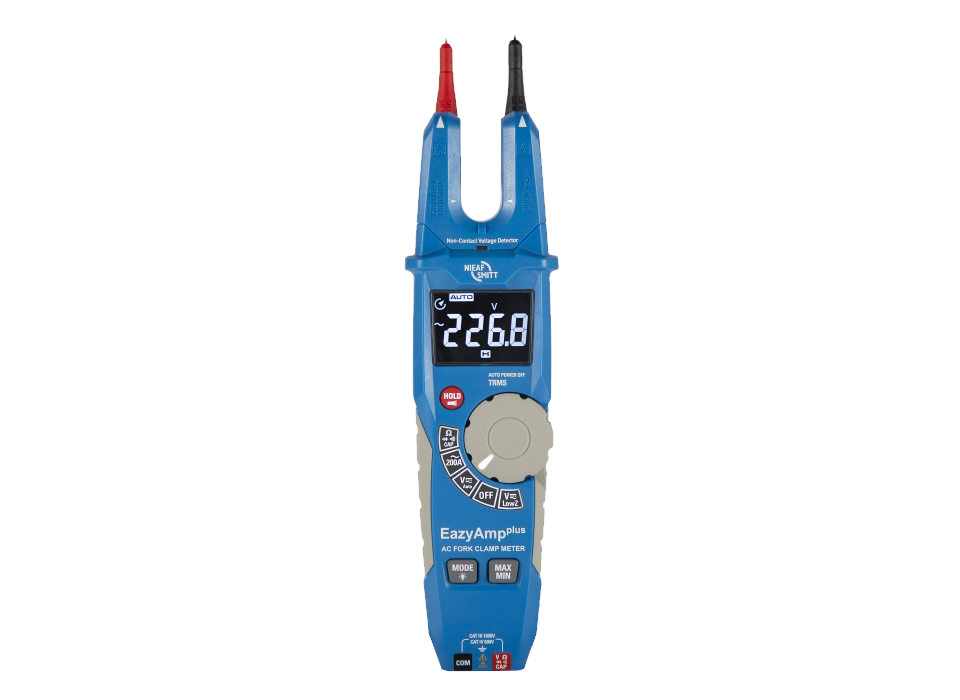

EazyAmpPLUS Current clamp

626000863
Summary

True RMS current clamp with open jaw

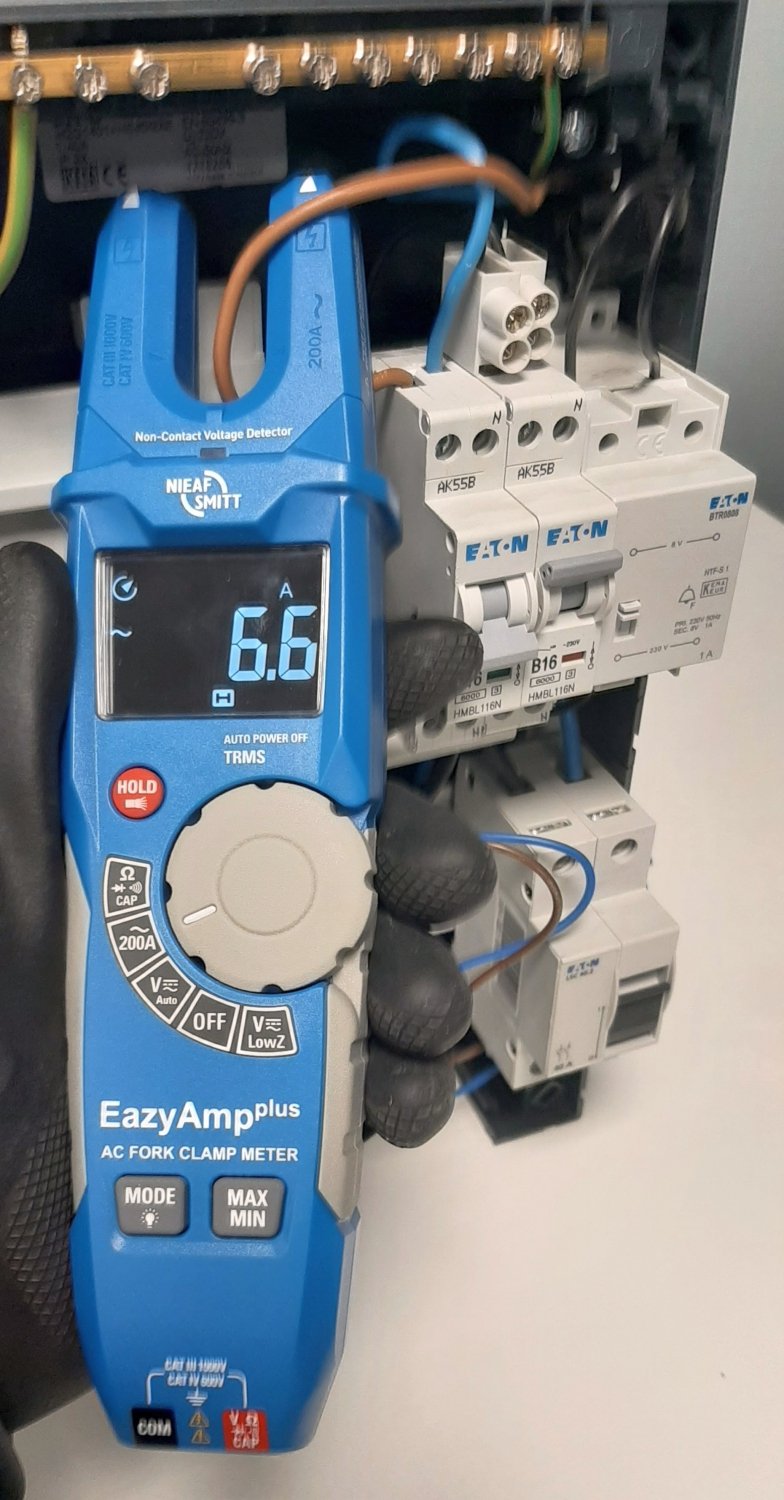

The EazyAmpPLUS is an user friendly current clamp with open jaw, to measure currents up to 200 A quick and safe.

The meter is equipped with a special screen and backlight to be able to measure well in less lit places. Also, the tester has a special low impedance stand to stray voltages to suppress.

The EazyAmpPLUS also measures AC/DC voltage, resistance, capacity, diode and continuity.

Features

  • AC current up to 200 A
  • AC/DC voltage up to 1000 V
  • LowZ voltage measurement (low impedance)
  • Resistance and capacity
  • Continuity / diode test
  • 'Negative' display and illuminated buttons
  • Max-min mode
  • Measuring point illumination

 Specifications

Functions Maximum range Accuracy
Voltage 1000 VAC
1000 VDC
± 1.2 % + 5d
± 0.9 % + 5d
Current 200 AAC ± 3.0 % + 5d
Resistance 60 MΩ ± 1.0 % + 4d
Capacity 4000uF ± 3.0 % + 5d
General
Display resolution 6000d
Max. jaw opening 16 mm
Supply 2x 1.5 V batteries (AA)
Overvoltage category CAT III 1000 V / CAT IV 600 V
Standard EN 61010-1 (CE)
Dimensions 230 x 64 x 43 mm
Weight 230 g

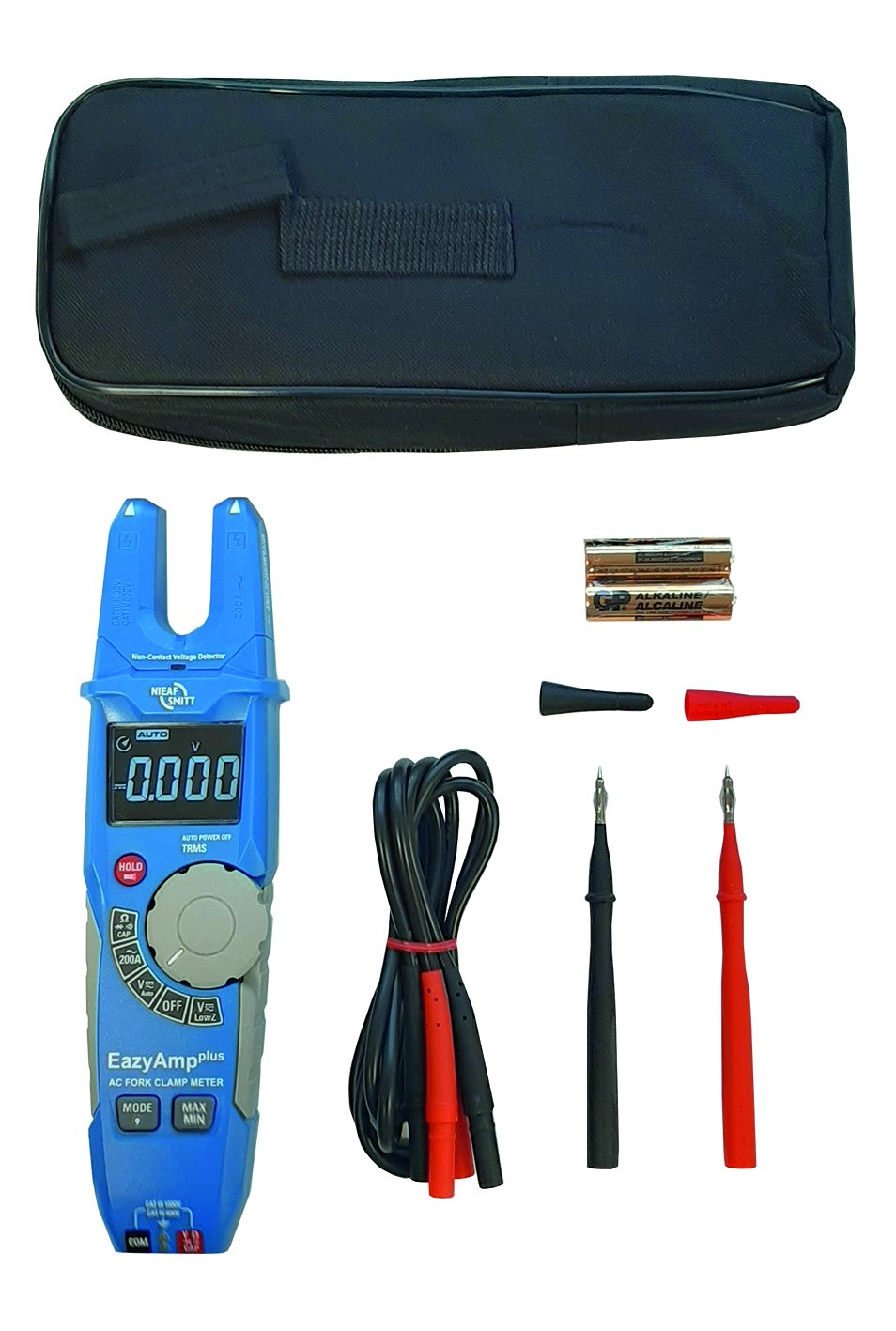

Including Test leads, test probes, bag, batteries, manual
