Current Clamps

NI 10R Compact Clamp

626005057
Summary

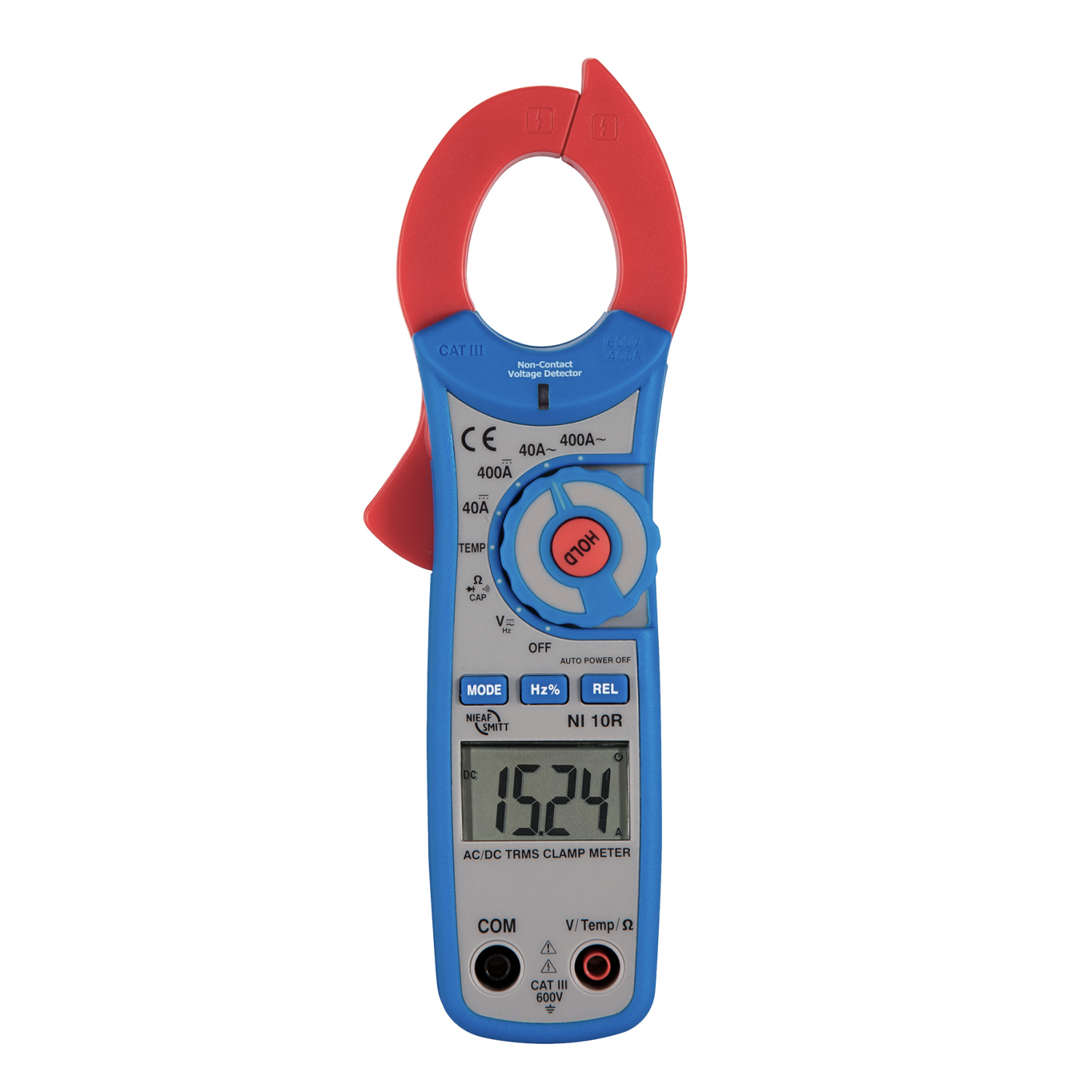

The NI 10R is an ergonomically shaped clamp meter. It is suitable for measuring AC and DC currents (up to 400 A), AC and DC voltages, resistances, capacitance and frequencies. The temperature can also be measured.

The measured value is clearly displayed on the LCD display.

Characteristics

  • True RMS
  • AC/DC voltage
  • AC/DC current
  • Resistance, Capacitance and Frequency Measurement
  • Passage
  • Temperature
  • Display hold

Specifications

Functions Maximum range Accuracy
Voltage 600 VAC
600 VDC
± 1.5 % + 5d
± 1.5 % + 2d
Current 400 AAC
400 ADC
± 2.8 % + 5d
± 2.8 % + 5d
Frequency 10 kHz ± 1.2 % + 2d
Resistance 40 MΩ ± 1.5 % + 2d
Capacitance 4 mF ± 3.0 % + 5d
Temperature 760 ºC ± 3.0 % + 5d
Duty cycle 99.0 % ± 3.0 % + 2d
General
Max. conductor diameter 27 mm
Max. jaw opening 30 mm
Screen resolution 3999d
Overvoltage category CAT III 600 V
Standard EN 61010-1
Power supply 2x AAA 1.5 V batteries
Dimensions 198 x 66 x 36 mm
Weight 230 g (incl. battery)

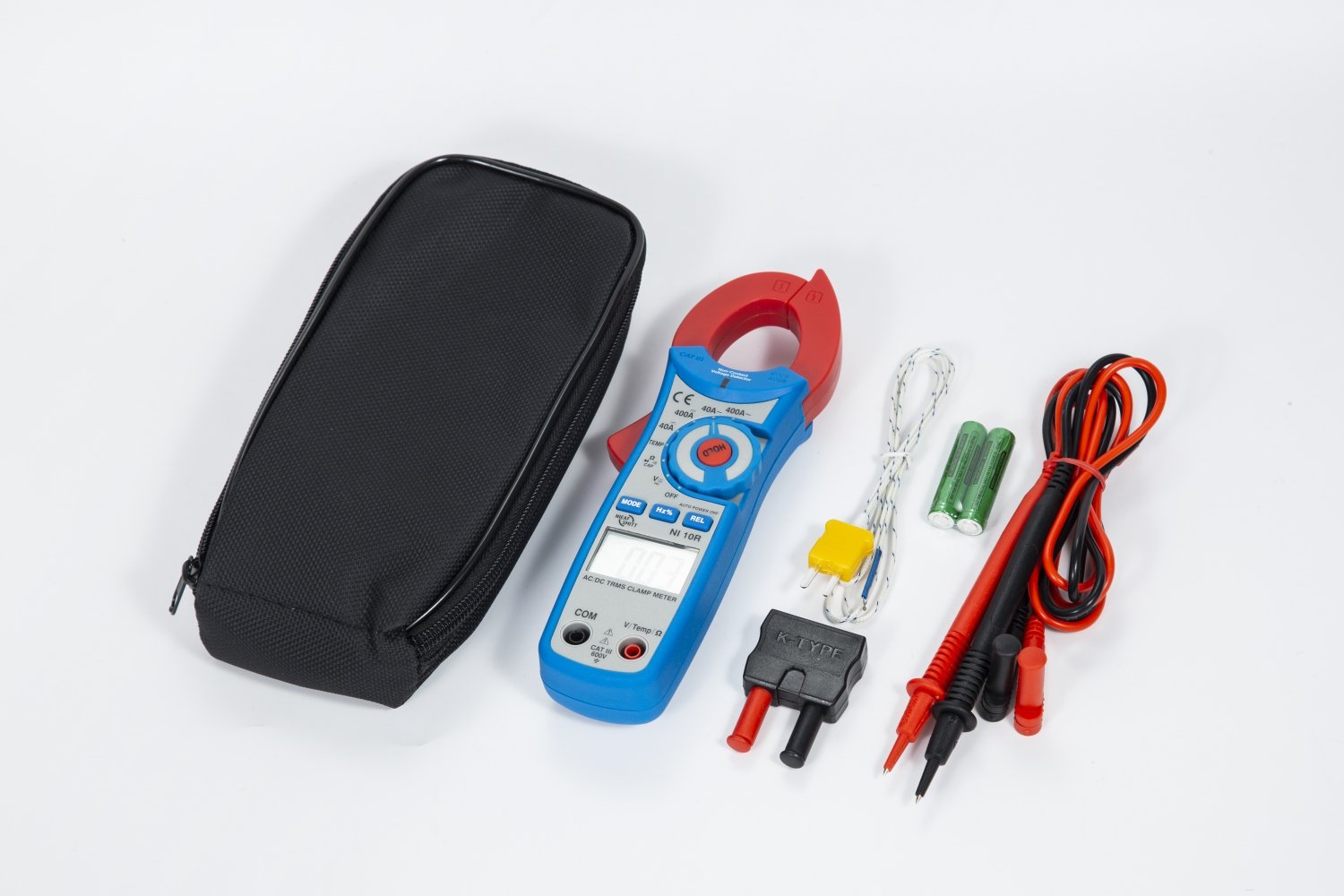

Included Test Leads, Type K Thermocouple, Storage Bag, Manual, Batteries
