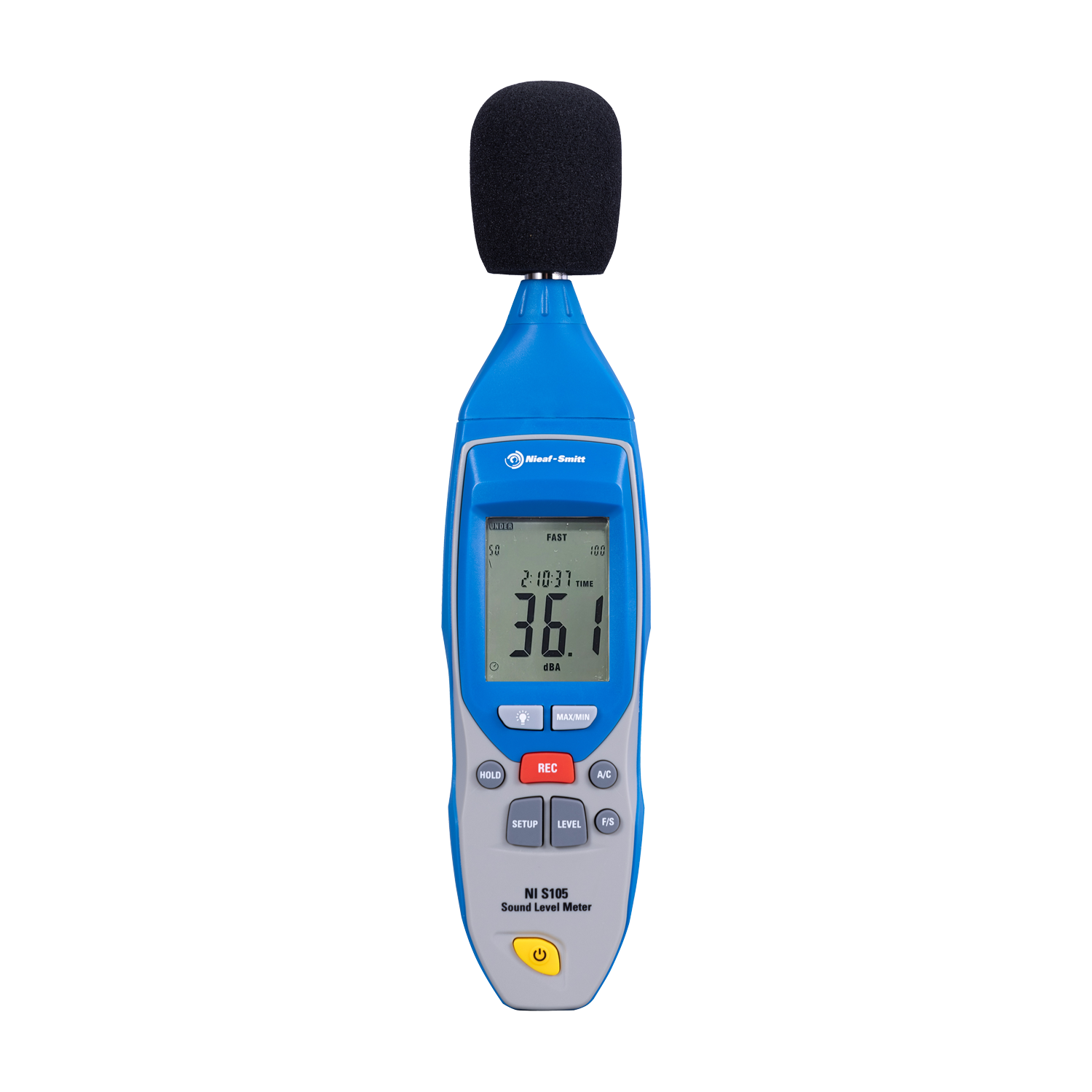

NI-S105 Sound Level Meter
626001114Summary
The NI S105 Sound Level Meter is designed for noise project; quality control; illness prevention and cure and all kinds of environmental sounds measurement.
It is applied to the sounds measurement at factory, school, office, traffic access and household, etc.
Features
- MAX & MIN measurements
- Over range display
- Under range display
- A & C Weighting
- FAST & SLOW response
Specifications
| Function | Range | Accuracy |
| Soundlevel | LO: 30 ~ 80 dB ME: 50 ~ 100 dB HI: 80 ! 130 dB AUTO: 30 ~ 130dB |
+ 1.4 dB (ref 94 dB @ 1 kHz) |
| General | ||
| Auto power off | 15 min | |
| Frequency | A/C | |
| Resolution | 0.1 dB | |
| Standards | IEC61672 -1 CLASS2 | |
| Supply | 1x 9 V battery | |
| Dimensions | 278 x 76 x 50 mm | |
| Weight | 350 g | |

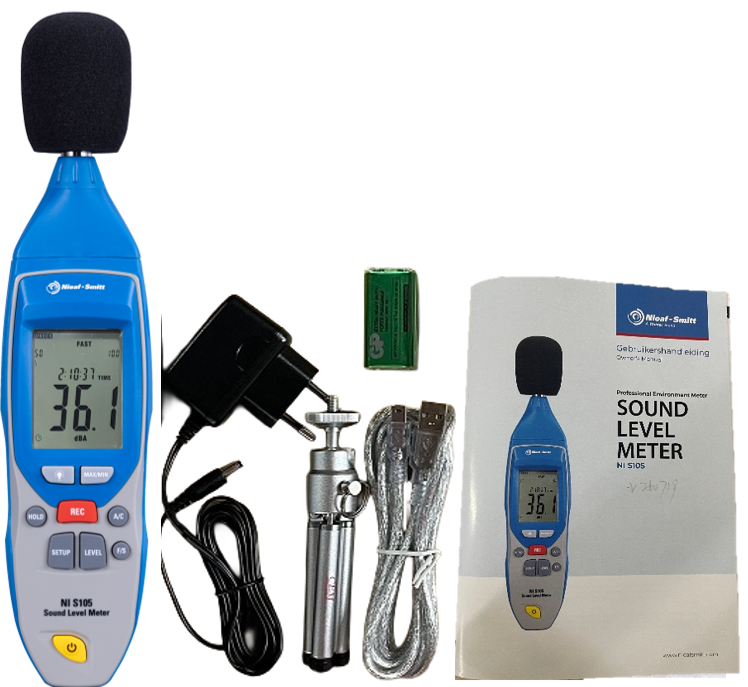

| Including | Battery, Manual, Screwdriver, Tripod | |
