Manual - NI L205


Environmeters

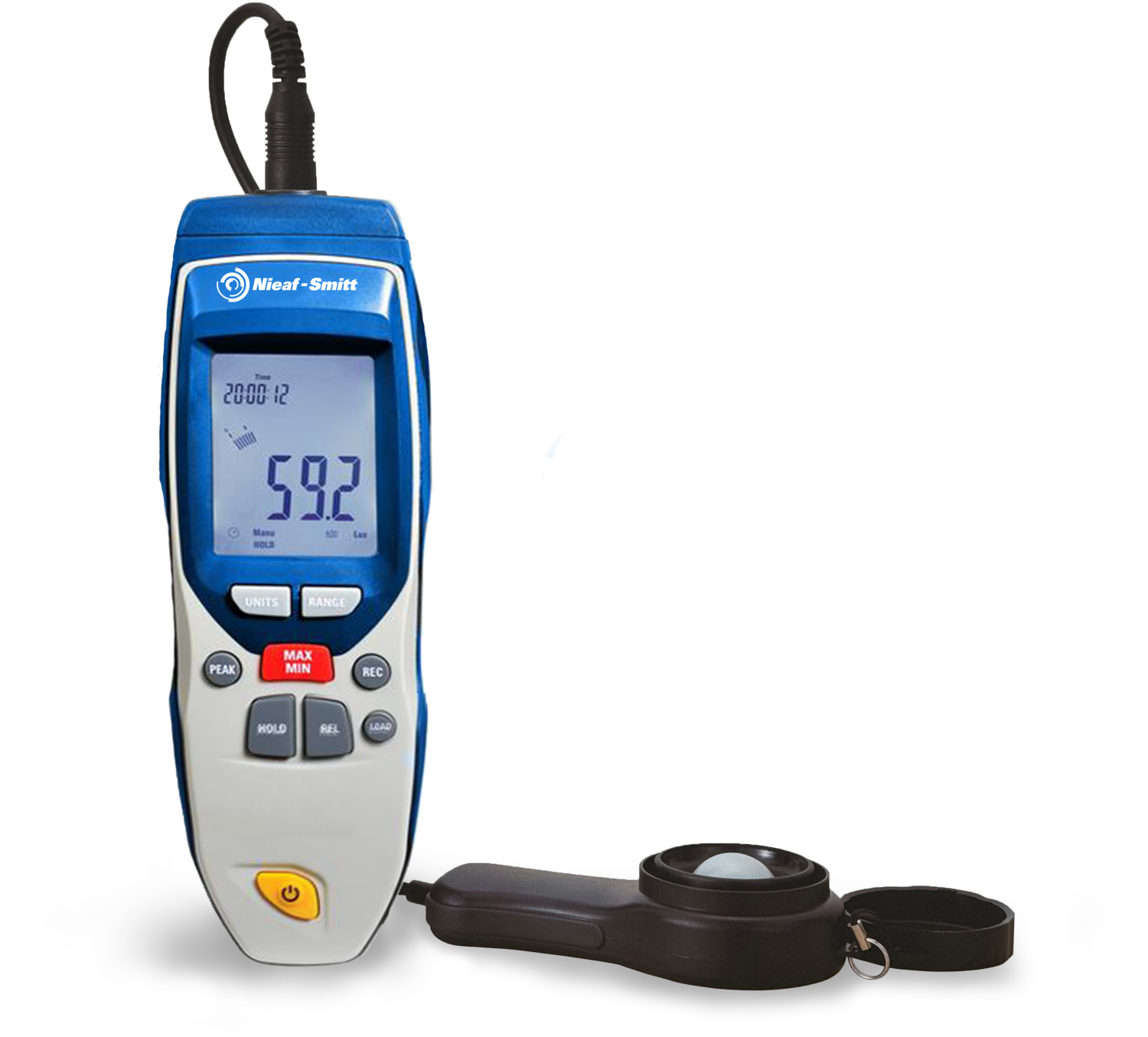

NI L205 Led Light Meter

626000878
Summary

Measures light from visible luminaries equipped with white light LED, fluorescent, metal halide, high-pressure sodium and incandescent sources.

The NI L205 LED lux meter guarantees accurate lux measurements, especially when installing LEDs. If you work with LED lighting or require precise measurements in spaces illuminated by LEDs, the NI L205 provides more accurate results than a basic light meter.

Features

  • Max. bereik 400.000 Lux of 40.000 Fc
  • Max hold
  • Auto power off and power off function
  • Measuring lights source: LED white light and all visible light.
  • Data hold

Specifications

Function Range Accuracy
Luminance 0...400.000 Lux /
0...40.000 Fc
+ 3 %
General
Sampling rate 2.5 times per second
Standards According to JIS C1609: 1993 and CNS 5519 general A class Specifications.
Standards 1x 9 V battery
Dimensions 185 x 65 x 45 mm
Weight 248 g

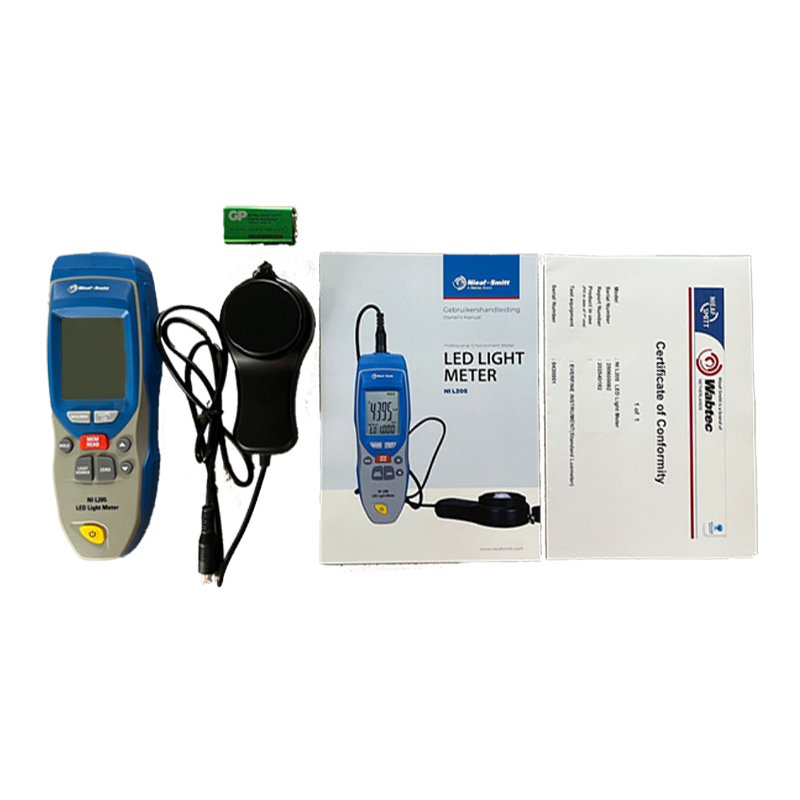

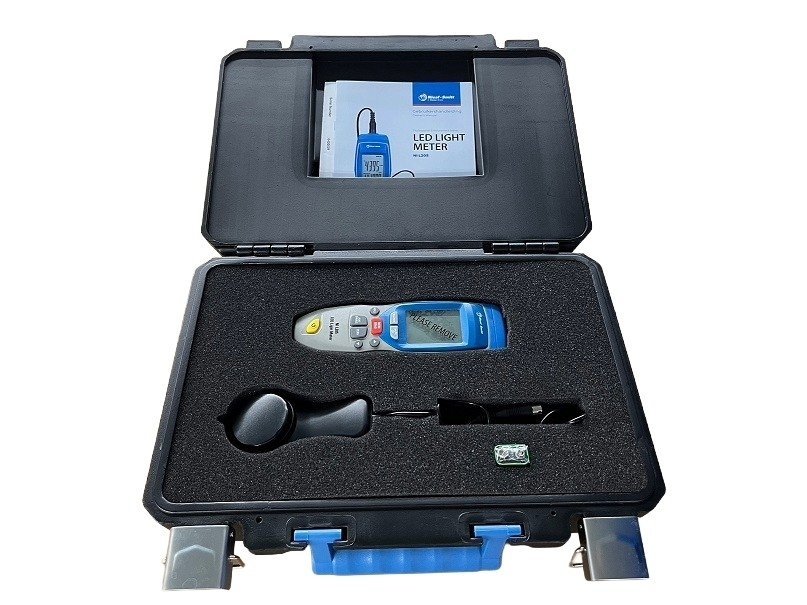

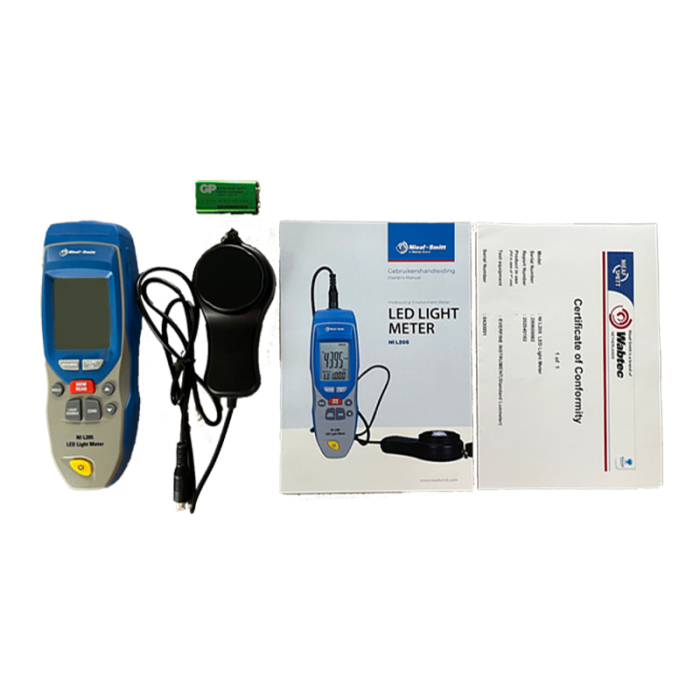

Including case, manual, battery
