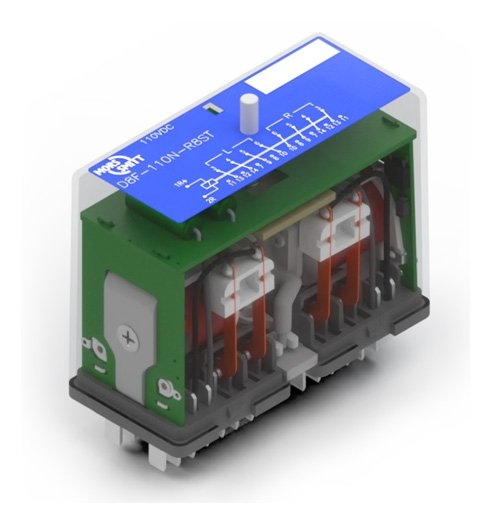

D8 FR8 instantaneous relay

Description

D-relay with fast switching contacts: maximum pull-in time
8 ms for all eight change-over contacts. For DC coil voltages
only. To avoid unwanted tripping, no normally open contact
will make below 60% of the nominal voltage.
Input voltage must be a rising edge with
- minimum slew rate: 1 V/ms
- minimum time: 10 ms

Application

Suitable for energy controlling systems or any critical
application where the reduction of total switching time
is important.
• Tripping functions and applications where the request
is high breaking capacity with fast actuation.
• Contact multiplication in command and controlling
applications with minimum delay.
• Application with low duty loads control
• Can find usage in substations, power plants and
industry
• Alarm signalling

Features

• Instantaneous (monostable) relay
• Fast tripping: < 8 ms
• Compact plug-in design
• Back EMF suppression diode on trip inputs
• Clear contact position indicator:
  Mechanical
• Less than 2.7W power consumption
• after switching
• High burden option

Compliancy

• EN 60068
• IEC 60529
