Safely measure high currents and voltages


Hall Effect Transducers

Safely measure high currents and voltages

Mors Smitt transducers are specially designed to safely measure high currents and voltages in rolling stock and trackside equipment.

Features

  • Specially designed for railway applications
  • Closed loop (compensated)
  • High dielectric strenght
  • Very high accuracy
  • High dynamic response
  • No foucault losses in the magnetic circuit
  • EMC shielding (optional)
  • Wide temperature range,
  • -50 ºC..+85 ºC
  • Railway compliant

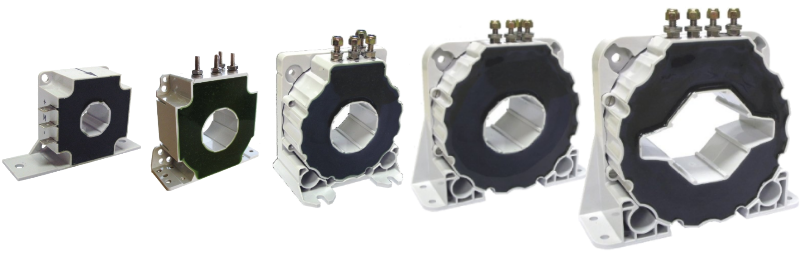

MSA Range

Current measurement
  • Measurement of AC and DC currents
  • High galvanic isolation
  • Can handle pulsed currents
  • Bandwidth from -2000 A...2000 A.

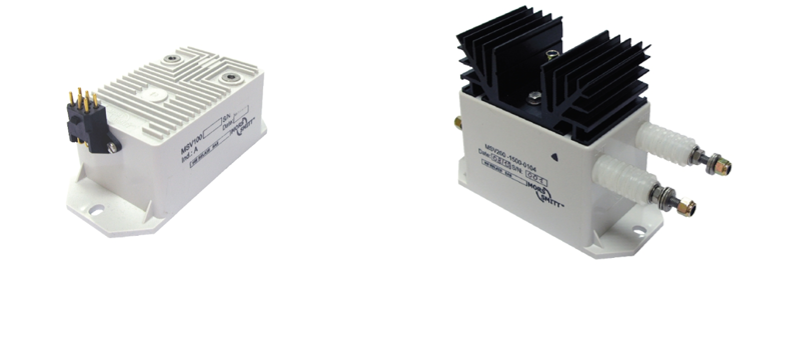

MSV range

Voltage measurement

  • Measurement of AC and DC voltages
  • High galvanic isolation
  • Can handle pulsed voltages
  • Bandwidth from -5000 V...5000 V.

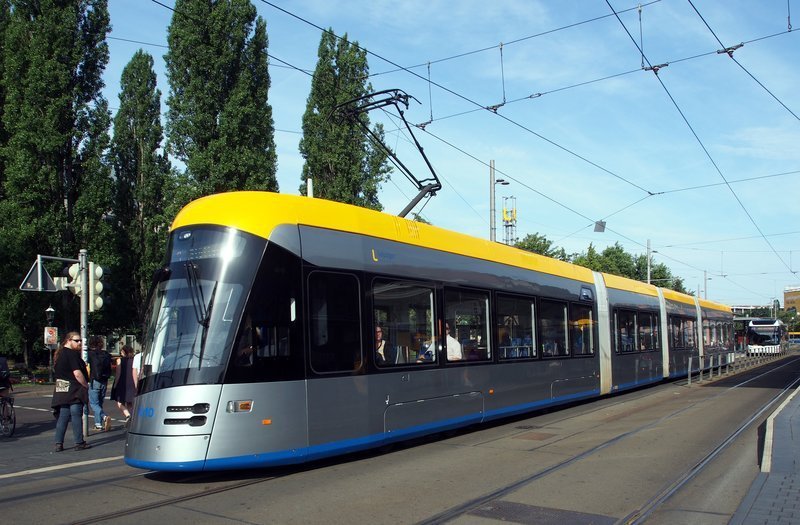

Project reference
SOLARIS Tramino, Leipzig


Mors Smitt has designed and delivered a monitoring system for the SOLARIS Tramino tram in Leipzig. The solution is a combination of a current transducer in combination with a specially developed signal unit.
