35mm (DIN) rail sockets


35mm (DIN) rail sockets

Filter
35mm (DIN) rail sockets

V10 relay socket + A109 DIN rail clip

  • Relay socket for C-series power relays
  • Surface/wall mounting
  • Screw terminals, wires up to 2,5mm2
  • Suitable for 35mm (DIN) rail mounting (with A109 clip)
35mm (DIN) rail sockets

V13 relay socket + A109 DIN rail clip

  • Relay socket for CU-V, CU-U power relays
  • Surface/wall mounting, with LED and internal back EMF diode. Screw terminals, wires up to 2,5mm2
  • No contacts 11 & 21 (for CU-V, CU-U)...
35mm (DIN) rail sockets

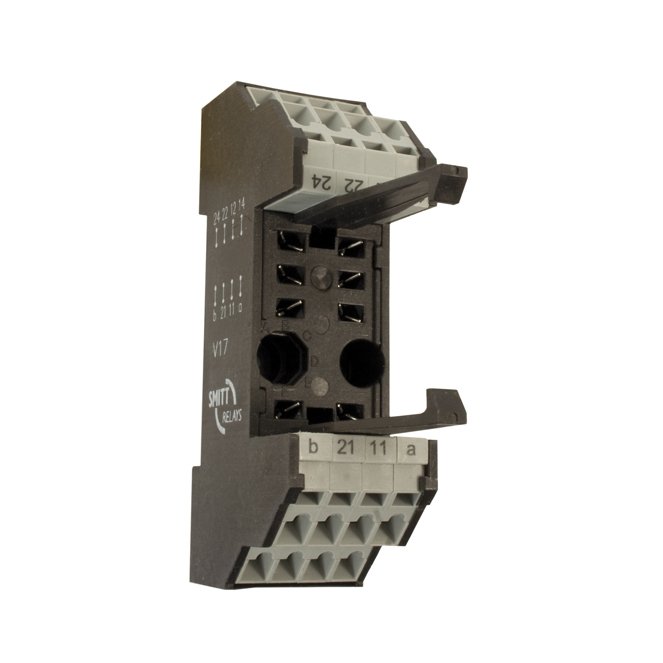

V17 relay socket

338001400
  • Relay socket for CU-series power relays
  • 35mm (DIN) rail mounting
  • Spring terminals
35mm (DIN) rail sockets

V17-D relay socket

338001401
  • Relay socket for CU-series power relays
  • 35mm (DIN) rail mounting
  • Spring terminals
  • Integrated back EMF diode
35mm (DIN) rail sockets

V21 relay socket

338000200
  • Compact relay socket for D-series power relays
  • Rail mounting (35mm/DIN)
  • Screw terminals, bush connections
  • Wires up to 2,5mm2
35mm (DIN) rail sockets

V23BR relay socket

338000402
  • Relay socket for D-series power relays
  • Rail mounting (35 mm/DIN)
  • Screw terminals, extra large, wires up to 2,5 mm2
  • 9 mm wide terminal surface
35mm (DIN) rail sockets

V25 relay socket

  • Relay socket for D-series power relays
  • 35mm (DIN) rail mounting
  • Faston terminals (1x faston 6,8 x 0,8mm or 2x faston 2,8 x 0,8mm)
35mm (DIN) rail sockets

V91 relay socket

338001900
  • Compact relay socket for D8 & KDN-series power relays
  • Rail mounting (35mm/DIN)
  • Screw terminals, bush connections
  • Wires up to 2,5mm2
35mm (DIN) rail sockets

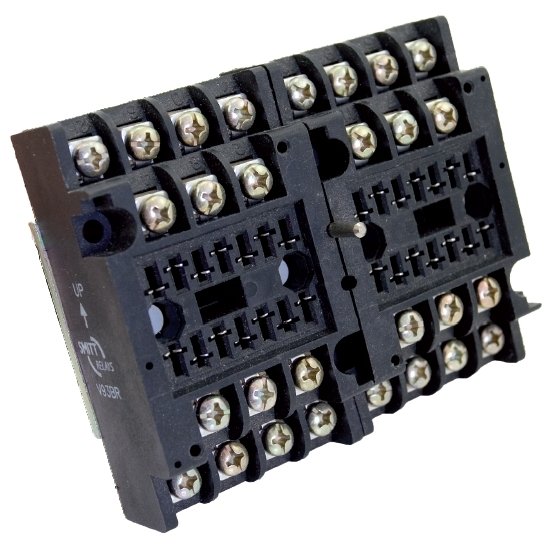

V93BR relay socket

  • Relay socket for D8 and KDN relays
  • 35 mm (DIN) rail mounting
  • Wires up to 2,5mm2
  • Screw terminals
35mm (DIN) rail sockets

V95 relay socket

  • Relay socket for D8 & KDN-series power relays
  • 35mm (DIN) rail mounting
  • Faston terminals (1x faston 6,8 x 0,8mm or 2x faston 2,8 x 0,8mm)
