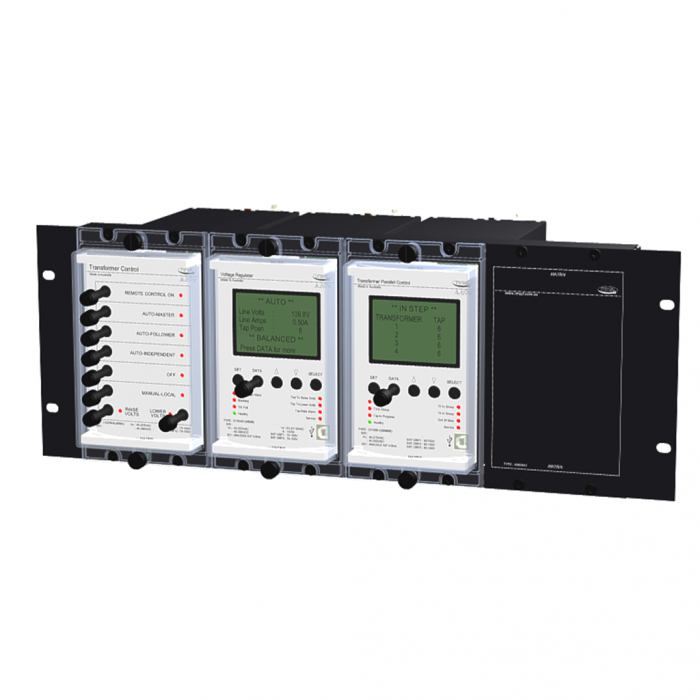

1M122 Transformer Parallel Control Scheme

  • Simple system wiring
  • Scaleable up to 4 transformers
  • Flexible control configuration et transformers
  • All standard uMATRIX features
  • Size 4M case
  • Made in Australia
Transformer Regulation

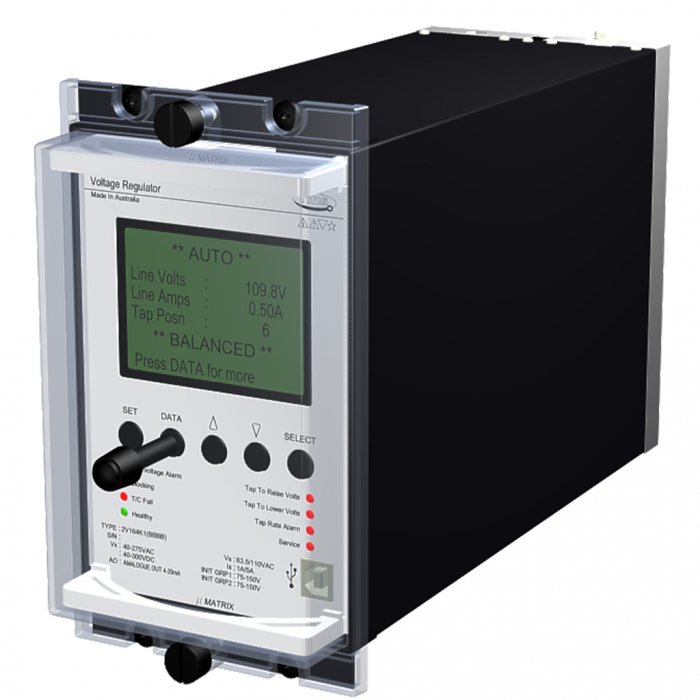

2V164-S Voltage Regulating & Tap Change Control Re…

  • uMATRIX PLATFORM
  • Large STN graphics LCD
  • System status LED indicators
  • Simple menu setting procedure
  • 40-300V DC aux. supply
  • 40-275V AC aux. supply
  • 20-70V DC aux. Optional
  • Self diagnosis & fail alarm
  • Size 4M case
  • Made in Australia
Transformer Regulation

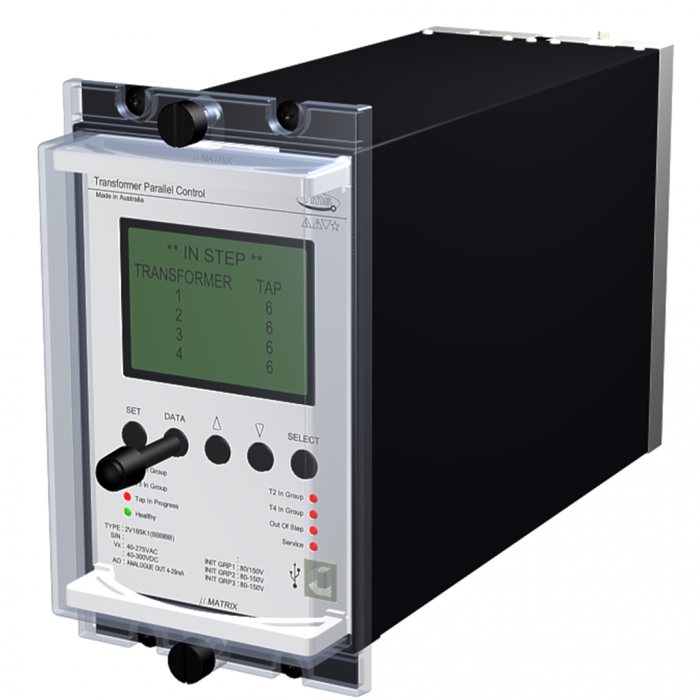

2V165-S Transformer Parallel Control Relay

  • Large back lit display panel
  • System status LED indicators
  • Simple menu setting procedure
  • Wide auxiliary supply range with fail alarm contact
  • Self diagnosis and fail alarm
  • Size 4M56-S draw out case
  • Made in Australia
Transformer Regulation

2V200 Tap Position Indicator (TPI) Voltage to Freq…

  • Suitable for interfacing to tap changers with binary or BCD TPI outputs
  • Suitable for application with voltage divider TPI circuits (Resistor values in the range 20 – 400 ohms may be employed)
  • 50V DC output drive circuit to improve contact whetting performance
  • Frequency output immune to line disturbance
  • Two core un-shielded cable between sender unit & 2V164
  • Isolated power supply
  • Plug in measuring module
  • Double insulated high impact polystyrol case
  • Termination socket included for surface mounting enabling front or rear connection with optional DIN rail mounting
  • Simple & robust construction
Transformer Regulation

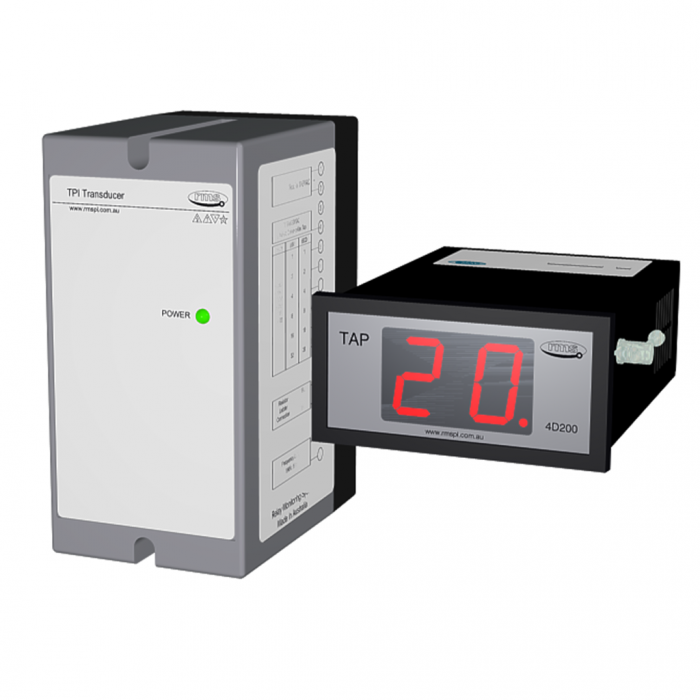

4D200 Tap Position Indicator (TPI) Display Module

  • Designed for interface with the RMS 2V200 TPI transducer
  • Optional BCD input interface
  • Optional BCD output signalling
  • Compact panel mount case
  • 12 DC auxiliary supply input for use with isolated auxiliary sully module
  • Simple & robust construction
  • Made in Australia
