Instantaneous relays (Obsolete)

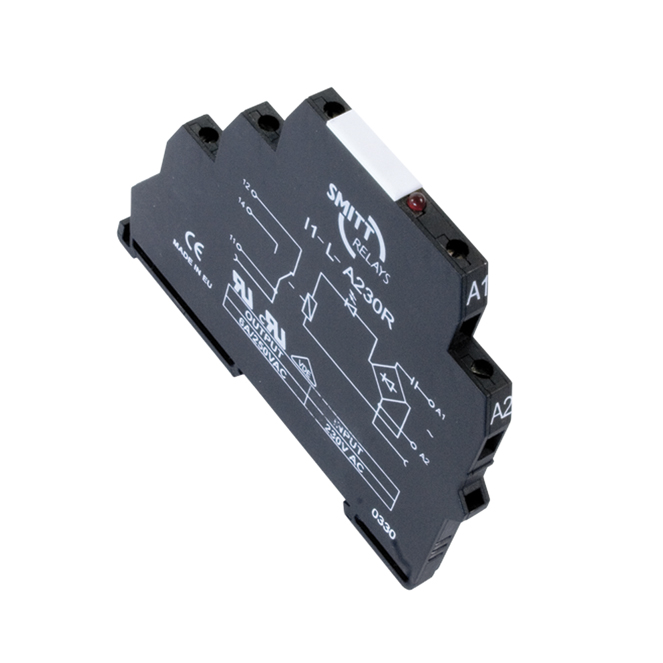

I1 series, interface relay

Summary

Interface relay, supplied with 1 changeover contact. Standard equipped with back EMF diode (for DC-coils) and LED-indication. • Various coil voltages • 1 changeover contact 6 A • AgNi contacts (AgNi/Au 0.2 μm optional) • Back EMF diode • 35 mm rail mounting


Ordering codes

  • I1-L-D012R 12 VDC
  • I1-L-D024R 24 VDC
  • I1-L-U024R 24 VAC/DC
  • I1-L-A230R 230 VAC
  • I1-L-U230R 230 VAC/DC
321000800
321000801
321000802
321000803
321000804



See detailed information and datasheet by clicking on the download button.
