Our high quality general purpose relays are applied mainly in industrial and power automation systems, signaling and protection systems and other control and electric drive systems. They are also suitable for more common controlling applications like building automation or HVAC systems.

The basic features of general purpose relays are:

  • Contact number: from 1 to 4
  • Rated contact switching currents up to 16 A, depending on the relay type
  • Versions with coil overvoltage suppression
  • Versions with flag indicators and manual relay test pushbuttons with the possibility of latching the normally open contacts closed
  • Mounting sockets for 35 mm rail or PCB soldering
  • Rail sockets equipped with screw terminals or spring terminals

The main products of Mors Smitt have been successfully applied for many years. Their reliability and quality have been acknowledged by the customers’ satisfaction.

Products:


Filter
Instantaneous relays (Obsolete)

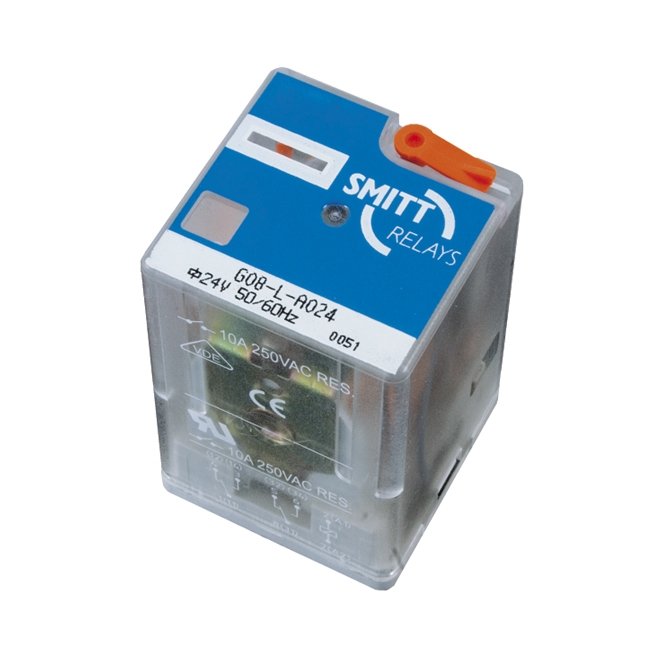

G08 series, universal relay

  • Various coil voltages
  • Manual test button
  • Mechanical position indicator
  • Optional LED-indicator & diode modules
  • Plug-in connection, octal (8) pinning
Instantaneous relays (Obsolete)

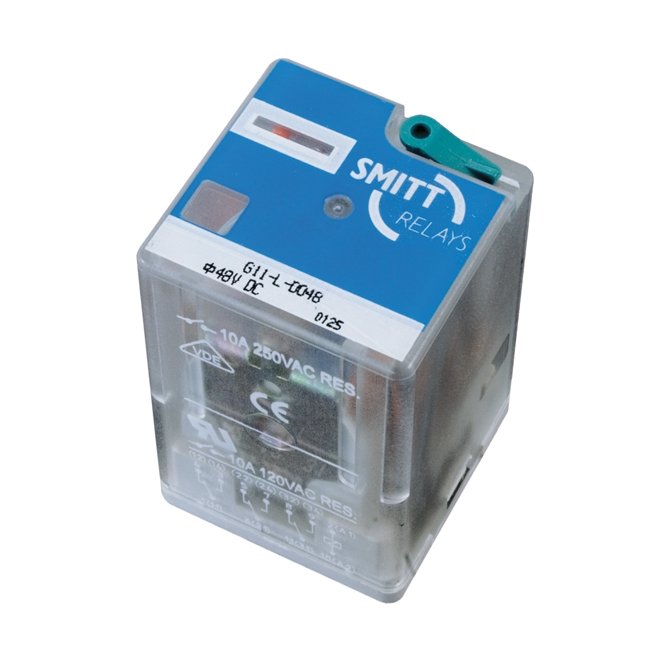

G11 series, universal 3-pole relay

Diverse modellen
  • Various coil voltages
  • Manual test button
  • Mechanical position indicator
  • Optional LED-indicator & diode modules
  • Plug-in connection, octal (11) pinning
Instantaneous relays (Obsolete)

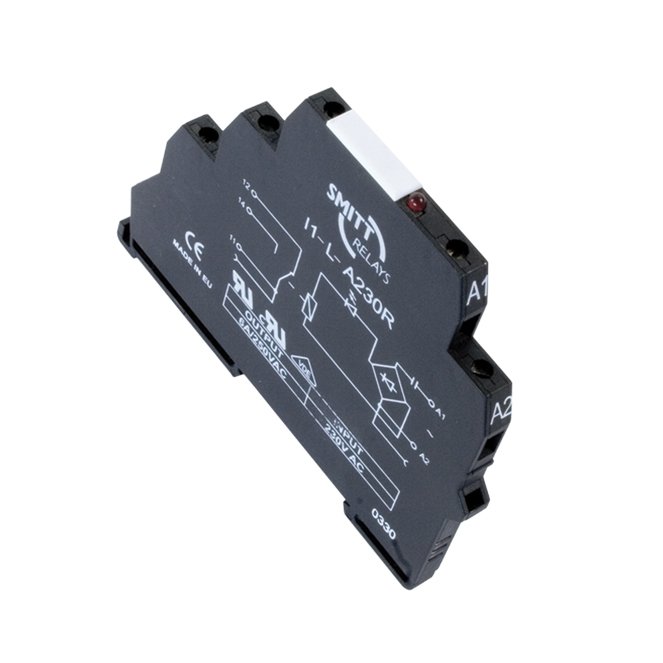

I1 series, interface relay

  • Various coil voltages
  • LED indication
  • Back EMF diode (for DC coils)
  • 6,2 mm wide
  • 35 mm rail mounting
Instantaneous relays (Obsolete)

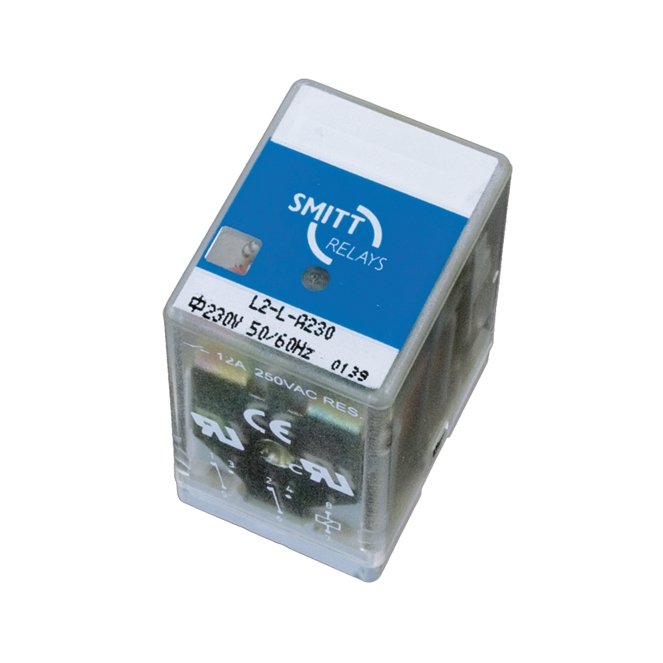

L2 series, plug-in universal relay

  • Various coil voltages
  • LED indication
  • Back EMF diode (for DC coils)
  • 21,1 mm wide
  • Plug-in connection, faston
Instantaneous relays (Obsolete)

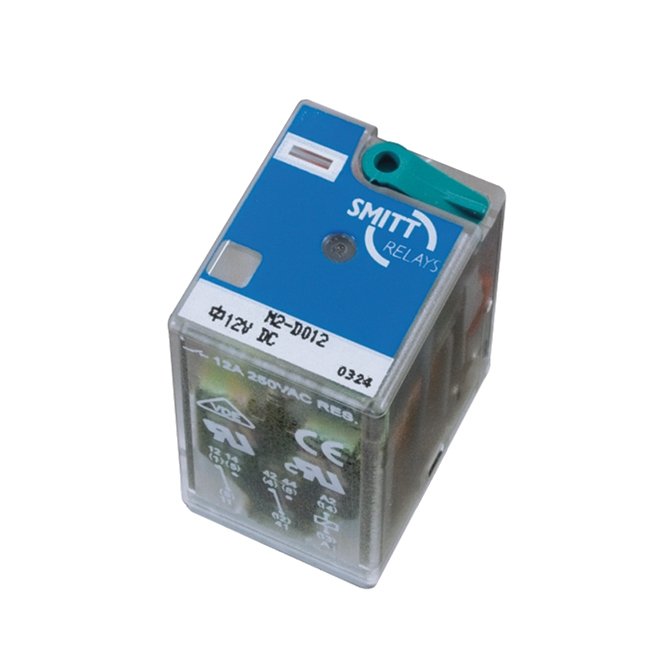

M2 series, plug-in Universal 2-pole relay

  • Various coil voltages
  • Manual test button
  • Mechanical position indicator
  • Optional LED-indicator & diode modules
  • Plug-in connection
Instantaneous relays (Obsolete)

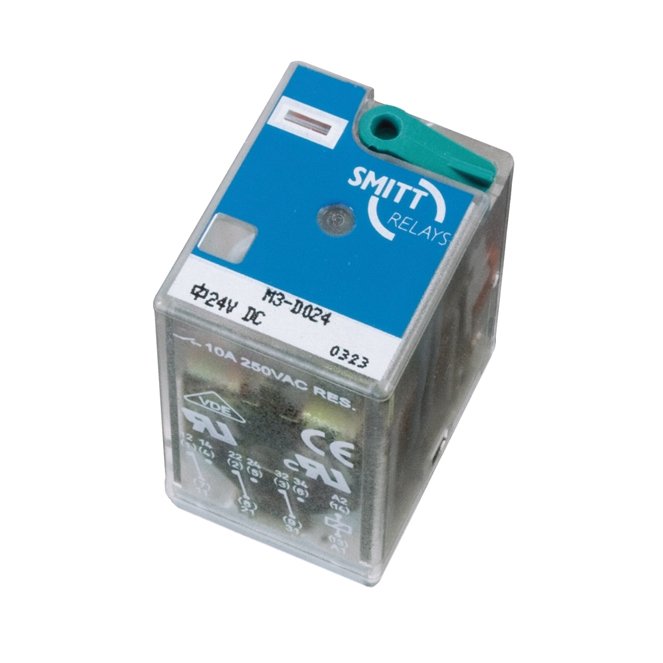

M3 series plug-in, universal , 3-pole relay

  • Various coil voltages
  • Manual test button
  • Mechanical position indicator
  • Optional LED-indicator & diode modules
  • Plug-in connection
Instantaneous relays (Obsolete)

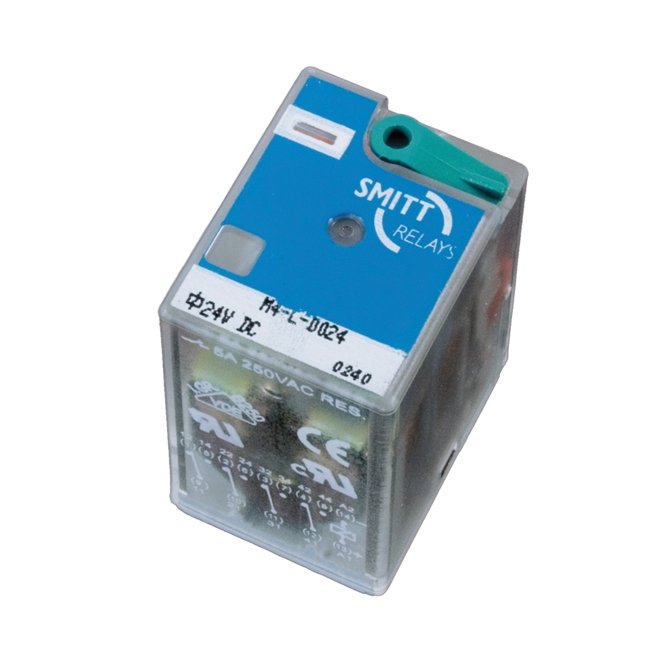

M4 series plug-in, universal , 4-pole relay

  • Various coil voltages
  • Manual test button
  • Mechanical position indicator
  • Optional LED-indicator & diode modules
  • Plug-in connection
Instantaneous relays (Obsolete)

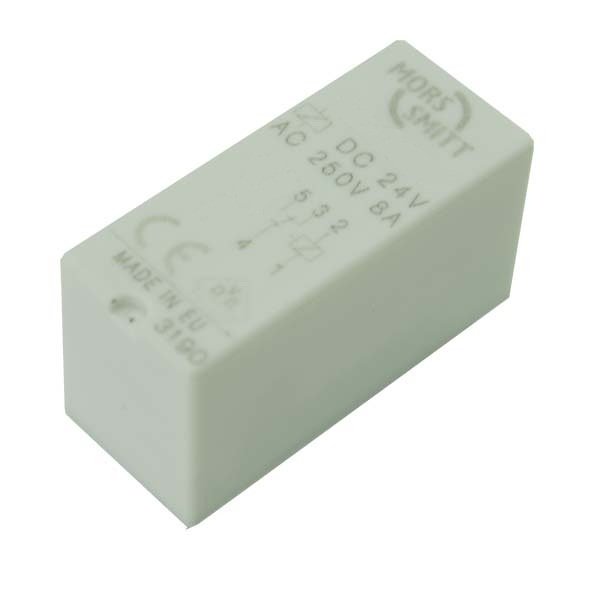

S1 series, miniature plug-in 16 A, 1 changeover co…

  • Various coil voltages
  • Wide DC range 0.7…1.4 Un
  • Optional LED indication
  • Plug-in / PCB connection
Instantaneous relays (Obsolete)

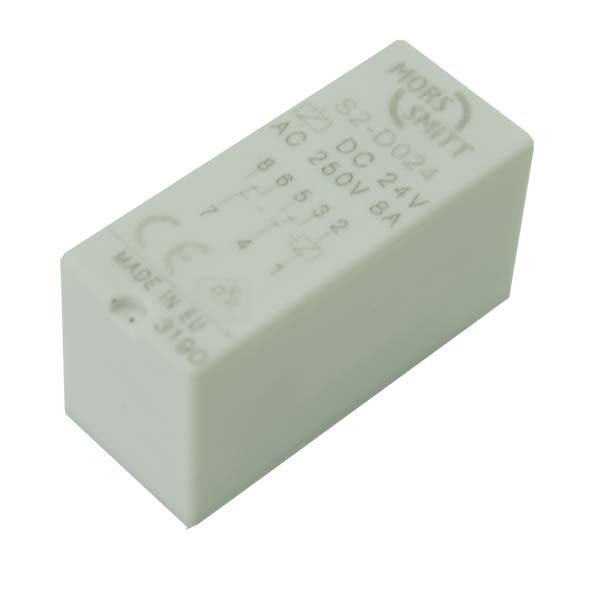

S2 series, miniature plug-in PCB relay 8 A, 2 chan…

  • Various coil voltages
  • Wide DC range 0.7…1.4 Un
  • Optional LED indication
  • Plug-in / PCB connection
Instantaneous relays (Obsolete)

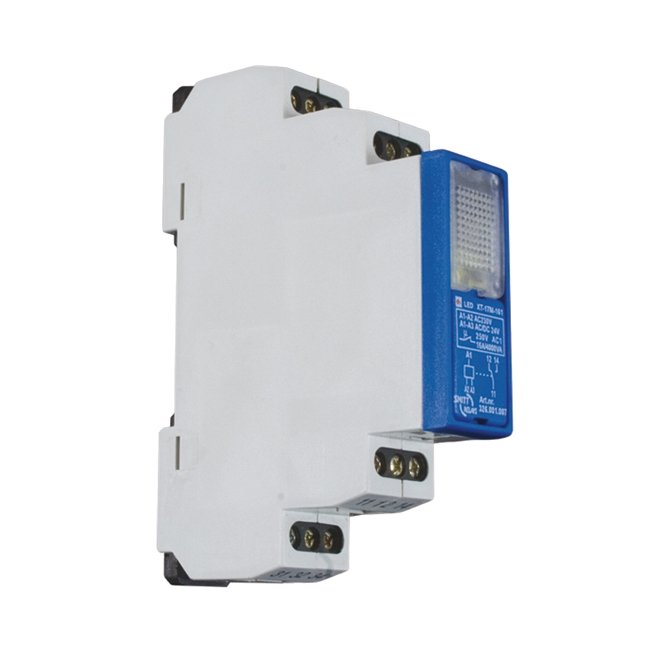

XT-17M-161, instantaneous relay

326001007
  • 24 VAC/DC & 230 VAC coil voltage
  • Clear LED indication
  • Build-in diode
  • Screw connection
  • 35 mm rail mounting
Instantaneous relays (Obsolete)

XT-17M-163, instantaneous relay

326001008
  • 24 VAC/DC & 230 VAC coil voltage
  • Clear LED indication
  • Build-in diode
  • Screw connection
  • 35 mm rail mounting
Instantaneous relays (Obsolete)

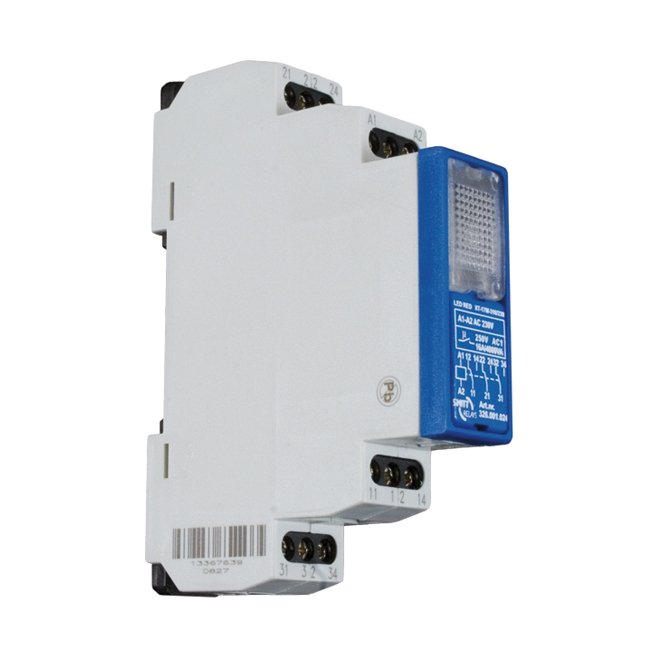

XT-17M-316/230, instantaneous relay

326001024
  • 230 VAC coil voltage
  • Clear LED indication
  • Build-in diode
  • Screw connection
  • 35 mm rail mounting
Instantaneous relays (Obsolete)

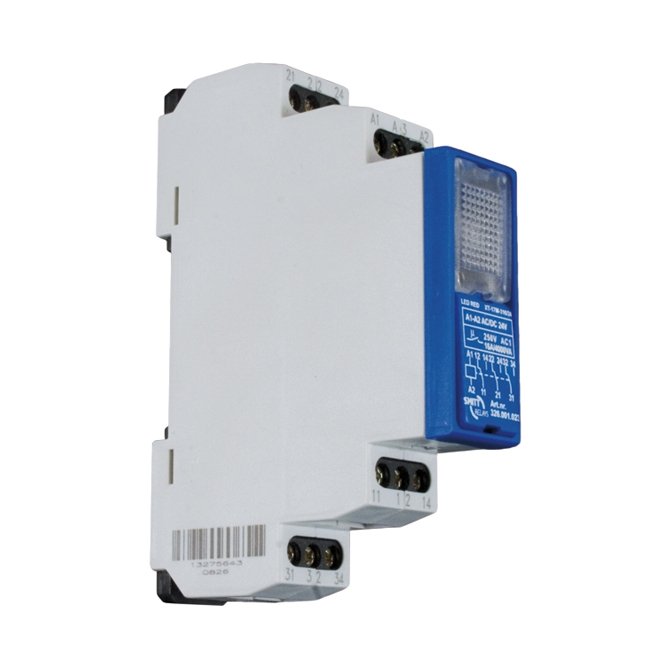

XT-17M-316/24, instantaneous relay

326001123
  • 24 VAC/DC coil voltage
  • Clear LED indication
  • Build-in diode
  • Screw connection
  • 35 mm rail mounting
