Obsolete Industrial Relay Sockets

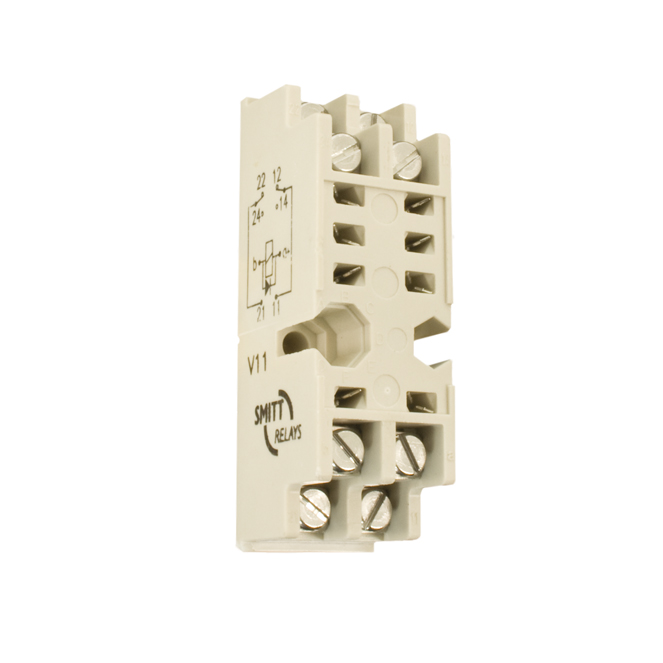

V11 relay socket
Summary
This product is no longer available. The replacement socket is the V16-D.
Click here to go to the product page of the V16-D.
V11, surface/wall mounting, relay socket
For heavy duty, industrial applications, space saving design. Installation and replacement of plug-in relays is made easy and cost saving. No maintenance is required for the user.
Description of V11 relay socket
The V11 relay socket has an internal back EMF diode and is equipped with screw terminals suitable for wires up to 2.5mm2
Features of V11 relay socket
-
Sturdy screw terminals
-
Internal back EMF diode
-
Surface/wall mounting
-
Suitable for 35mm (DIN) rail mouting with A109 rail clip (order separate)
-
Touch proof IP10
- Suitable for all CU-series power relays
-
Wires up to 2.5mm2 per connection terminal
-
Trifurcated female receiver for tight grip relay pin
Benefits of V11 relay socket
- Proven reliable
- Long term availability
- Easy to maintain
-
Low life cycle cost
-
No maintenance
