Obsolete Industrial Relay Sockets
V12 relay socket
This product is no longer available. The replacement socket is the V16-D.
Click here to go to the product page of the V16-D.

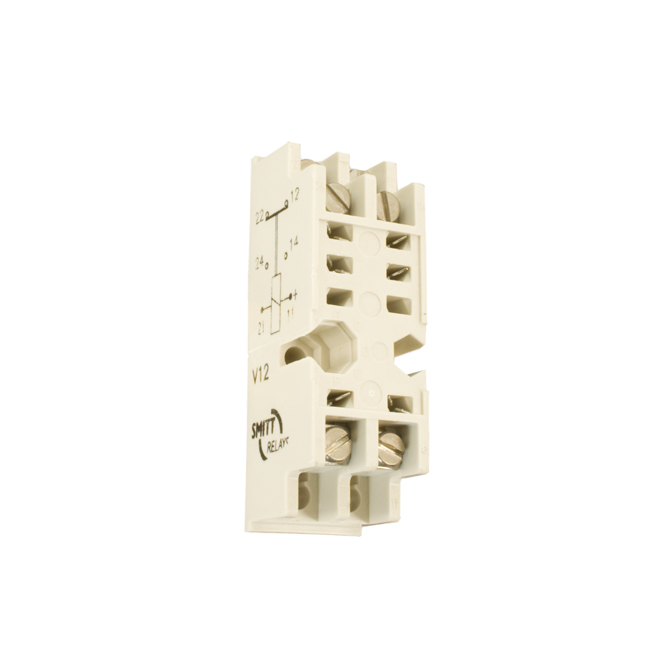

V12, surface/wall mounting, relay socket
For heavy duty, industrial applications, space saving design. Installation and replacement of plug-in relays is made easy and cost saving. No maintenance is required for the user.
Description of V12 relay socket
The V12 relay socket is suitable for the CU-V and CU-U relays. Has no contacts 11 & 12, a LED and internal back EMF diode and is equipped with screw terminals suitable for wires up to 2.5mm2
Features of V12 relay socket
Sturdy screw terminals
LED and internal back EMF diode
Suitable for 35mm (DIN) rail mouting with A109 rail clip (order separate)
Touch proof IP20
Suitable for all CU-series power relays
Wires up to 2.5mm2 per connection terminal
Trifurcated female receiver for tight grip relay pin
Benefits of V12 relay socket
- Long term availability
- Easy to maintain
Low life cycle cost
