35mm (DIN) rail + wall/surface mounting

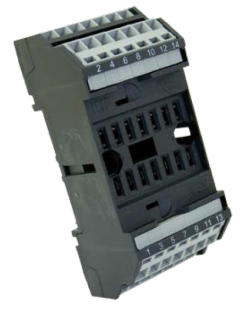

V29 relay socket338000610
V29, 35mm (DIN) rail mounting, relay socket
For heavy duty, industrial applications, space saving design. Installation and replacement of plug-in relays are made easy and cost saving. No maintenance is required for the user.
Description of V29 relay socket
The V29 relay socket has two high-quality spring terminals per relay contact suitable for two wires up to 2.5mm2 (solid or stranded), so looping/daisy chaining can be done on the socket and no external connector or terminal is needed.
The spring terminal makes the quick connection possible by pressing the spring with a flat-bladed screwdriver and inserting the stripped wire. Solid and (fine) stranded wire up to 2.5mm2 can be inserted. This quick & easy wiring method saves up to 75% wiring time compared with classic technology, like screw terminals.
To prevent any faulty relay placement the socket can be equipped with mechanical keying to accept only designated identical keyed relays.
Clear UP arrow for correct 35 mm. rail mounting
Features of V29 relay socket
- Spring terminals
- No internal solderings / connections
- Rail mounting 35 mm (DIN)
- Touch-proof IP20
Suitable for all D-series power relays
Twin connection per contact. Wire up to 2,5 mm2
Easy & quick installation (75% reduction of wiring time)
- Positive mechanical keying
A trifurcated female receiver for tight grip relay pin
Clear terminal ID
Benefits of V29 relay socket
- Proven reliable
- Long-term availability
- Easy to maintain
Low life cycle cost
