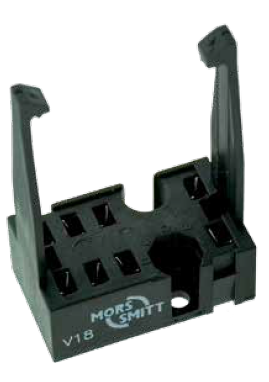

V18 socket - PCB mount

Name: V18 socket - PCB mount
Brand: Own brand
Availability: InStock

338000620

Summary

Description

The V18 is a relay socket for soldering on PCB. The relay will be plugged into the socket, the socket will be soldered on the PCB.

There is only one way of connecting the relay to the socket to guarantee the correct placement of the relay.

Equipped with an integrated retaining clip.

To prevent fault relay placement the socket can be equipped with mechanical keying to accept only designated identical keyed relays.

Application

The V18 relay socket is suitable for general industrial applications with a space saving design. Installation and replacement of relays are made easy and cost saving. No maintenance is required for the user.

Suitable for all CP relays.

Features

PCB mount
Integrated retaining clip
Space saving
Suitable for all CP relays
Positive mechanical keying
Bifurcated female receiver for tight grip relay pin
Clear terminal ID

Benefits

Proven reliable
Long-term availability
Easy to maintain
Low life cycle cost
No maintenance

Industry compliancy

EN 60947-5-1 - Electromechanical control circuit devices and switching elements
IEC 61810 - Electromechanical elementary relays
