Flush & PCB mounting sockets
New product

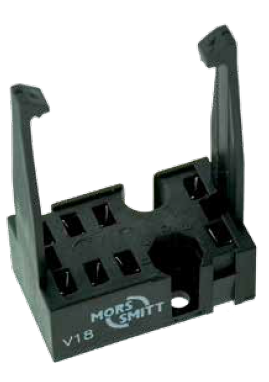

V18 socket - PCB mount

338000620
  • PCB mount
  • Integrated retaining clip
  • Space saving
  • Suitable for all CP relays
  • Postive mechanical keying
  • Bifurcated female receiver for tight grip relay pin
  • Clear terminal ID
Flush & PCB mounting sockets

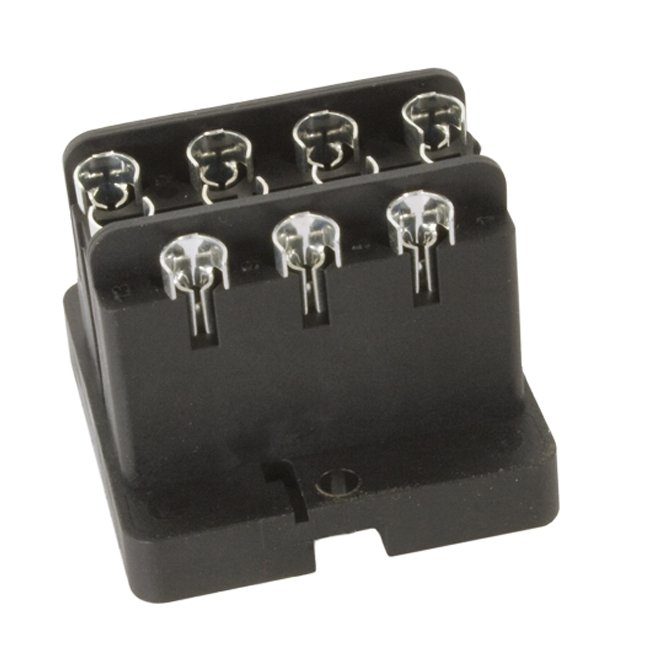

V26 relay socket

328400100
  • Relay socket for D-series power relays
  • Flush/panel mounting
  • Crimp terminal connections (A260 to be ordered seperate)
Flush & PCB mounting sockets

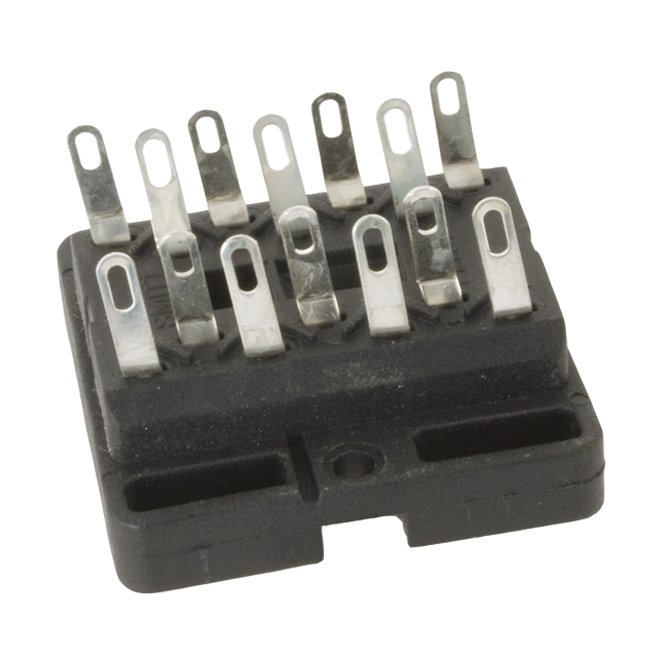

V3 relay socket

338100100
  • Relay socket for D-series power relays
  • Flush/panel mounting
  • Soldering connections
Flush & PCB mounting sockets

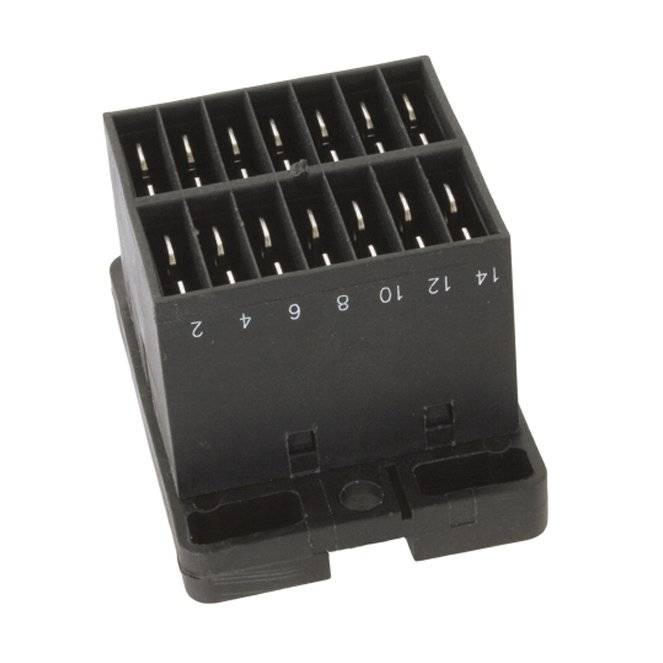

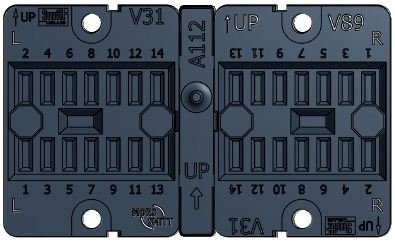

V31 relay socket

338000560
  • Relay socket for D-series power relays
  • Flush/panel mounting
  • Double faston connections (4,8mm)
Flush & PCB mounting sockets

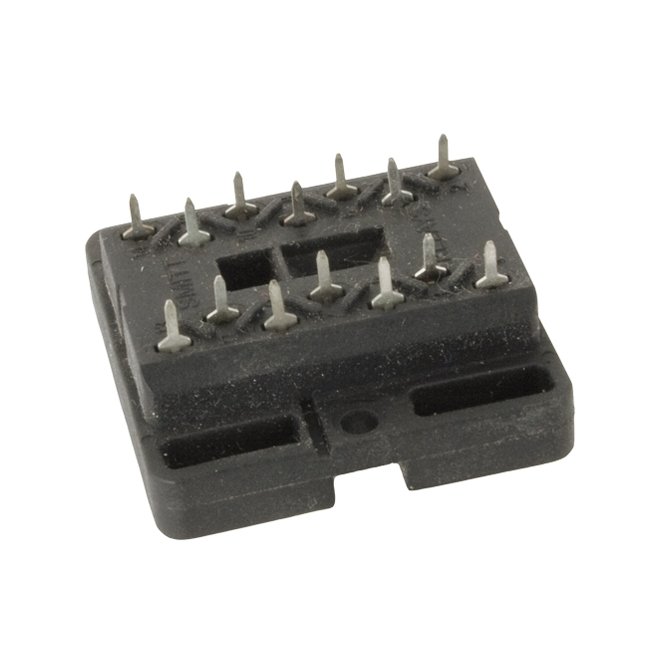

V32 relay socket

338000561
  • Relay socket for D-series power relays
  • Flush/panel mounting
  • PCB soldering connections
Flush & PCB mounting sockets

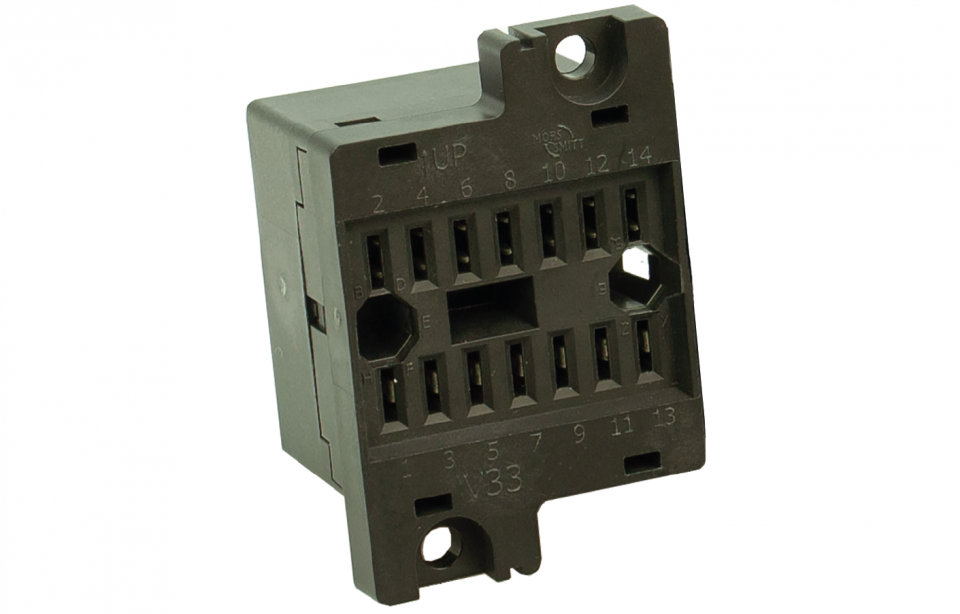

V33 socket – push-in terminal, panel mount

338000570
  • Panel / flush mount
  • Very compact solution
  • Sturdy push-in terminals
  • Solid and stranded wires with ferrules can be inserted easily without using a tool
  • Stranded wires without ferrules can be inserted with a flatbladed screwdriver
  • Twin connection per relay contact
  • Large wires up to 3.3 mm2 (AWG 12)
  • High density matrix of relay/sockets possible, horizontal and vertical stacked
  • Suitable for all railway and industry D- & D-U relay series
  • Easy & quick installation (up to 75% reduction of wiring time)
  • Positive mechanical keying
  • Trifurcated female receiver for tight grip relay pin
  • Clear terminal ID
Flush & PCB mounting sockets
New product

V34 relay socket

  • Relay sockets with rear M4 screw connections
  • For use relays in the Mors Smitt D series housing
  • Suits 14 terminal relays
  • Suitable for surface mounting with rear connection
  • Optional flush panel mount adaptor kits
Flush & PCB mounting sockets

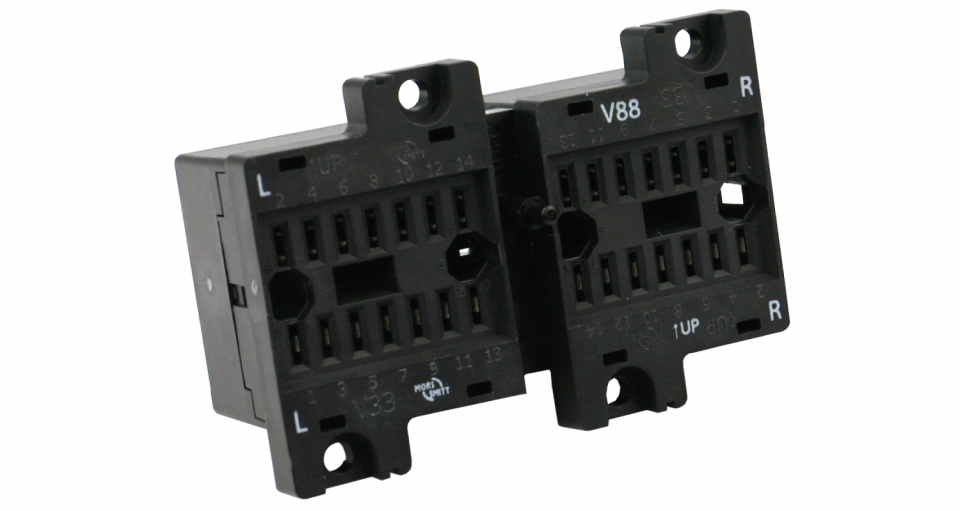

V88 socket – push-in terminal, panel mount 8 pole

338001700
  • Panel / flush mount
  • Very compact solution
  • Sturdy push-in terminals
  • Solid and stranded wires with ferrules can be inserted easily without using a tool
  • Stranded wires without ferrules can be inserted with a flat-bladed screwdriver
  • Twin connection per relay contact
  • Large wires up to 3.3 mm2 (AWG 12)
  • High density matrix of relay/sockets possible, horizontal and vertical stacked
  • Suitable for all railway and industry D8- & KDN relays
  • Easy & quick installation (up to 75% reduction of wiring time)
  • Positive mechanical keying
  • Trifurcated female receiver for tight grip relay pin
  • Clear terminal ID
Flush & PCB mounting sockets

V89 relay socket

338001850
  • Relay socket for D8 & KDN-series power relays
  • Flush/panel mounting
  • Double faston connections (4,8mm)
Flush & PCB mounting sockets

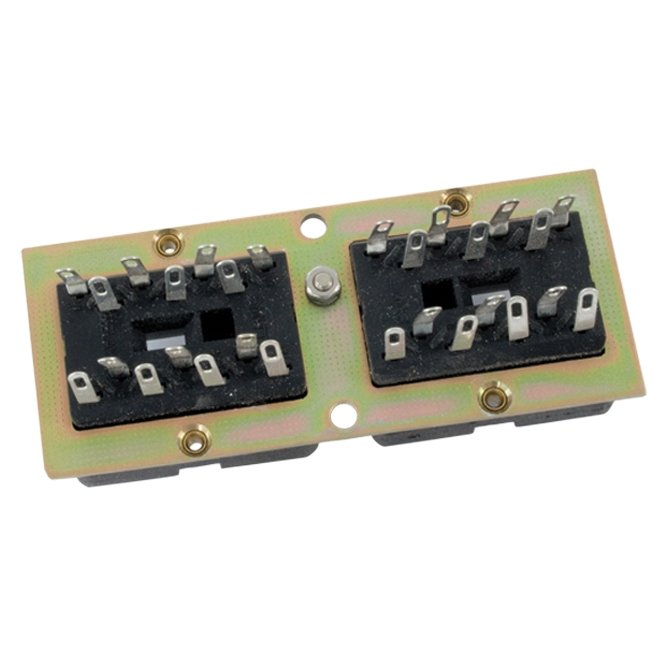

V96 relay socket

338100200
  • Relay socket for D8 & KDN-series power relays
  • Flush/panel mounting
  • Soldering connections
Flush & PCB mounting sockets

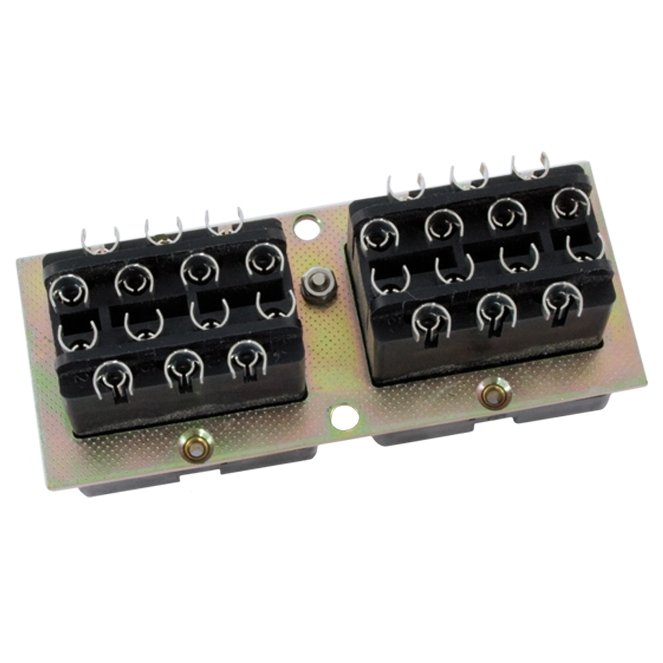

V97 relay socket

338400100
  • Relay socket for D8 & KDN-series power relays
  • Flush/panel mounting
  • Crimp terminal connections (A260 to be ordered seperate)
