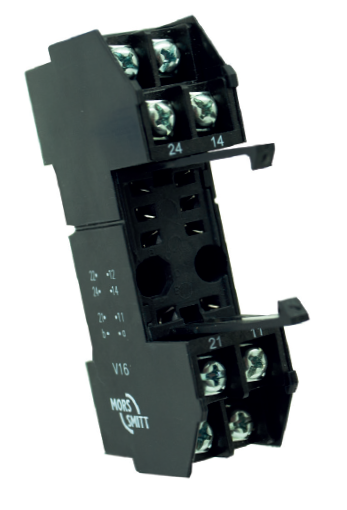

V16 relay socket

338001500
Summary

V16, 35mm (DIN) rail mounting, relay socket

For heavy duty, industrial applications, space saving design. Installation and replacement of plug-in relays are made easy and cost saving. No maintenance is required for the user.


Description of V16 relay socket

The V16 relay socket has screw terminals


Features of V16 relay socket

  • Surface/wall and 35 mm rail mount
  • Screw terminals
  • Integrated retaining clip
  • Space saving
  • Suitable for all CU relay series
  • Up to two wires of 3.3 mm2 per connection terminal
  • Positive mechanical keying
  • Optional diode or double zener protection device
  • A bifurcated female receiver for tight grip relay pin
  • Clear terminal ID

Benefits of V16 relay socket

  • Proven reliable
  • Long-term availability
  • Easy to maintain
  • Low life cycle cost
  • No maintenance
