EA 111 socket for A/B platform relays
Summary
Description

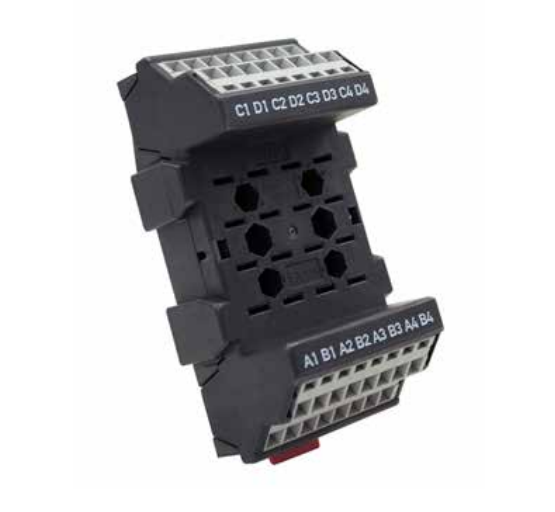

The EA 111 is a relay socket for all A/B platform relays, with two highly reliable spring clamp terminals per socket. The socket can be mounted on a surface/wall and 35 mm rail.
Hexagonal plastic keys and round plastic plugs are provided for relay type coding, not inserted. Keying can be provided as an option.
The spring clamp terminal makes a quick connection possible by pressing the spring with a flat-bladed screwdriver and inserting the stripped wire. Solid and (fine) stranded wires up to 2.5 mm2 can be inserted in the spring clamp terminals. This quick & easy wiring method saves up to 75% wiring time compared with classic technology, like screw terminals.
Hexagonal plastic keys and round plastic plugs are provided for relay type coding, not inserted.
The EA 111 A socket is suitable for all A relays and modules.
The EA 111 B socket is suitable for all B relays and modules.
The EA 111 E socket is suitable for all E relays and modules.
Application
The EA 111 socket is designed for surface mount or self-clicking on 35 mm rail.
