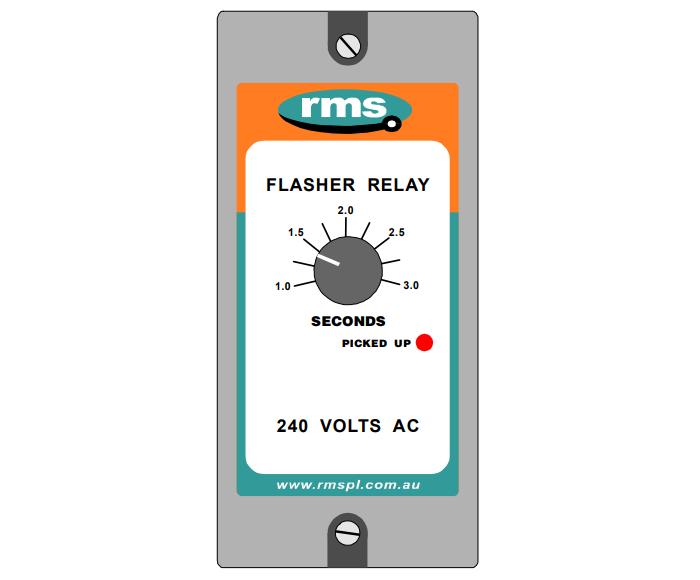

1F701 700 Series Flasher Relay
ObsoleteSummary
This product is obsolete.
Consider the alternative FDA4-U200N relay for your application. Note that the FDA4-U200N is not directly equivalent to the 1F701.
Features
-
Flasher relay
-
Ten year factory warranty
-
Plug in measuring module
-
Double insulated high impact polystyrol case
-
Termination socket included for surface mounting, enabling front or rear connection with optional DIN rail mounting
-
Proven circuit designs based on over 15 years of field service in hundreds of varied & demanding applications
-
Easy to set calibration scales
-
Tolerance to shock & vibration for generator, compressor & mobile applications
Description
The 1F701 Series relays are solid state general purpose flasher relays with electromechanical output contacts.
Designed for applications wherever a simple continuous cycling time delay is required where the ON and OFF periods are identical.
The 700 Series range of electronic measuring relays are manufactured as a modular approach to electrical system protection & control. Designed to meet rigid Australian and international specifications, the 700 Series provide a flexible, cost-effective and extremely reliable solution for a multitude of applications under electrically hostile conditions.
