TDE3-U200 relay - Timer, delay-off, 3 pole

Summary

This product is no longer available. The replacement relay is the TDBE4-U200/300.
Click here to go to the product page of the TDBE4-U200/300.

Description

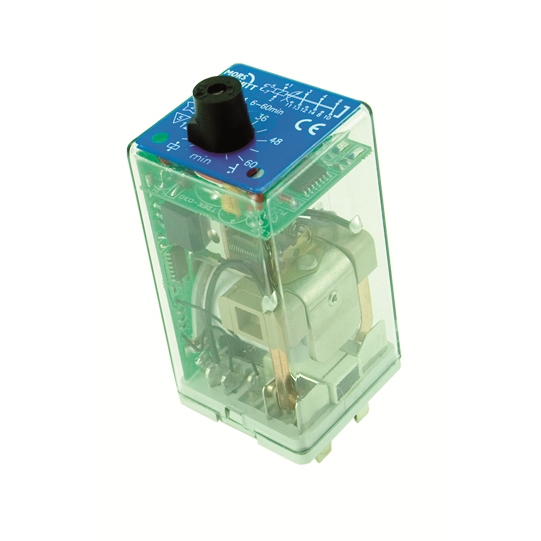

Plug-in electronic railway timer relay with three change-over contacts and delay-off function. The relay is energized by auxiliary supply and activated by an external N/O contact. The delay time is adjustable with a lockable knob. The relay can also be supplied with a fixed time delay (no knob). The relay is equipped with two LEDs which indicate the presence of power supply and the energizing of the coil. Standard equipped with magnetic arc blow-out for high breaking capacity and long contact life.

The construction of the relay and choice of materials makes the TDE3-U200 relay suitable to withstand low and high temperatures, shock & vibrating and dry to humid environments.

No external retaining clip needed as integrated ‘snap-lock’ will hold relay into the socket under all circumstances and mounting directions.

Compact design, choice of many options and a wide range of sockets makes the TDE3-U200 relay an easy and flexible solution to use.


Application

These relay series are designed for demanding rolling stock applications. The TDE3-U200 is used in applications where a time delay on drop-out is necessary.



Features

  • Time delay relay
  • Delay-on drop-out (with auxiliary power supply)
  • Compact plug-in design
  • 3 C/O contacts
  • Delay time adjustable with a lockable knob
  • Also available with fixed time delay
  • Total time delay range: 0.1 s...60 min
  • Magnetic arc blow-out
  • Two LEDs for status indication
  • Flat, square and silver plated relay pins for excellent socket connection
  • Wide range sockets
  • Integrated snap lock

Benefits

  • Proven reliable
  • Long-term availability
  • Easy to maintain
  • Low life cycle cost
  • No maintenance

Railway compliancy

  • EN 50155 Electronic equipment used on rolling stock for railway applications
  • IEC 60571 Electronic equipment used on railway vehicles
  • IEC 60077 Electrical equipment for rolling stock in railway applications
  • IEC 60947 Low voltage switchgear and control gear
  • IEC 61373 Rolling stock equipment - Shock and vibration test
  • IEC 60947-5-4 Electromechanical components for control applications. This standard examines both coil and contact specifications in depth
  • EN 50121 Electromagnetic compatibility for railway applications
  • NF F 16-101/102, TS 45545-2 Fire behavior - Railway rolling stock
  • NF F 62-002 On-off contact relays and fixed connections
