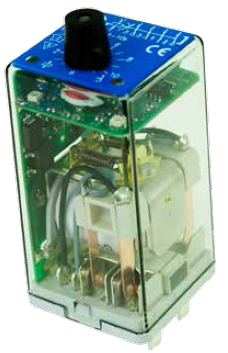

CTD4-U relay - Multifunction customizable timer, 4 pole

Name: CTD4-U relay - Multifunction customizable timer, 4 pole
Brand: Own brand
Availability: InStock

Summary

Description

Plug-in electronic railway customizable timer relay with four change-over contacts. Fully customizable according customer’s requirements concerning timing diagram and delay type. Almost any timing diagram is possible: for example time delays with delay on pull-in, on drop-out or both, symmetrical or asymmetrical flashing, 1-shot, 2-shot, 3-shot etc. or a combination of all these. Delay/pulse times are adjustable with 1 or 2 lockable knobs. The relay can also be supplied with fixed delay/pulse times (no knobs).

The relay has standard four change-over contacts which work according the timing diagram. Also 2 instantaneous change-over contacts and 2 timer change-over contacts are possible, to cover virtually all needs. Besides being activated by a voltage level, it is possible to activate the relay via a command input as well. The relay is equipped with two LEDs which indicate the presence of power supply and energizing of the coil. Also standard equipped with magnetic arc blow-out for high breaking capacity and long contact life.

The construction of the relay and choice of materials makes the CTD4-U relay suitable to withstand low and high temperatures, shock & vibrating and dry to humid environments. No external retaining clip needed as integrated ‘snap-lock’ will hold relay into socket under all circumstances and mounting directions.

Application

These relay series are designed for demanding rolling stock applications. The CTD4-U relay can be used in all Railway applications where a standard or non-standard timer function is necessary.

Features

Fully customizable timer relay
Compact plug-in design
4 time delayed C/O contacts or 2 time delayed C/O contacts and 2 instantaneous C/O contacts
Delay/pulse times adjustable with 1 or 2 lockable knobs
Also available with fixed delay/pulse times (no knobs)
Delay/pulse times: between 0 s...∞ (no limits)
Magnetic arc blow-out
Two LEDs for status indication
Suitable for DC and AC voltage

Benefits

Flat, square and silver plated relay pins for excellent socket connection
Wide range of sockets
Integrated snap lock
Transparent cover
Optional positive mechanical keying relay to socket
Flexibility by many options

Railway compliancy

EN 50155 Electronic equipment used on rolling stock for railway applications
IEC 60571 Electronic equipment used on railway vehicles
IEC 60077 Electrical equipment for rolling stock in railway applications
IEC 60947 Low voltage switch gear and control gear
IEC 61373 Rolling stock equipment - Shock and vibration test
IEC 60947-5-4 Electromechanical components for control applications. This standard examines both coil and contact specifications in depth
EN 50121 Electromagnetic compatibility for railway applications
NF F 16-101/102, EN 45545-2 Fire behaviour - Railway rolling stock
NF F 62-002 On-off contact relays and fixed connections
