Selectiontable Current clamps

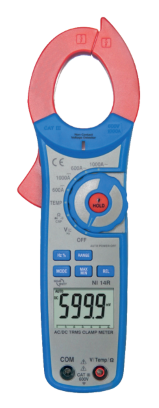

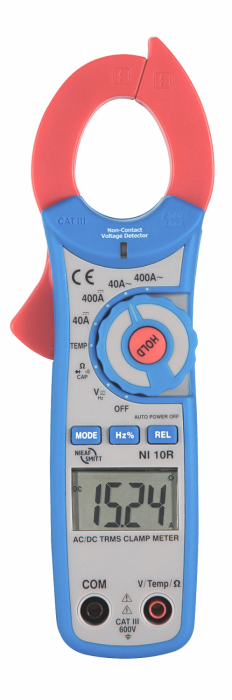

	NI 03	NI 30R	NI 10R	NI 14R	NI 19 PLUS	NI 333

Screen resolution	2.000d	4.000d	3.999d	6.000d	10.000d	3.999d
Voltage AC	•	•	•	•	•	•
Voltage DC	•	•	•	•	•
Resistance	•	•	•	•	•	•
Current AC	400 A	300 A	400 A	1000 A	600 A	60A
Current DC		300 A	400 A	1000 A	600 A
True RMS		•	•	•	•
Diode / continuity	•	•	•	•	•
Frequency			•	•	•
Power					•
Temperature			•	•
Harmonic disturbance					•
leakage current						•
hold	•	•	•			•
Min-max hold				•
Backlit display				•	•
Max. diameter	27 mm	22 mm	27 mm	35 mm	37 mm	30 mm
Max. mouth opening	30 mm	25 mm	30 mm	40 mm	45 mm	30 mm
Weight	255 g	205 g	230 g	271 g	435 g	230 g
Overvoltage category	CAT III 600 V	CAT II 600 V	CAT III 600 V	CAT III 600 V	CAT IV 600 V	CAT III 300 V
Article number	626005043	626005020	626005057	626005054	626005052	626005024
