Range of timer relays for heavy duty applications.

FIxed or adjusable threshold, up to 4 changeover contacts.
All based on the D relay series housing and pinning.
Filter
Timer heavy duty power relays

CTD4 relay - Multifunction customizable timer, 4 p…

This relay is obsolete from January 1, 2023
  • Fully customizable timer relay
  • Compact plug-in design
  • 4 time delayed C/O contacts or
  • 2 time delayed C/O contacts and
  • 2 instantaneous C/O contacts
  • Delay/pulse times adjustable with 1 or
  • 2 lockable knobs
  • Also available with fixed delay/pulse times (no knobs)
  • Delay/pulse times: between 0 s...∞ (no limits)
  • Two LEDs for status indication
  • Suitable for DC and AC voltage
  • Flat, square and silver plated relay pins for excellent socket connection
  • Wide range of sockets
  • Integrated snap lock
  • Transparent cover
  • Optional positive mechanical keying relay to socket
  • Flexibility by many options
Download datasheet
See more details
Timer heavy duty power relays

FDA series, interval timer relay (flashing relay)

This relay is obsolete from January 1, 2023
  • Flashing relay (symmetrical)
  • Duty cycle: 1/2
  • DC and AC (50/60 Hz) input
  • Standard coil is 50 Hz (60 Hz on request)
  • Compact plug-in design
  • 2 C/O contacts
  • Pulse time adjustable with a lockable knob
  • Pulse times between 0.5 s - 3 s
  • Also available with fixed pulse time (no knob)
  • Double zener diode coil protection
  • Flat, square and silver plated relay pins for excellent socket connection
  • Integrated snap lock
  • Optional positive mechanical keying relay to socket
Download datasheet
See more details
Timer heavy duty power relays

FDA4 series, interval timer relay (flashing relay)

This relay is obsolete from January 1, 2023
  • Plug-in interval timer relay with 4 C/O contacts
  • Coil voltages 24...220 VAC/DC
  • Pulse time = interval time
  • Time adjustable by lockable knob
  • Rated load, 10A/230V AC1, 1A/110V DC1
Download datasheet
See more details
Timer heavy duty power relays

FDC series, interval timer relay (flashing relay)

This relay is obsolete from January 1, 2023
  • Plug-in interval timer relay with 2 C/O contacts
  • Coil voltages 24...110V AC/DC
  • Pulse time 1s. Interval time 30s (fixed)
  • Rated load, 6A/230V AC1, 1A/24V DC1
Download datasheet
See more details
Timer heavy duty power relays

TDB2 series, delay-on timer relay

This relay is obsolete from January 1, 2023
  • Plug-in delay on timer relay with 2 C/O contacts
  • Coil voltages 24...110 VDC, 24...110 VAC
  • Several time ranges, see datasheet
  • Time adjustable by lockable knob
  • Rated load, 6 A/ 230V AC1, 1 A/24 VDC1
Download datasheet
See more details
Timer heavy duty power relays

TDB4 series, delay-on timer relay

  • Plug-in delay on timer relay with 4 C/O contacts
  • Coil voltages 24...220 V AC/DC
  • Several time ranges, see datasheet
  • Time adjustable by lockable knob
  • Rated load, 10A/230V AC1, 1A/110V DC1
Download datasheet
See more details
Timer heavy duty power relays

TDBE4, dual function timer relay

This relay is obsolete from January 1, 2023
  • Plug-in delay on & off timer relay with 3 C/O contact and 1 N/C contact
  • Coil voltages 24...220 VDC
  • Several time ranges, see datasheet
  • Time ranges adjustable by lockable knob
  • Rated load 6A/230V AC1, 1A/24V DC1
Download datasheet
See more details
Timer heavy duty power relays

TDDB series, delay-on timer relay

This relay is obsolete from January 1, 2023
  • Plug in
  • 2CO contacts direct and 2 C/O contacts time delayed
  • DC and AC coil
  • Flash barriers
  • LED indicator
  • Cadmium free contacts
  • ‘Smitt-style’ pinning with integrated retaining clip silver plated
  • Adjustable with a lockable knob
Download datasheet
See more details

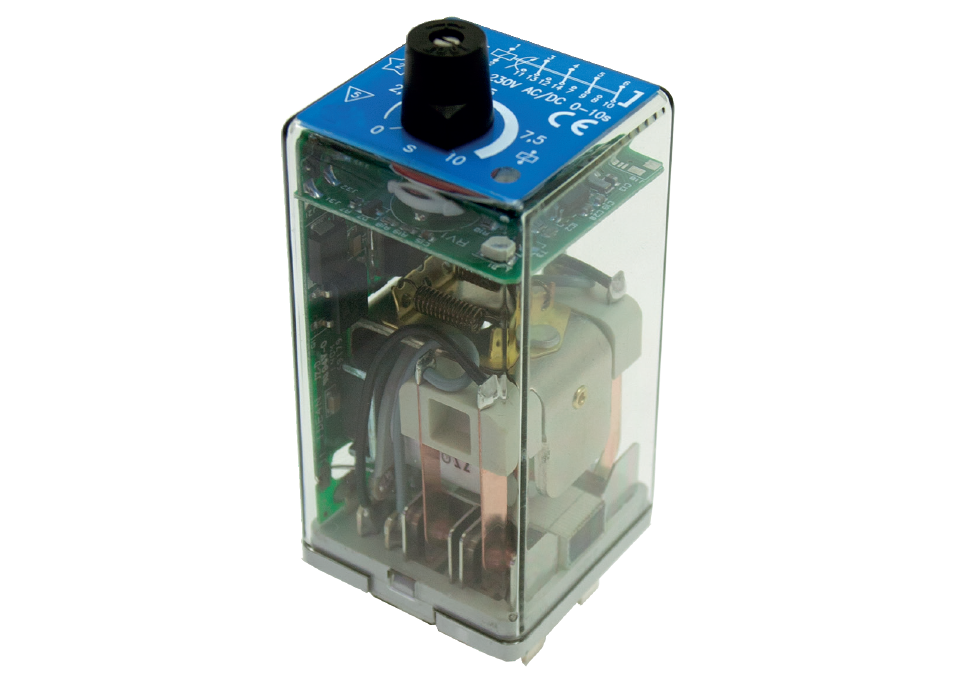

Timer heavy duty power relays

TDE4N relay - Timer, delay-off, 4 pole

  • Time delay relay
  • Delay on drop-out (without auxiliary
  • power supply)
  • Compact plug-in design
  • 4 C/O contacts
  • Delay time adjustable by lockable knob
  • Also available with fixed time delay
  • Total time delay range: 0 s...180 s
  • Back EMF suppression
  • One LED for voltage presence
  • Suitable for AC and DC voltage
  • Flat, square and silver plated relay pins for excellent socket connection
  • Wide range sockets
  • Integrated snap lock
Download datasheet
See more details

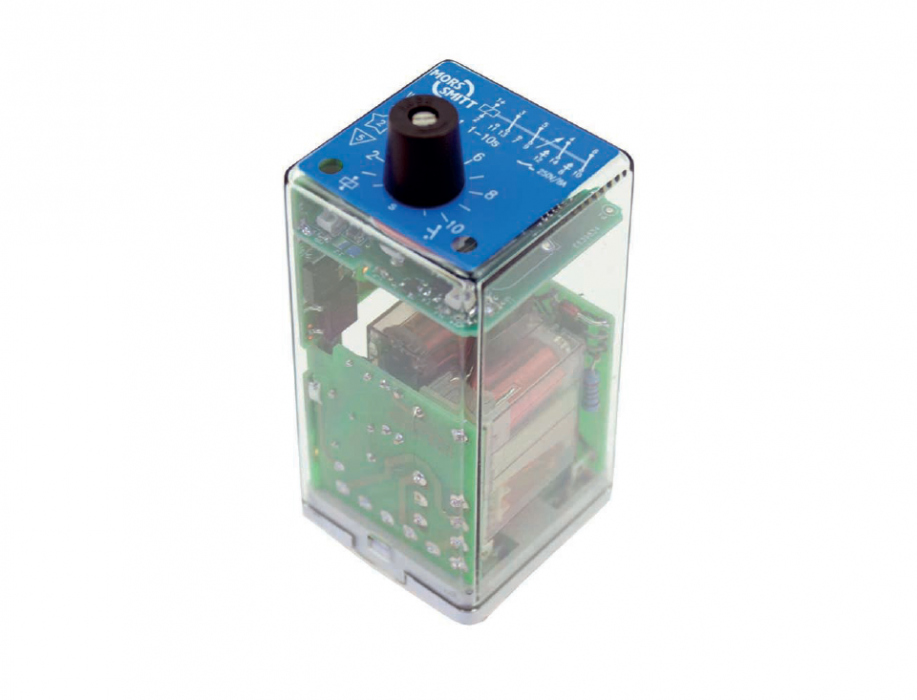

Timer heavy duty power relays

WDDE series, pulse relay (one shot-on relay)

  • Plug-in pulse relay with 2 C/O and 2 N/C contacts
  • Coil voltages 24...125 VAC/DC
  • Generates a 0,5s. (fixed) pulse on activation
  • Rated load, 8A/230V AC1, 1A/24V DC1
Download datasheet
See more details
Timer heavy duty power relays

WDDF series, pulse relay (one shot-off relay)

This relay is obsolete from January 1, 2023
  • Plug-in pulse relay with 2 C/O and 2 N/C contacts
  • Coil voltages 24...220V AC/DC
  • Generates a 0,5s. (fixed) pulse on de-activation
  • Rated load, 8A/230V AC1, 1A/24V DC1
Download datasheet
See more details
Timer heavy duty power relays

WDE4 series, pulse relay (one shot-on relay)

This relay is obsolete from January 1, 2023
  • Plug-in pulse relay with 4 C/O contacts
  • Coil voltages 24...220V AC/DC
  • Generates a pulse on activation. Several time ranges. Time adjustable by lockable knob
  • Rated load, 10A/230V AC1, 1A/24V DC1
Download datasheet
See more details
