Timer heavy duty power relays
WDDE series, pulse relay (one shot-on relay)
Summary

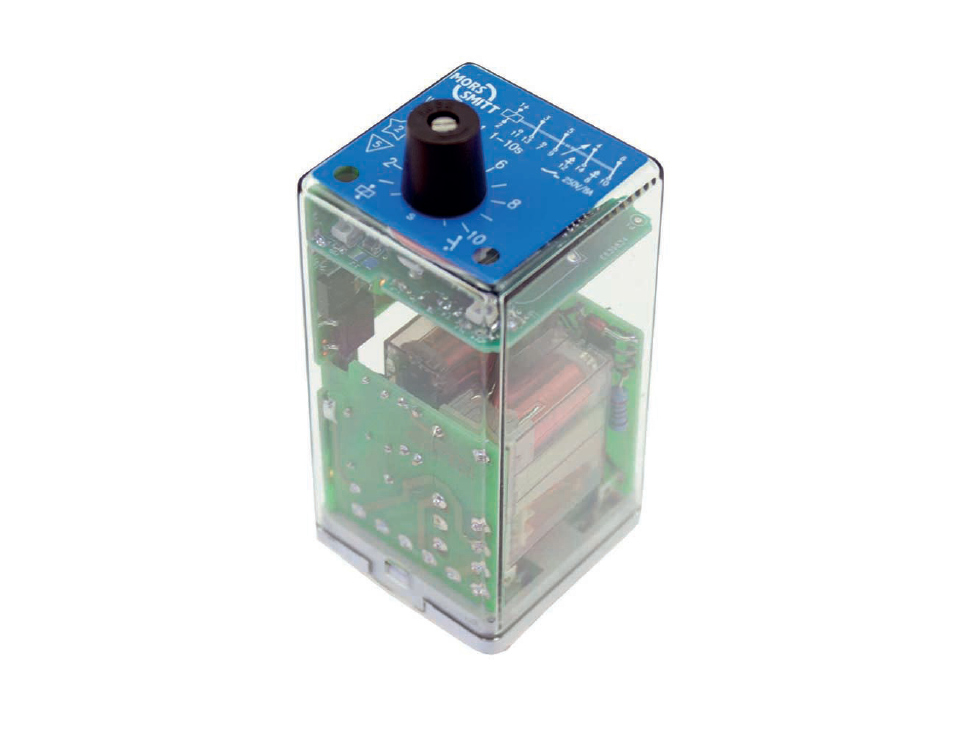

WDDE, pulse relay, 2 C/O and 2 N/C, 8A
Pulse relay (one shot relay) for heavy duty, demanding applications, switching of AC & DC voltages, resistive and/or inductive loads. Generates a 0,5s. (fixed) pulse on activation.
-
Plug-in relay
-
Smitt-style pining
-

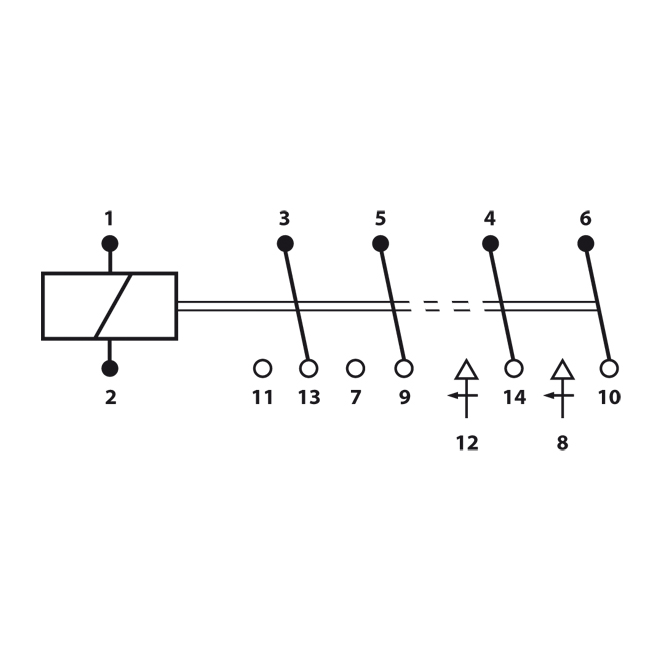

2 C/O instant + 2 N/C time contacts
-

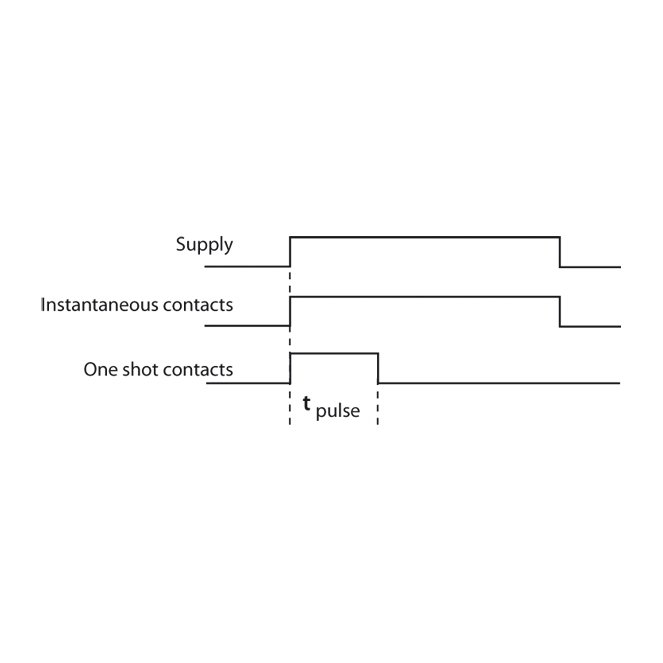

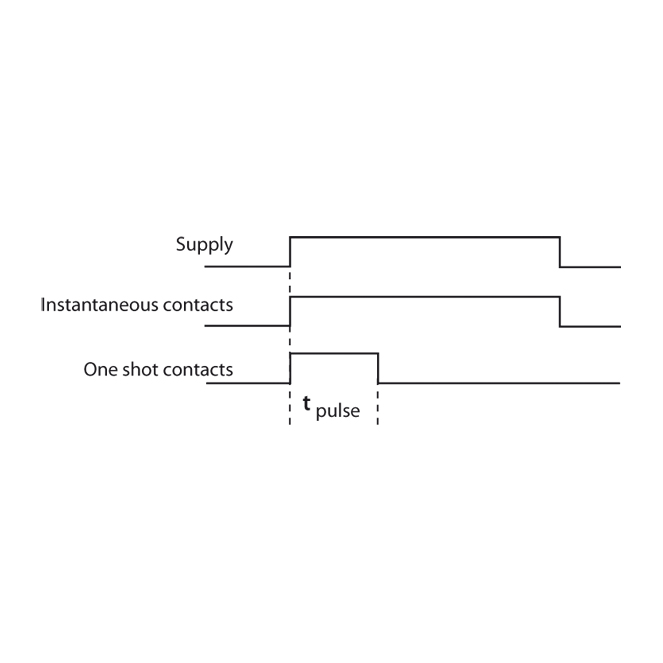

Pulse 0,5s. (fixed) on activation
-
DC and AC coil
-
Flash barriers
-
LED indicator
-
Cadmium free contacts
-
Integrated 'snap-lock' retaining clip
Related products
.jpg)
V2 relay socket
Obsolete (338000100)- Compact relay socket for D-series power relays
- Surface/wall mounting
- Screw terminals, bush connections
- Wires up to 2,5mm2
Download datasheet
See more details
.jpg)
V22BR relay socket
338000302- Relay socket for D-series power relays
- Surface/wall mounting
- Screw terminals, extra large, wires up to 2,5mm2
- 9mm wide terminal surface
Download datasheet
See more details
.jpg)
V23BR relay socket
338000402- Relay socket for D-series power relays
- Rail mounting (35 mm/DIN)
- Screw terminals, extra large, wires up to 2,5 mm2
- 9 mm wide terminal surface
Download datasheet
See more details
.jpg)
V24 relay socket
- Relay socket for D-series power relays
- Surface/wall mounting
- Faston terminals (1x faston 6,8 x 0,8mm or 2x faston 2,8 x 0,8mm)
Download datasheet
See more details
.jpg)
V25 relay socket
- Relay socket for D-series power relays
- 35mm (DIN) rail mounting
- Faston terminals (1x faston 6,8 x 0,8mm or 2x faston 2,8 x 0,8mm)
Download datasheet
See more details
.jpg)
V21 relay socket
338000200- Compact relay socket for D-series power relays
- Rail mounting (35mm/DIN)
- Screw terminals, bush connections
- Wires up to 2,5mm2
Download datasheet
See more details
.jpg)
V3 relay socket
338100100- Relay socket for D-series power relays
- Flush/panel mounting
- Soldering connections
Download datasheet
See more details
.jpg)
V26 relay socket
328400100- Relay socket for D-series power relays
- Flush/panel mounting
- Crimp terminal connections (A260 to be ordered seperate)
Download datasheet
See more details
.jpg)
V31 relay socket
338000560- Relay socket for D-series power relays
- Flush/panel mounting
- Double faston connections (4,8mm)
Download datasheet
See more details
.png)
V33 socket – push-in terminal, panel mount
338000570- Panel / flush mount
- Very compact solution
- Sturdy push-in terminals
- Solid and stranded wires with ferrules can be inserted easily without using a tool
- Stranded wires without ferrules can be inserted with a flatbladed screwdriver
- Twin connection per relay contact
- Large wires up to 3.3 mm2 (AWG 12)
- High density matrix of relay/sockets possible, horizontal and vertical stacked
- Suitable for all railway and industry D- & D-U relay series
- Easy & quick installation (up to 75% reduction of wiring time)
- Positive mechanical keying
- Trifurcated female receiver for tight grip relay pin
- Clear terminal ID
Download datasheet
See more details
.jpg)
V32 relay socket
338000561- Relay socket for D-series power relays
- Flush/panel mounting
- PCB soldering connections
Download datasheet
See more details
