Timer heavy duty power relays

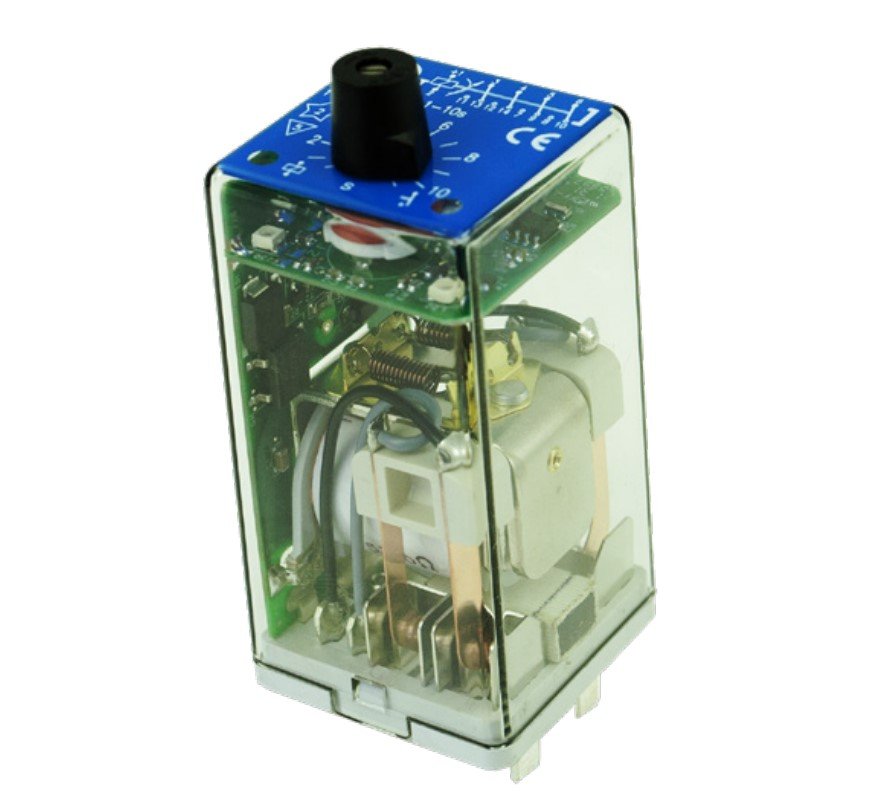

TDB4 series, delay-on timer relay
Summary

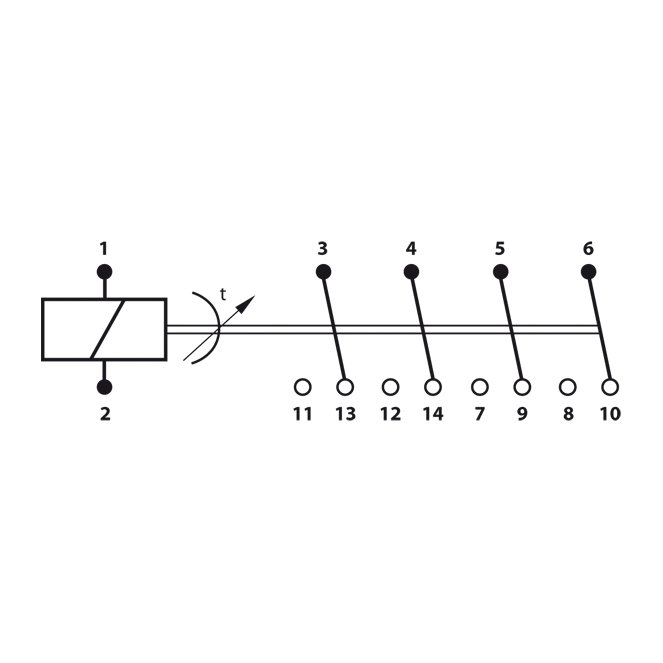

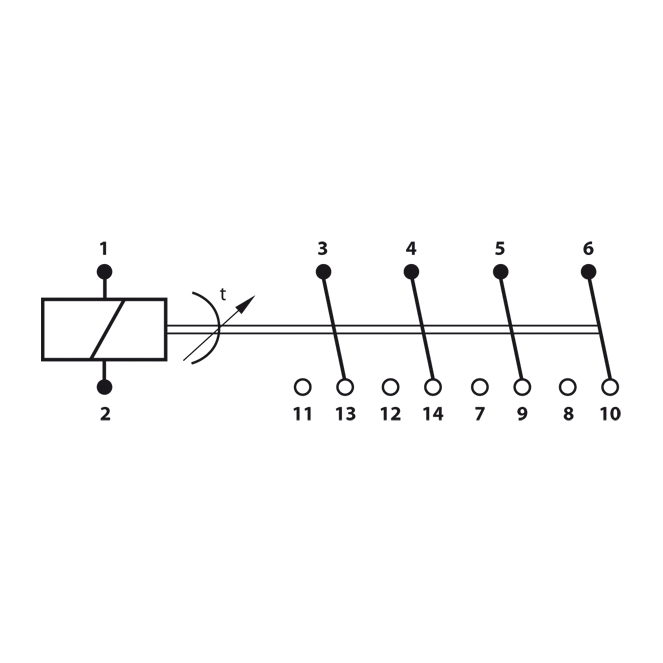

TDB4, delay on timer relay, 4 C/O, 10A
Delay on timer relay for heavy duty, demanding applications, switching of AC & DC voltages, resistive and/or inductive loads.
-
Plug in power relay
-
Smitt-style pining
-
4 C/O contacts
-
DC and AC coil
-
Flash barriers
-
2 LED indicators
-
Cadmium free contacts
-
Several time ranges available, see datasheet
-
Adjustable with a lockable knob
-
Integrated 'snap-lock' retaining clip
