Surface/wall mounting sockets


Surface/wall mounting sockets

Filter
Surface/wall mounting sockets

V10 relay socket

Obsolete
  • Relay socket for C-series power relays
  • Surface/wall mounting
  • Screw terminals, wires up to 2,5mm2
  • Suitable for 35mm (DIN) rail mounting (with A109 clip)
Surface/wall mounting sockets

V11 relay socket

  • Relay socket for CU-series power relays
  • Surface/wall mounting, internal back EMF diode
  • Screw terminals, wires up to 2,5mm2
  • Suitable for 35mm (DIN) rail mounting (with A109 clip)
Surface/wall mounting sockets

V12 relay socket

  • Relay socket for CU-V, CU-U power relays
  • Surface/wall mounting, with LED and internal back EMF diode. Screw terminals, wires up to 2,5mm2
  • No contacts 11 & 21 (for CU-V, CU-U)
Surface/wall mounting sockets

V2 relay socket

338000100
  • Compact relay socket for D-series power relays
  • Surface/wall mounting
  • Screw terminals, bush connections
  • Wires up to 2,5mm2
Surface/wall mounting sockets

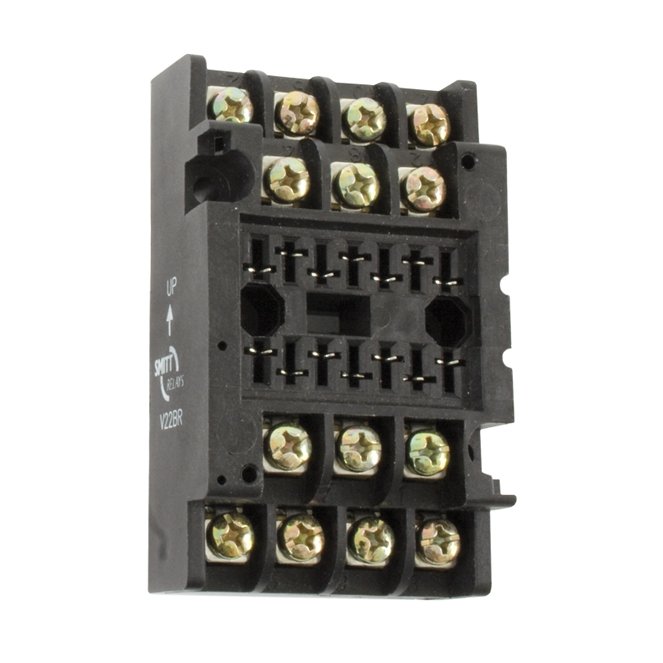

V22BR relay socket

338000302
  • Relay socket for D-series power relays
  • Surface/wall mounting
  • Screw terminals, extra large, wires up to 2,5mm2
  • 9mm wide terminal surface
Surface/wall mounting sockets

V24 relay socket

  • Relay socket for D-series power relays
  • Surface/wall mounting
  • Faston terminals (1x faston 6,8 x 0,8mm or 2x faston 2,8 x 0,8mm)
Surface/wall mounting sockets

V9 relay socket

338000900
  • Compact relay socket for D8 & KDN-series power relays
  • Surface/wall mounting
  • Screw terminals, bush connections
  • Wires up to 2,5mm2
Surface/wall mounting sockets

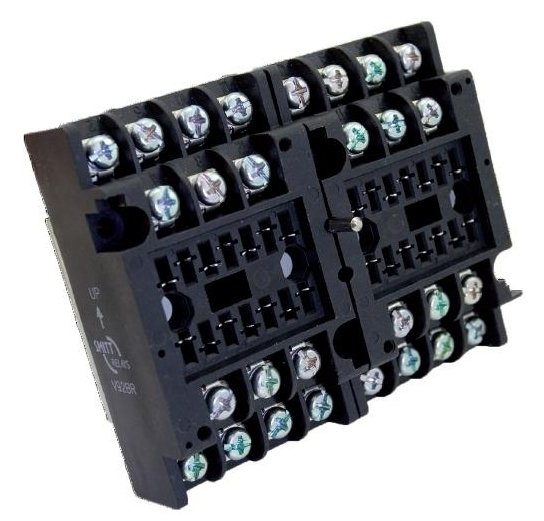

V92BR socket - Screw terminal, wall mount, 8 pole

  • Surface / wall mount
  • Sturdy screw terminals
  • Suitable for 9 mm ring tabs
  • Suitable for all D8 and KDN relays
  • Up to two wires of 2.5 mm
  • 2 per connection terminal
  • Positive mechanical keying
  • Bifurcated female receiver for tight grip relay pin
  • Clear terminal ID
Surface/wall mounting sockets

V94 relay socket

  • Relay socket for D8 & KDN-series power relays
  • Surface/wall mounting
  • Faston terminals (1x faston 6,8 x 0,8mm or 2x faston 2,8 x 0,8mm)
