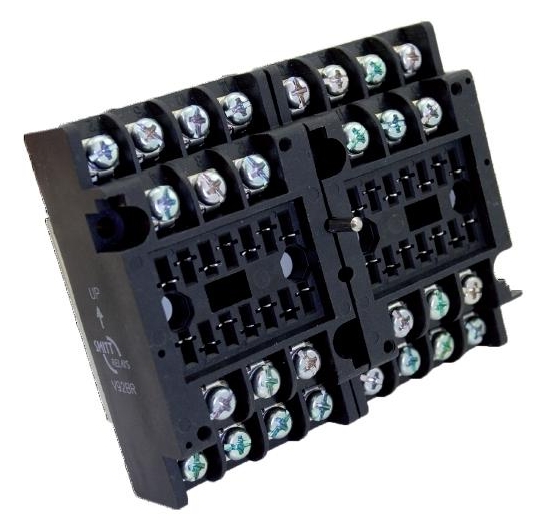

V92BR socket - Screw terminal, wall mount, 8 pole

Name: V92BR socket - Screw terminal, wall mount, 8 pole
Brand: Own brand
Availability: InStock

Summary

Description

The V92BR is a surface/wall mount relay socket with extra space for ring tabs. The V92BR socket has one screw terminal per relay contact suitable for two wires up to 2.5 mm2 and 9 mm ring tabs, so looping/daisy chaining can be done on the socket and no external connector or terminal is needed.

To prevent fault relay placement the socket can be equipped with mechanical
keying to accept only designated identical keyed relays.

Application

The V92BR relay socket is suitable for general industrial applications with a space saving design, where extra space for ring tabs is necessary. Installation and replacement of relays are made easy and cost saving. No maintenance is required for the user.

Suitable for all D8 and KDN relay series.

Features

Surface/wall mount
Sturdy screw terminals
Suitable for 9 mm ring tabs
Suitable for all D8 and KDN relays
Up to two wires of 2.5 mm
2 per connection terminal
Positive mechanical keying
A bifurcated female receiver for tight grip relay pin
Clear terminal ID

Benefits

Proven reliable
Long-term availability
Easy to maintain
Low life cycle cost
No maintenance

Industry compliancy

EN 60947-5-1 - Electromechanical control circuit devices and switching elements
IEC 61810 - Electromechanical elementary relays
