Flush & PCB mounting sockets

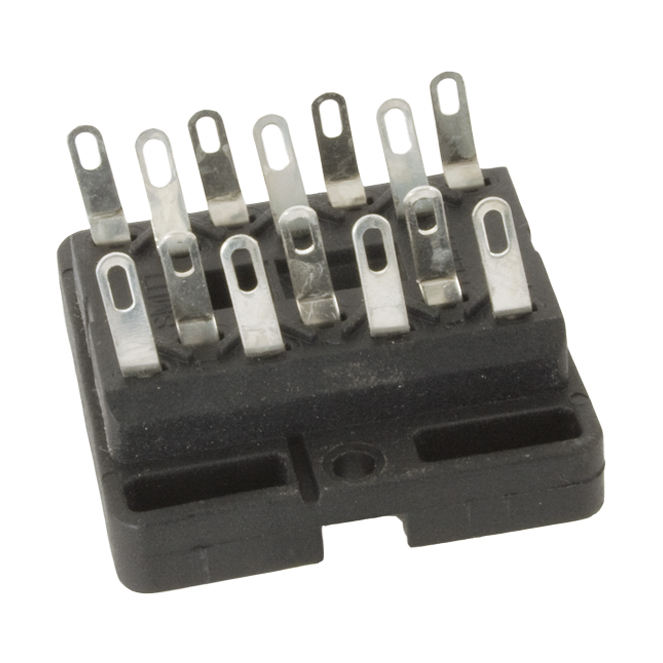

V3 relay socket

338100100
Summary

V3, flush/panel mounting, relay socket

For heavy duty, industrial applications, space saving design. Installation and replacement of plug-in relays is made easy and cost saving. No maintenance is required for the user.


Description of V3 relay socket

The V3 relay socket has soldering connections


Features of V3 relay socket

  • Sturdy faston terminals
  • Flush/panel mounting
  • Touch proof IP20
  • Suitable for all D-series power relays
  • Trifurcated female receiver for tight grip relay pin

Benefits of V3 relay socket

  • Proven reliable
  • Long term availability
  • Easy to maintain
  • Low life cycle cost
  • No maintenance
