Instantaneous plug-in Auxiliary power relays

D-B series, high DC breaking capacity relays

Summary

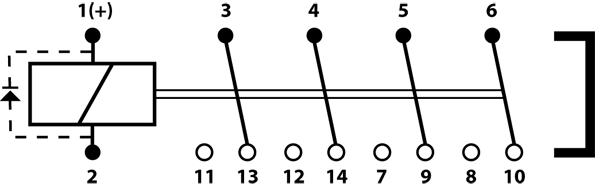

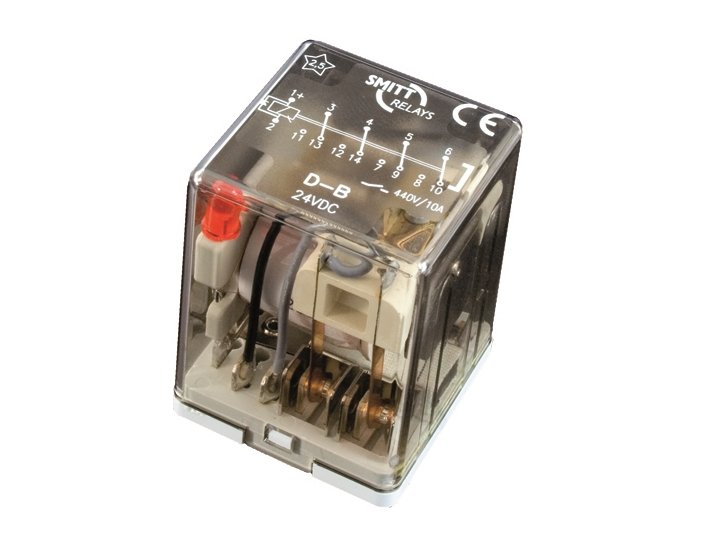

D-B relays, 4C/O, up to 7A/110V DC1

Heavy duty relays for demanding applications. Integrated magnetic arc blow-out function for higher DC breaking capacity.
  • Plug in relay
  • Smitt-style pinning
  • 4 C/O contacts
  • Rated load 7A /110V DC1 , 10A/230V AC1
  • Coil voltages 6...250VDC, 6...400VAC
  • AC&DC coil, DC with standard back EMF diode
  • LED indicator
  • Integrated 'snap-lock' retaining clip
  • Magnetic arc blow-out (option B)

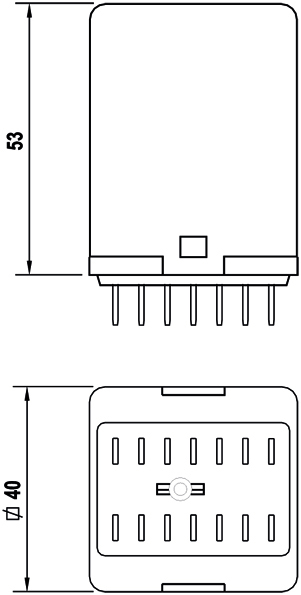

  • Dimensions 40 x 40 x 53 mm
