Instantaneous plug-in Auxiliary power relays

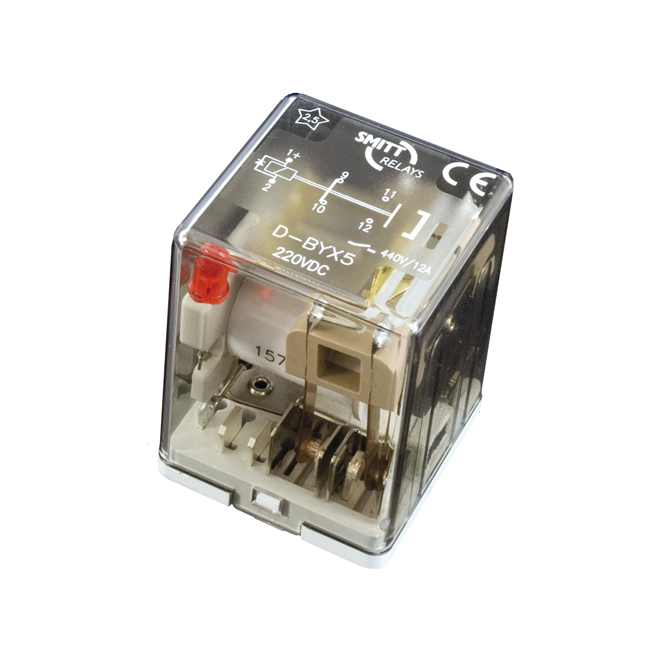

D-BYX5 series, high DC breaking capacity (12A) relays
Summary
D-BYX5 relays, 1 DM-DB, up to 12A/110V DC1
Heavy duty relays for demanding applications. Integrated magnetic arc blow-out function and contact gap 4mm for higher DC breaking capacity.
-
Plug in relay
-
Smitt-style pinning
-

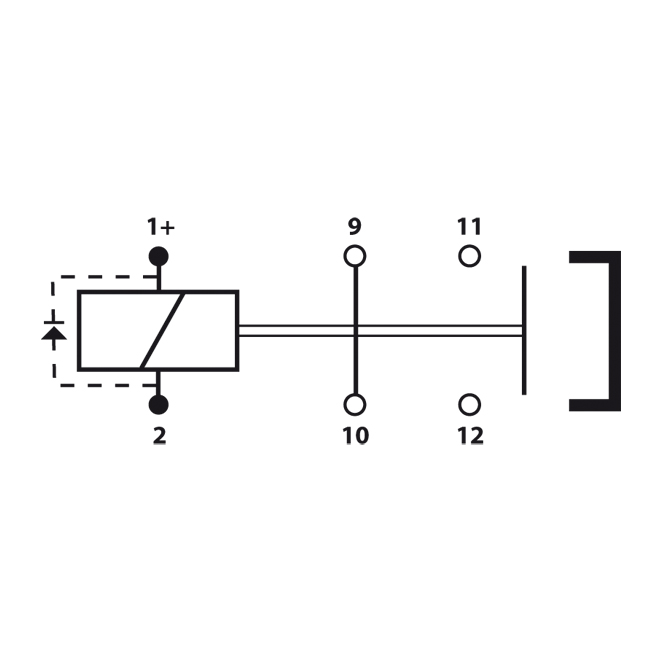

1 double make double break contact (option Y, standard)
-
Rated load 12A /110V DC1 , 10A/230V AC1
-
Coil voltages 12...220 VDC, 12...380 VAC
-
AC&DC coil, DC with standard back EMF diode
-

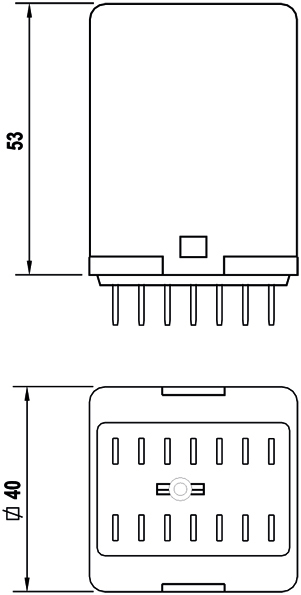

Dimensions 40 x 40 x 53 mm
-
LED indicator (option L, standard)
-
Integrated 'snap-lock' retaining clip
-
Magnetic arc blow-out (option B,standard)
-
Contact gap 4 mm. (option X5, standard)
