Instantaneous plug-in Auxiliary power relays
D-E series, low current switching relay
Summary

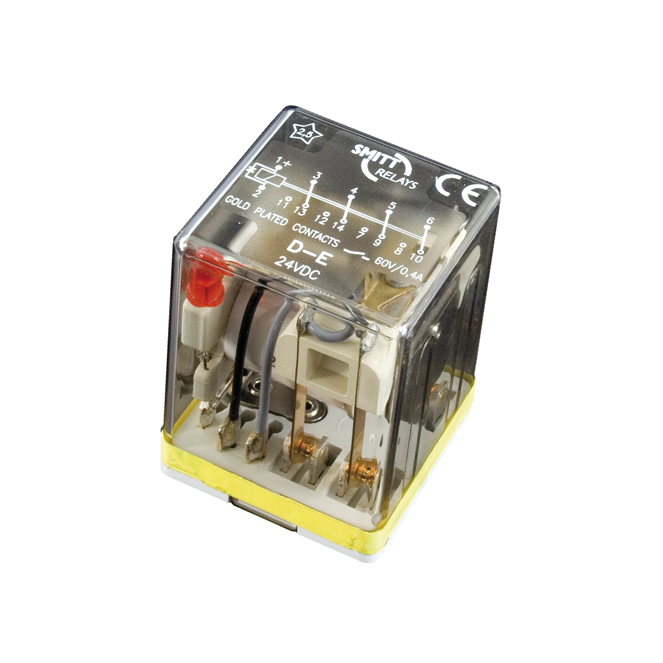

D relays, 4 C/O, 10A
Heavy duty relays for demanding applications, suitable for low current switching, equipped with gold plated contacts.
-
Plug-in powe relay
-
Smitt-style pinning
-
4 C/O contacts, gold plated
-
Rated load 1A /110V DC1 , 10A/230V AC1
-
Coil voltages 12...350VDC, 12...440VAC
-
AC&DC coil (DC coil standard with back EMF diode)
-
LED indicator
-
Integrated 'snap-lock' retaining clip
-

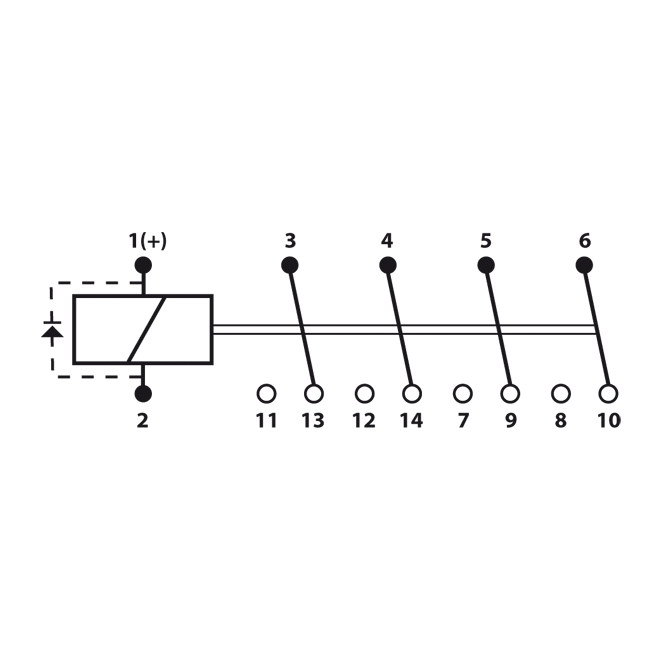

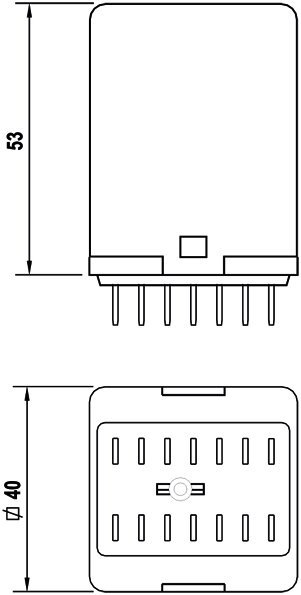

Dimensions 40 x 40 x 53 mm
Related products
.jpg)
V2 relay socket
Obsolete (338000100)- Compact relay socket for D-series power relays
- Surface/wall mounting
- Screw terminals, bush connections
- Wires up to 2,5mm2
Download datasheet
See more details
.jpg)
V22BR relay socket
338000302- Relay socket for D-series power relays
- Surface/wall mounting
- Screw terminals, extra large, wires up to 2,5mm2
- 9mm wide terminal surface
Download datasheet
See more details
.jpg)
V23BR relay socket
338000402- Relay socket for D-series power relays
- Rail mounting (35 mm/DIN)
- Screw terminals, extra large, wires up to 2,5 mm2
- 9 mm wide terminal surface
Download datasheet
See more details
.jpg)
V24 relay socket
- Relay socket for D-series power relays
- Surface/wall mounting
- Faston terminals (1x faston 6,8 x 0,8mm or 2x faston 2,8 x 0,8mm)
Download datasheet
See more details
.jpg)
V25 relay socket
- Relay socket for D-series power relays
- 35mm (DIN) rail mounting
- Faston terminals (1x faston 6,8 x 0,8mm or 2x faston 2,8 x 0,8mm)
Download datasheet
See more details
.jpg)
V21 relay socket
338000200- Compact relay socket for D-series power relays
- Rail mounting (35mm/DIN)
- Screw terminals, bush connections
- Wires up to 2,5mm2
Download datasheet
See more details
.jpg)
V3 relay socket
338100100- Relay socket for D-series power relays
- Flush/panel mounting
- Soldering connections
Download datasheet
See more details
.jpg)
V26 relay socket
328400100- Relay socket for D-series power relays
- Flush/panel mounting
- Crimp terminal connections (A260 to be ordered seperate)
Download datasheet
See more details
.jpg)
V31 relay socket
338000560- Relay socket for D-series power relays
- Flush/panel mounting
- Double faston connections (4,8mm)
Download datasheet
See more details
.png)
V33 socket – push-in terminal, panel mount
338000570- Panel / flush mount
- Very compact solution
- Sturdy push-in terminals
- Solid and stranded wires with ferrules can be inserted easily without using a tool
- Stranded wires without ferrules can be inserted with a flatbladed screwdriver
- Twin connection per relay contact
- Large wires up to 3.3 mm2 (AWG 12)
- High density matrix of relay/sockets possible, horizontal and vertical stacked
- Suitable for all railway and industry D- & D-U relay series
- Easy & quick installation (up to 75% reduction of wiring time)
- Positive mechanical keying
- Trifurcated female receiver for tight grip relay pin
- Clear terminal ID
Download datasheet
See more details
.jpg)
V32 relay socket
338000561- Relay socket for D-series power relays
- Flush/panel mounting
- PCB soldering connections
Download datasheet
See more details
.png)
V29 relay socket
338000610- Relay socket for D-series power relays
- Surface & Rail mounting (35mm/DIN)
- Spring terminals (two per terminal)
- Solid or stranded wires up to 2,5mm2
Download datasheet
See more details
V23 relay socket
338000580- Relay socket for D-series power relays
- Surface & rail mounting (35mm/DIN)
- Screw terminals, wires up to 2,5mm2
- 7 mm wide terminal surface
Download datasheet
See more details
