Instantaneous plug-in Auxiliary power relays

D-YB series, high DC breaking capacity (8A) relays

Name: D-YB series, high DC breaking capacity (8A) relays
Brand: Own brand
Availability: InStock

Summary

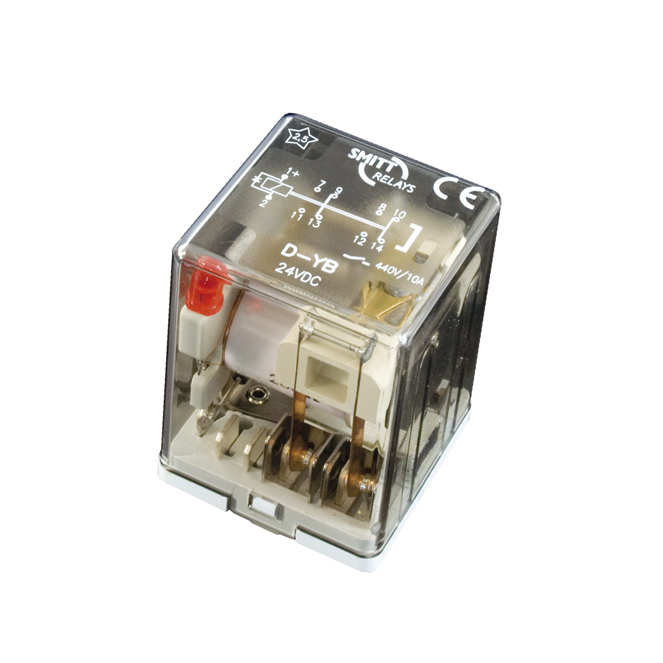

D-YB relays, 2 DM-DB contacts, up to 8A/110V DC1

Heavy duty relays for demanding applications. Integrated magnetic arc blow-out function and double make - double break contacts for higher DC breaking capacity.

Plug in relay
Smitt-style pinning

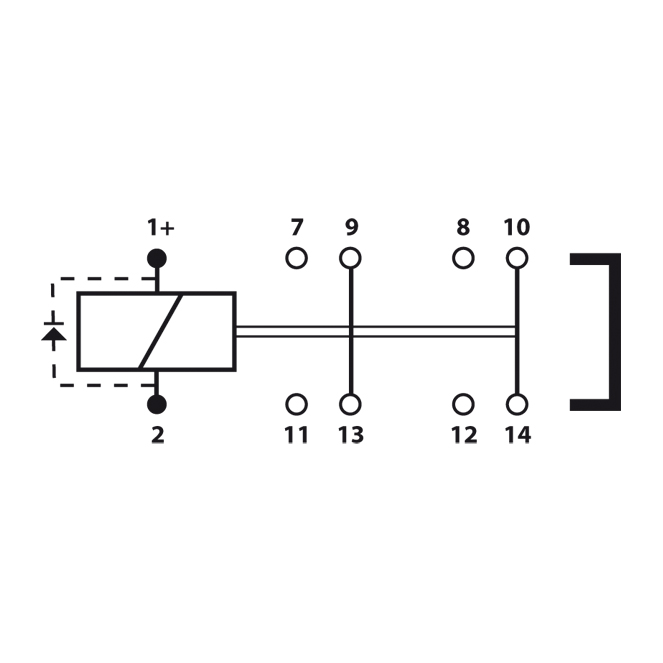

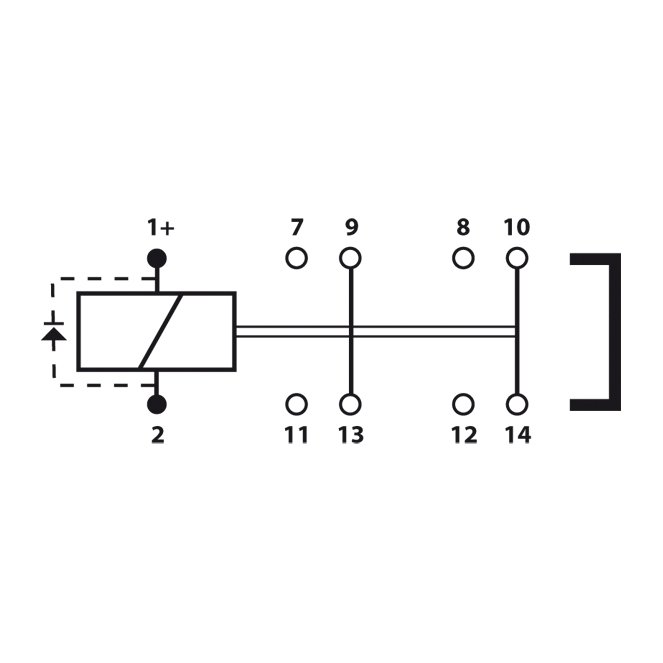

2 double make double break contacts
Rated load 8A /110V DC1 , 10A/230V AC1
Coil voltages 12...220VDC, 12...380VAC
AC&DC coil, DC with standard back EMF diode
LED indicator
Integrated 'snap-lock' retaining clip
Magnetic arc blow-out (option B)
Double make/double break (option Y)

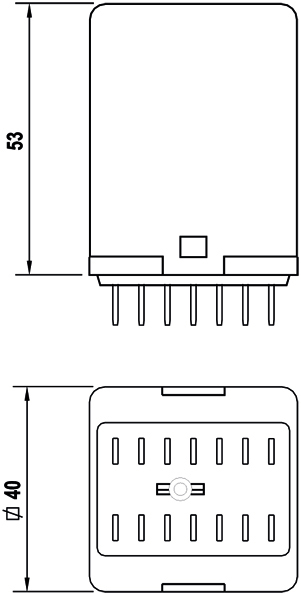

Dimensions 40 x 40 x 53 mm
