Latching / bistable heavy duty power relays

BD series, latching relay (bistable), magnetic latch

Summary

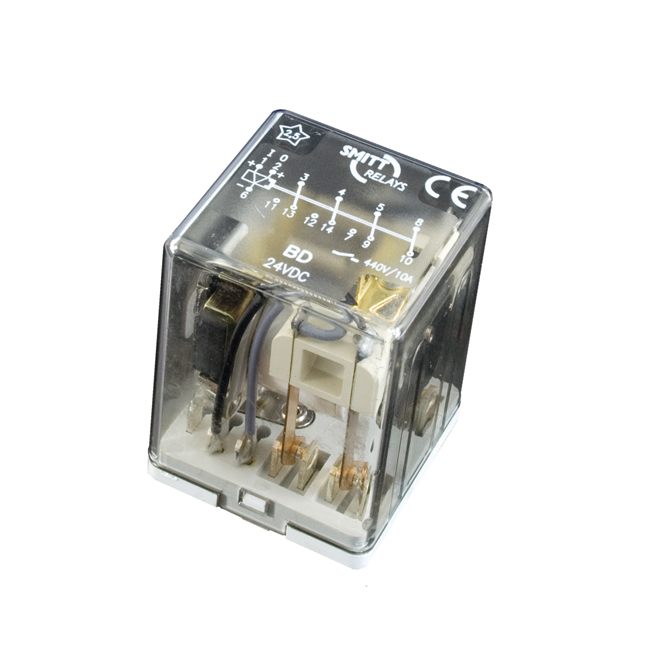

BD relays, latching, 3 C/O + 1 N/C, 10A

Heavy-duty latching relay / bistable relay for demanding applications. Equipped with a magnetic latch (permanent magnet). Due to pulse activation less heat dissipation and energy consumption than instantaneous relays.
  • Plug in relay
  • Smitt-style pinning

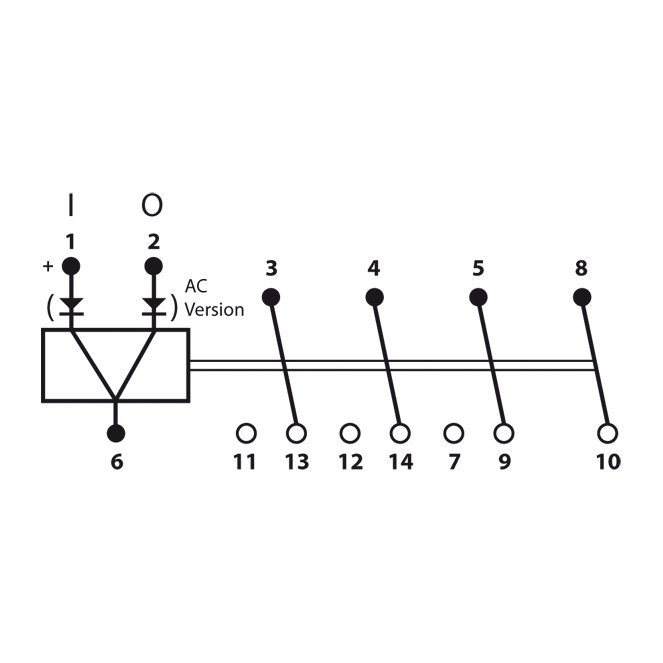

  • 3 C/O + 1 N/C contacts
  • Rated load 1 A /110 VDC1 , 10 A/230 VAC1
  • Coil voltages 12...220 VDC, 24...240 VAC
  • AC & DC coil
  • Continuous coil energization permitted
  • Integrated 'snap-lock' retaining clip

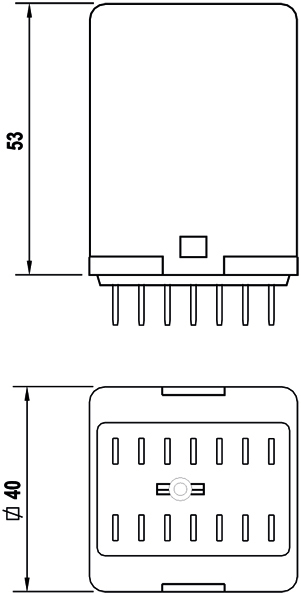

  • Dimensions 40 x 40 x 53 mm
