Instantaneous plug-in Auxiliary power relays

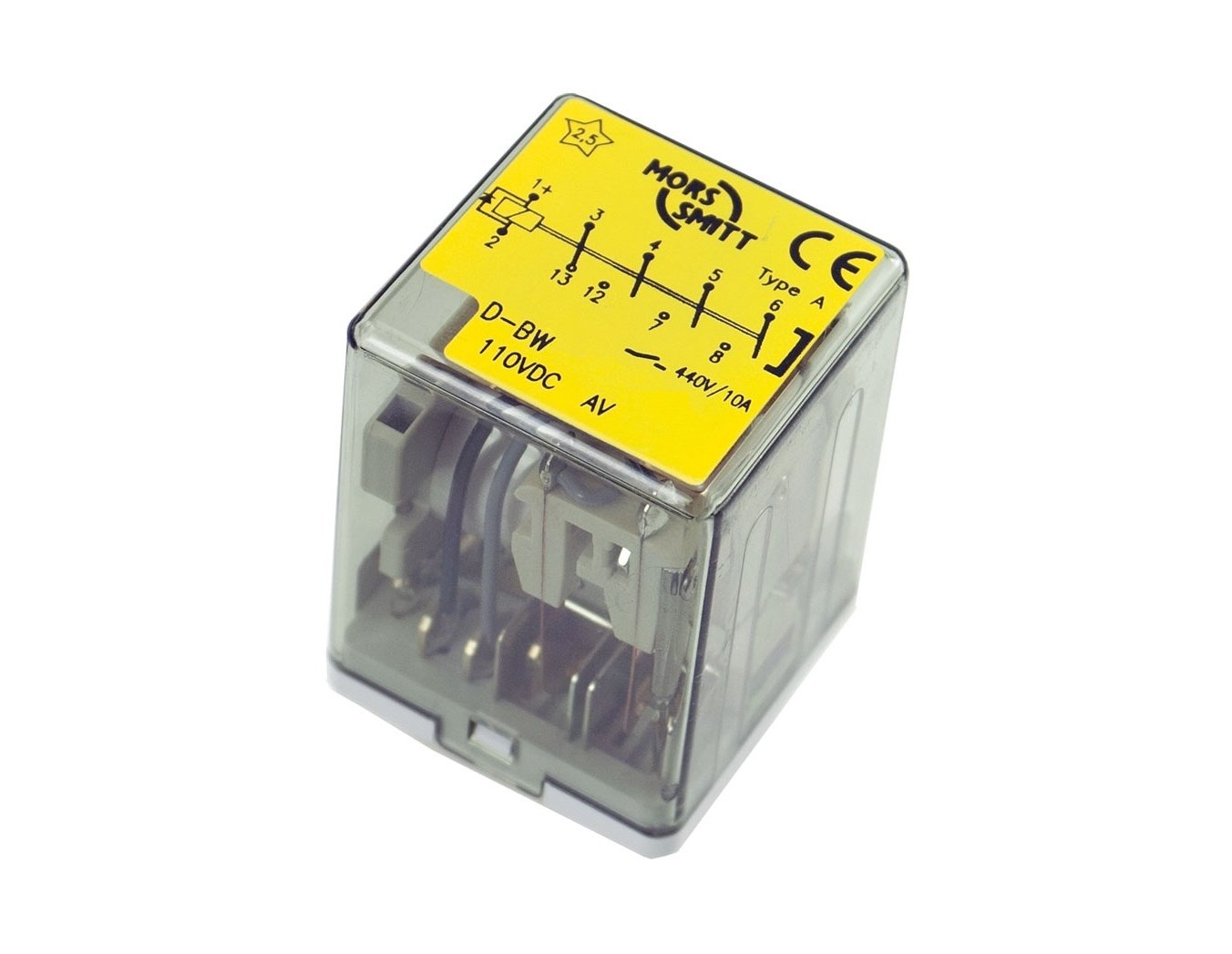

D-BW safety relay, 4 contacts, 10A

The D-relays series are designed for demanding industrial applications such as power utilities and petrochemical industries. The construction of the relay and choice of materials makes the D-relay suitable to withstand corrosive atmosphere, low and high temperatures and vibrating environments.
No external retaining clip needed as integrated ‘snap-lock’ will hold relay into socket under all circumstances and mounting directions All relays are equipped with a LED and suppression diode.
Magnetic ARC blow out (for high breaking capacity and long contact life.) is standard.
  • Compact plug-in design
  • Instantaneous, 4 NO/NC contacts
  • Standard back EMF diode
  • Optional magnetic arc blow-out.
  • Flat, square silver plated relay pins for excellent socket connection
  • Wide range sockets
  • Integrated snap lock
  • Transparent cover
  • High DC breaking capacity
  • Flexibility by many options
  • Optional positive mechanical keying relay to socket
  • Weld-no-transfer (WNT) contacts
