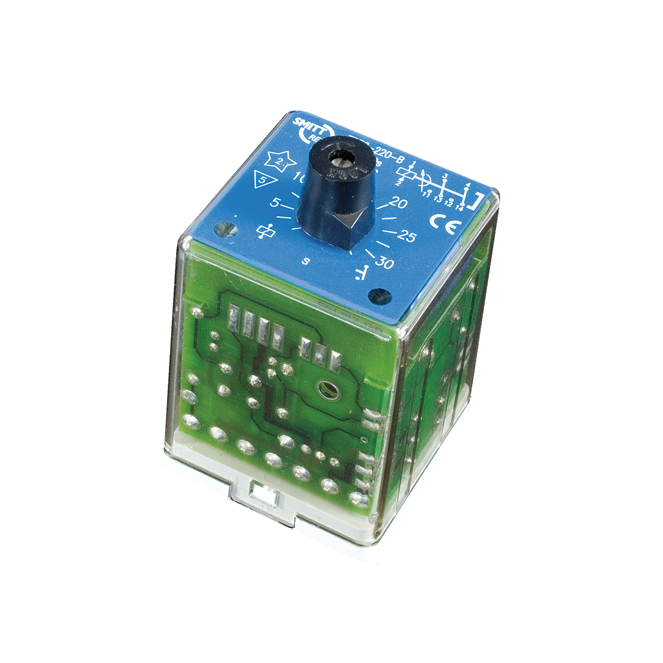

TDB2 series, delay-on timer relay

Name: TDB2 series, delay-on timer relay
Brand: Own brand
Availability: InStock

This relay is obsolete from January 1, 2023

Summary

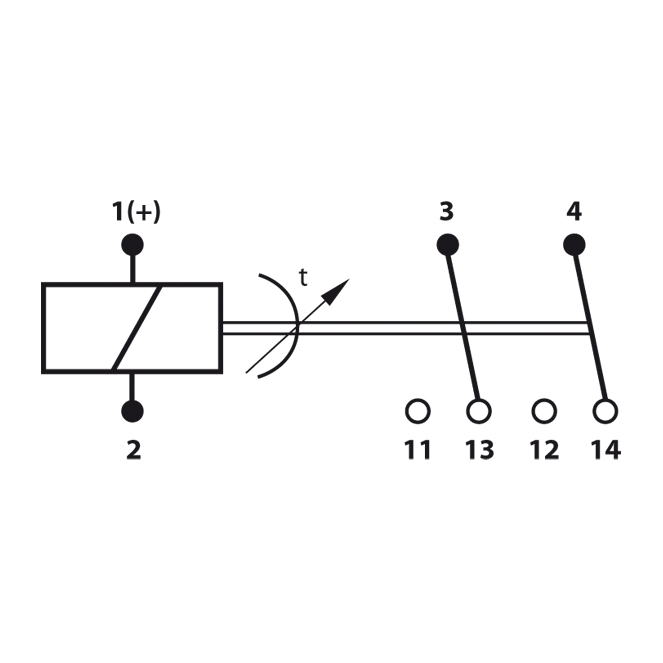

TDB2, delay on timer relay, 2 C/O, 6A

Delay on timer relay for heavy duty, demanding applications, switching of AC & DC voltages, resistive and/or inductive loads.
