Obsolete Industrial Relays
.jpg)

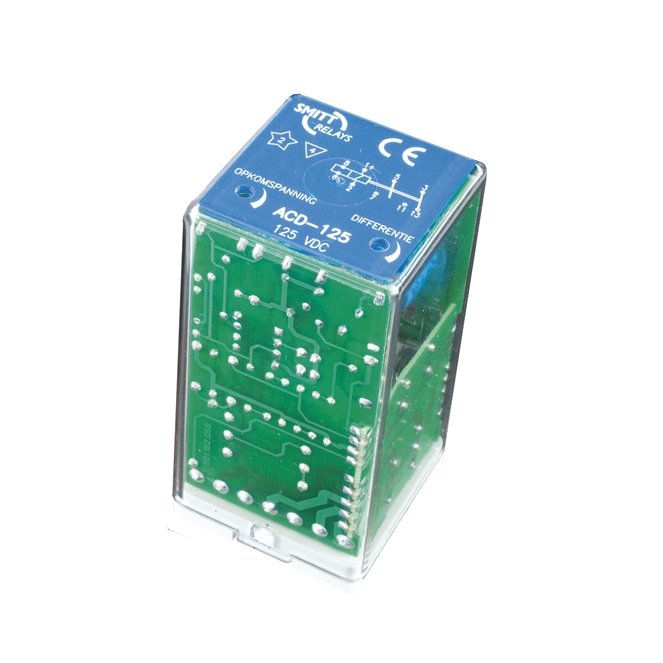

ACD series, DC voltage monitoring relays
Obsolete- Plug-in relay with 1 C/O + 1 N/O contact
- Coil voltages 12...110 VDC
- For DC voltage monitoring applications like battery packs. Adjustable pull-in & hysteresis
See more details

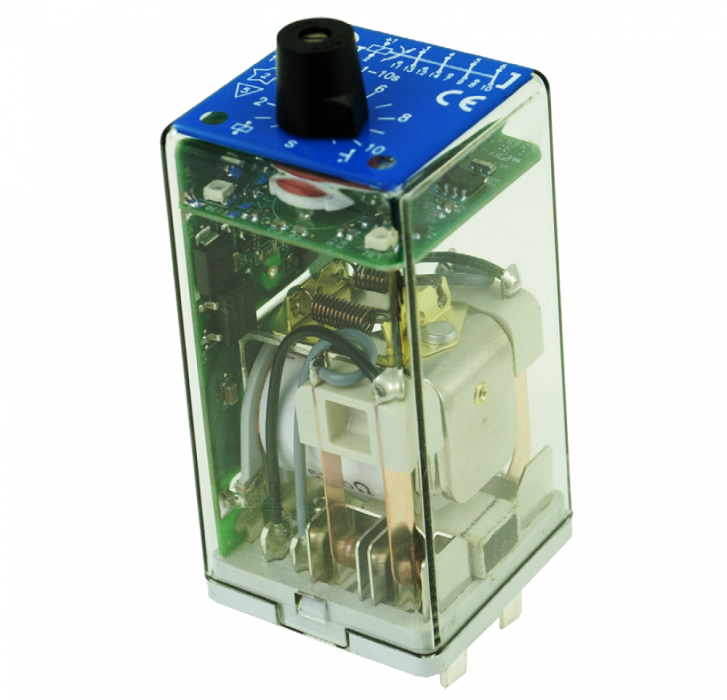

CTD4 relay - Multifunction customizable timer, 4 p…
This relay is obsolete from January 1, 2023- Fully customizable timer relay
- Compact plug-in design
- 4 time delayed C/O contacts or
- 2 time delayed C/O contacts and
- 2 instantaneous C/O contacts
- Delay/pulse times adjustable with 1 or
- 2 lockable knobs
- Also available with fixed delay/pulse times (no knobs)
- Delay/pulse times: between 0 s...∞ (no limits)
- Two LEDs for status indication
- Suitable for DC and AC voltage
- Flat, square and silver plated relay pins for excellent socket connection
- Wide range of sockets
- Integrated snap lock
- Transparent cover
- Optional positive mechanical keying relay to socket
- Flexibility by many options
See more details
.jpg)

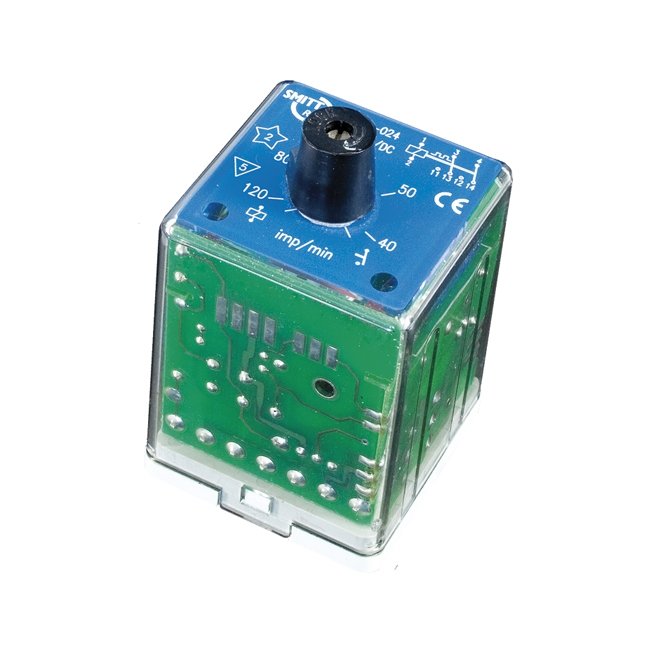

FDA series, interval timer relay (flashing relay)
This relay is obsolete from January 1, 2023- Flashing relay (symmetrical)
- Duty cycle: 1/2
- DC and AC (50/60 Hz) input
- Standard coil is 50 Hz (60 Hz on request)
- Compact plug-in design
- 2 C/O contacts
- Pulse time adjustable with a lockable knob
- Pulse times between 0.5 s - 3 s
- Also available with fixed pulse time (no knob)
- Double zener diode coil protection
- Flat, square and silver plated relay pins for excellent socket connection
- Integrated snap lock
- Optional positive mechanical keying relay to socket
See more details
.jpg)

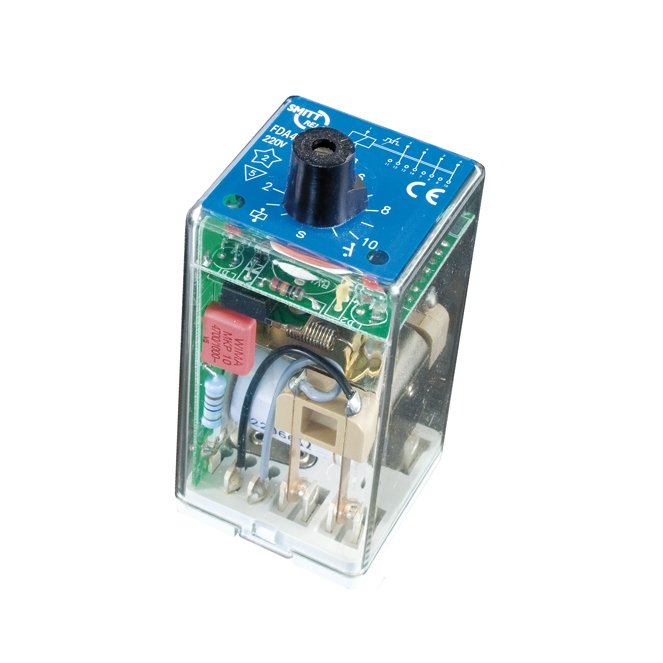

FDA4 series, interval timer relay (flashing relay)
This relay is obsolete from January 1, 2023- Plug-in interval timer relay with 4 C/O contacts
- Coil voltages 24...220 VAC/DC
- Pulse time = interval time
- Time adjustable by lockable knob
- Rated load, 10A/230V AC1, 1A/110V DC1
See more details
.jpg)

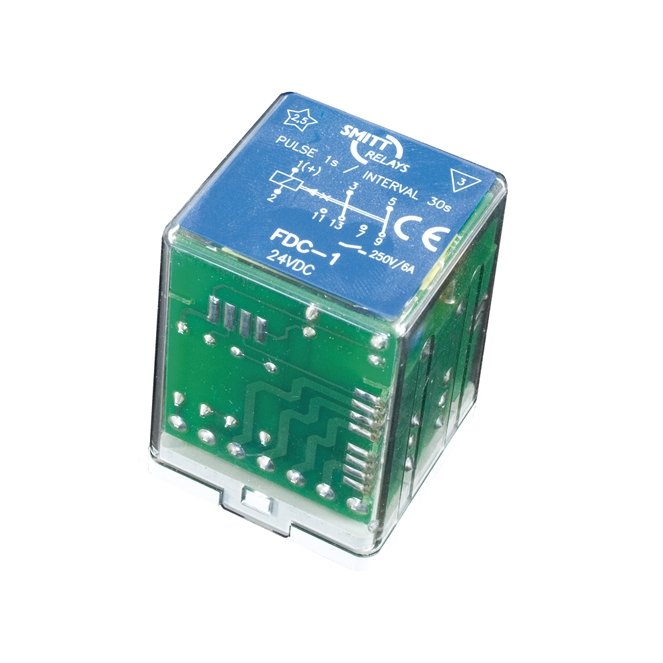

FDC series, interval timer relay (flashing relay)
This relay is obsolete from January 1, 2023- Plug-in interval timer relay with 2 C/O contacts
- Coil voltages 24...110V AC/DC
- Pulse time 1s. Interval time 30s (fixed)
- Rated load, 6A/230V AC1, 1A/24V DC1
See more details
.jpg)

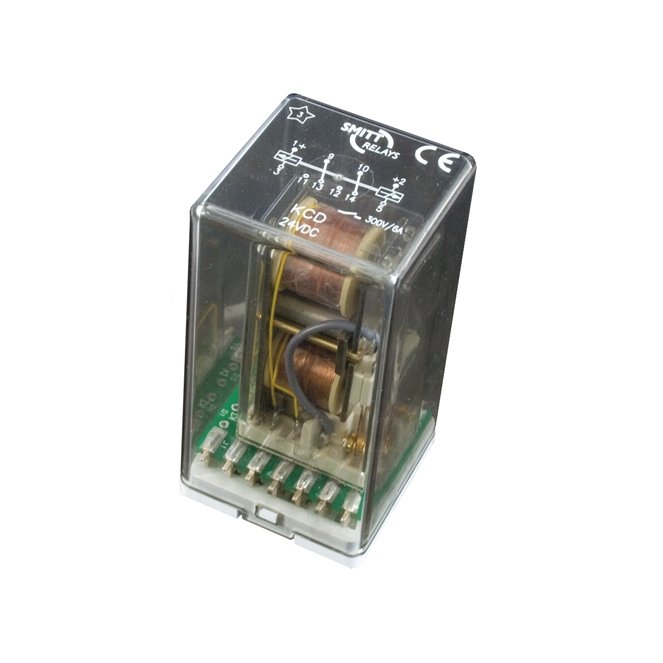

KCD series, latching relay (bistable), magnetic la…
This relay is obsolete from January 1, 2023- Plug-in relay with 2 C/O contacts
- Coil voltages 12...220 VAC/DC
- Rated load 6A/230V AC1
- Latching/bistable by means of a permanent magnet
See more details
.jpg)
KCS series, latching relay (bistable), magnetic la…
This relay is obsolete from January 1, 2023- Plug-in relay with 2 C/O contacts
- Coil voltages 12...110 VAC/DC
- Rated load 6A/230V AC1
- Latching/bistable by means of a permanent magnet
See more details
.jpg)

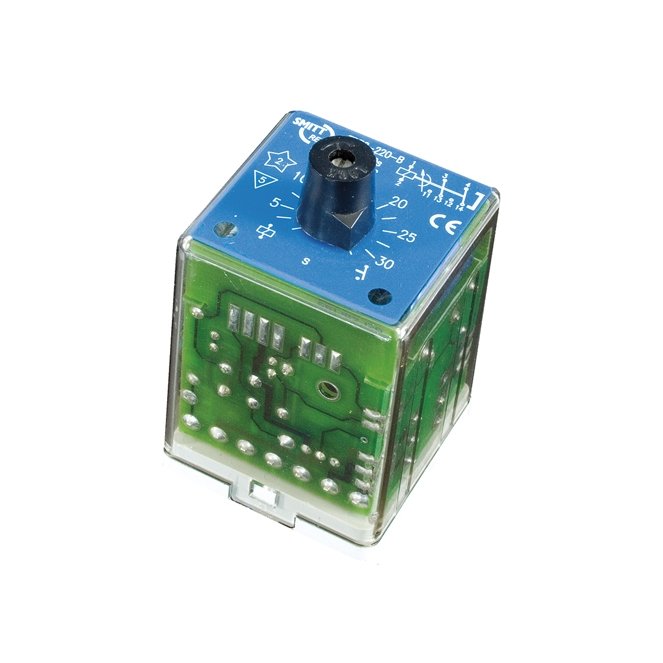

TDB2 series, delay-on timer relay
This relay is obsolete from January 1, 2023- Plug-in delay on timer relay with 2 C/O contacts
- Coil voltages 24...110 VDC, 24...110 VAC
- Several time ranges, see datasheet
- Time adjustable by lockable knob
- Rated load, 6 A/ 230V AC1, 1 A/24 VDC1
See more details
.jpg)

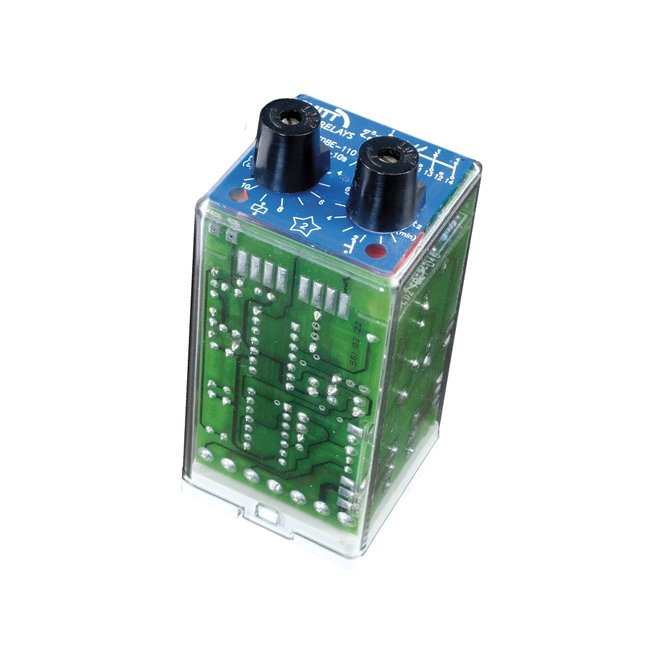

TDBE series, delay on & off timer relay
Obsolete- Plug-in delay on & off timer relay with 2 C/O contact
- Coil voltages 24...220 VDC
- Several time ranges, see datasheet
- Time ranges adjustable by lockable knob
- Rated load 6A/230V AC1, 1A/24V DC1
See more details
.png)

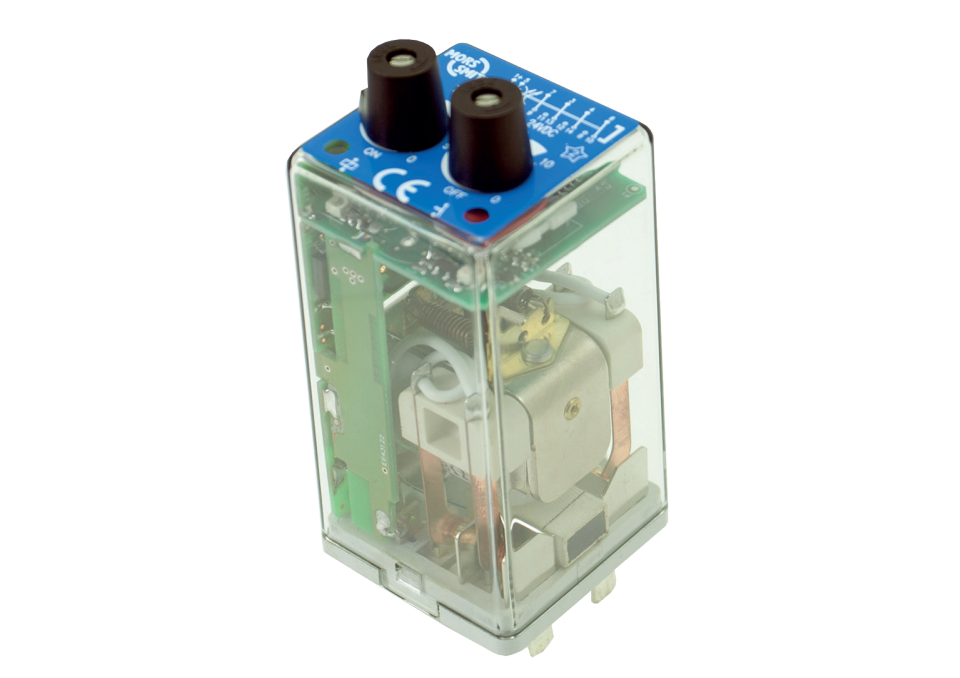

TDBE4, dual function timer relay
This relay is obsolete from January 1, 2023- Plug-in delay on & off timer relay with 3 C/O contact and 1 N/C contact
- Coil voltages 24...220 VDC
- Several time ranges, see datasheet
- Time ranges adjustable by lockable knob
- Rated load 6A/230V AC1, 1A/24V DC1
See more details
.jpg)

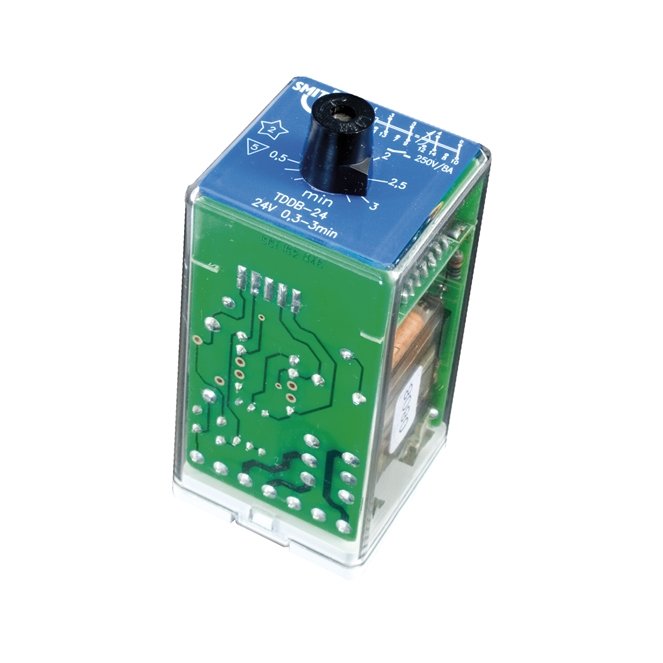

TDDB series, delay-on timer relay
This relay is obsolete from January 1, 2023- Plug in
- 2CO contacts direct and 2 C/O contacts time delayed
- DC and AC coil
- Flash barriers
- LED indicator
- Cadmium free contacts
- ‘Smitt-style’ pinning with integrated retaining clip silver plated
- Adjustable with a lockable knob
See more details
.jpg)

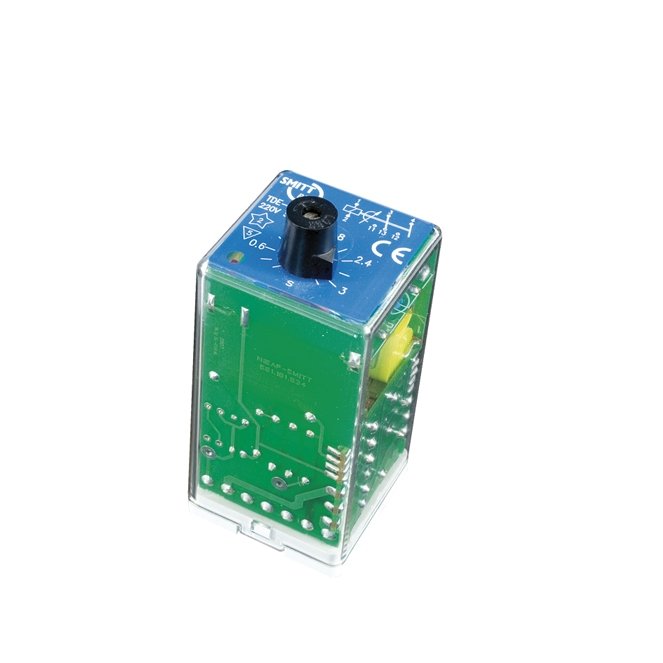

TDE series, delay off timer relay (no aux supply)
Obsolete- Plug-in delay on timer relay with 1 C/O and 1 N/O contact
- Coil voltages 24...110 VDC, 24...220 VAC/DC
- Several time ranges, see datasheet
- Time adjustable by lockable knob
- Rated load, 6A/230V AC1, 1A/24V DC1
See more details
.jpg)

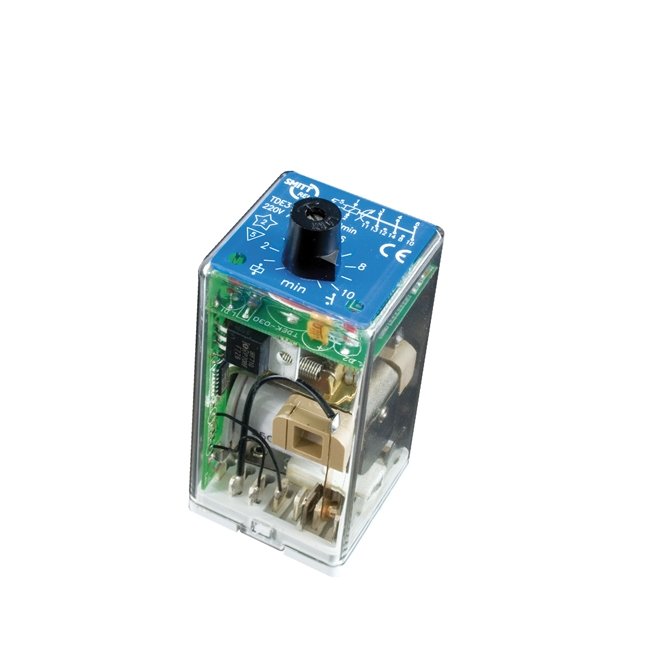

TDE3 series, delay off timer relay (with aux suppl…
Obsolete- Plug-in delay off timer relay with 3 C/O contact
- Coil voltages 24...220 VAC/DC
- Several time ranges, see datasheet
- Time adjustable by lockable knob
- Rated load 6 A/230 VAC1, 1 A/24 V DC1
See more details
.jpg)

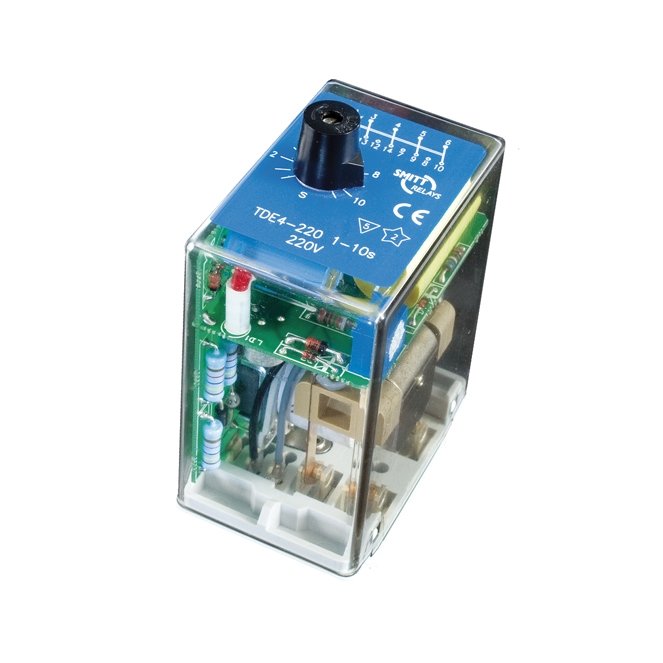

TDE4 series, delay off timer relay (no auxiliary s…
Obsolete- Plug-in delay off timer relay with 4 C/O contact
- Coil voltages 24...230V AC/DC
- Several time ranges, see datasheet
- Rated load 10A/230V AC1, 1A/110 VDC1
See more details
.jpg)

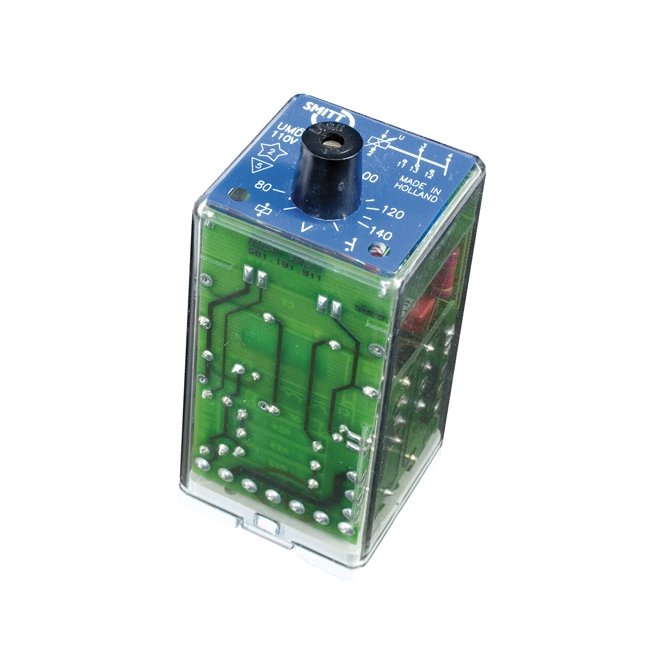

UMD series, voltage monitoring relays
Obsolete- Plug-in relay with 1 C/O + 1 N/O contact
- Coil voltages 24...220 VDC, 24...240 VAC
- Under- or overvoltage, adjustable & lockable range potentiometer on the front. No separate auxiliary supply needed.
See more details
.jpg)

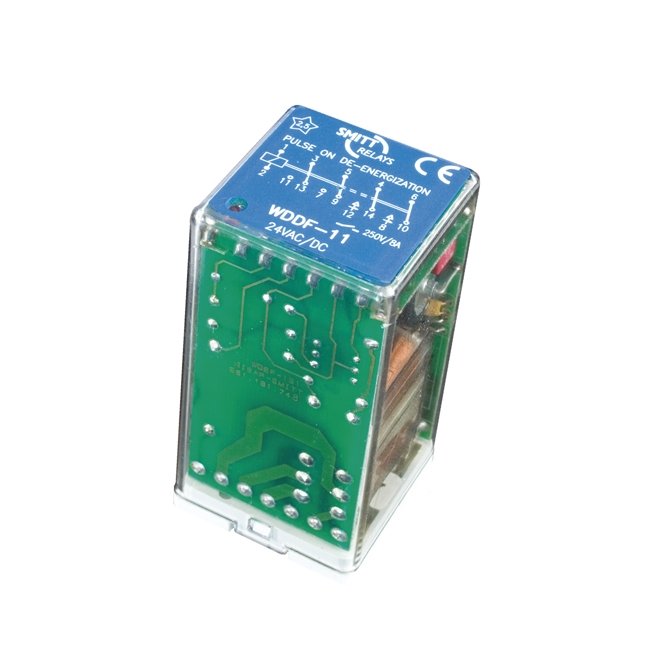

WDDF series, pulse relay (one shot-off relay)
This relay is obsolete from January 1, 2023- Plug-in pulse relay with 2 C/O and 2 N/C contacts
- Coil voltages 24...220V AC/DC
- Generates a 0,5s. (fixed) pulse on de-activation
- Rated load, 8A/230V AC1, 1A/24V DC1
See more details
.jpg)

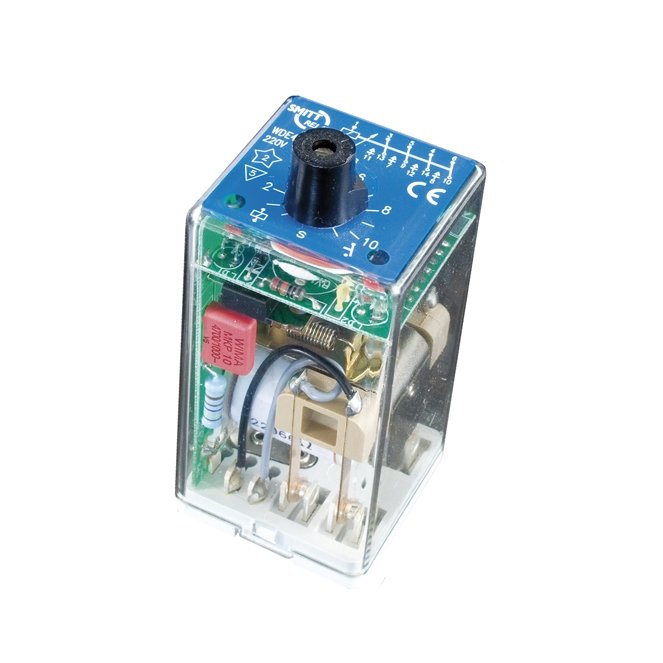

WDE4 series, pulse relay (one shot-on relay)
This relay is obsolete from January 1, 2023- Plug-in pulse relay with 4 C/O contacts
- Coil voltages 24...220V AC/DC
- Generates a pulse on activation. Several time ranges. Time adjustable by lockable knob
- Rated load, 10A/230V AC1, 1A/24V DC1
See more details
