Obsolete Industrial Relays

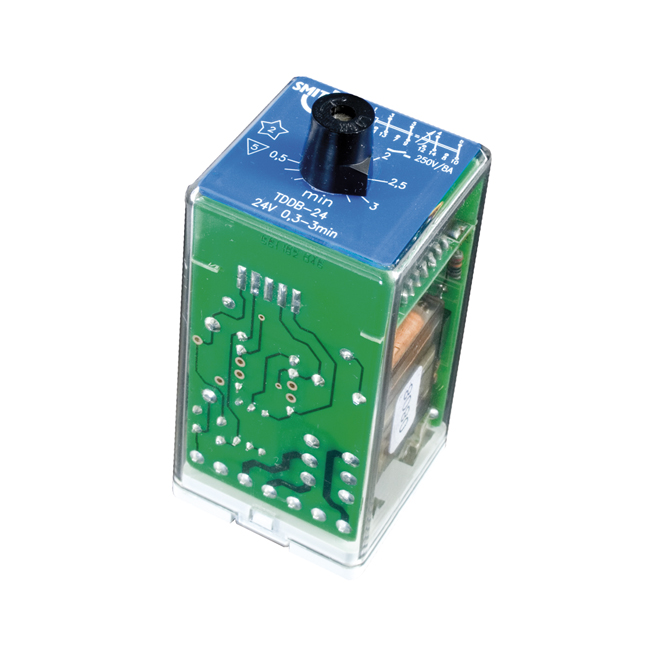

TDDB series, delay-on timer relay

This relay is obsolete from January 1, 2023
Summary

TDDB series, delay on timer relay

Delay off timer relay for demanding applications,
switching of AC & DC, voltages, resistive and/or inductive loads.
  • Plug in

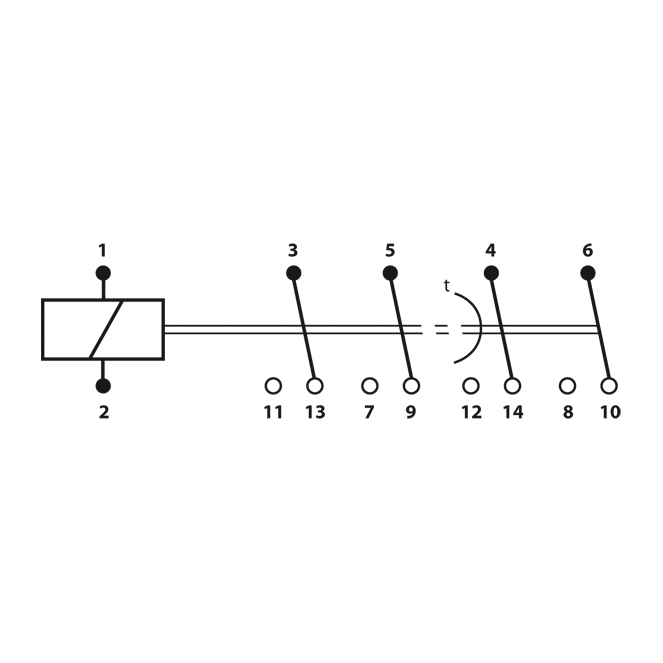

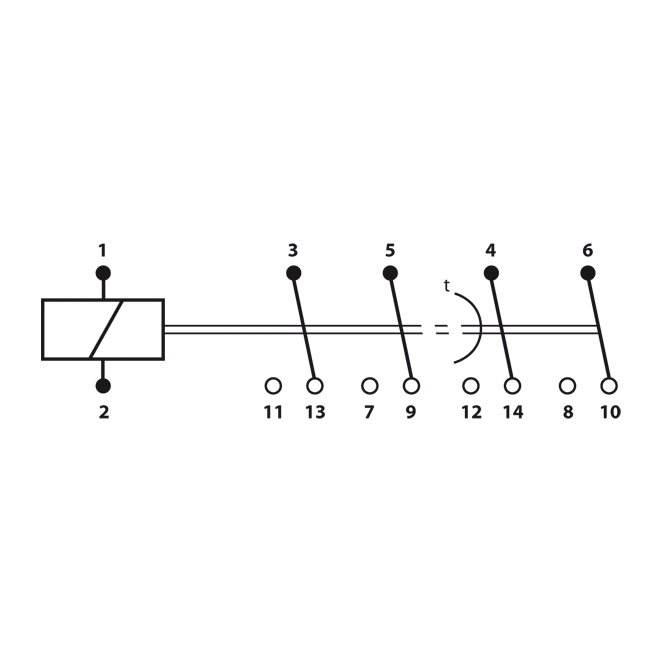

  • 2CO contacts direct and 2 C/O contacts time delayed
  • DC and AC coil
  • Flash barriers
  • LED indicator
  • Cadmium free contacts
  • ‘Smitt-style’ pinning with integrated retaining clip silver plated
  • Adjustable with a lockable knob
