Obsolete Industrial Relays

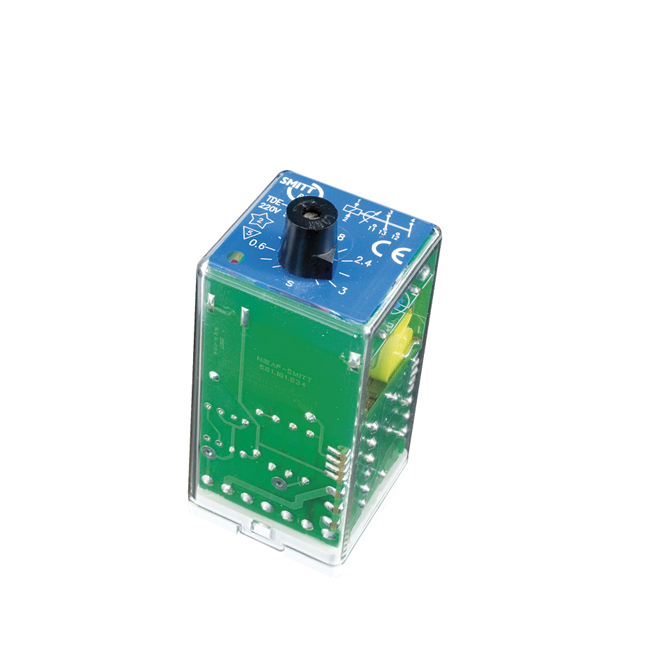

TDE series, delay off timer relay (no aux supply)

Name: TDE series, delay off timer relay (no aux supply)
Brand: Own brand
Availability: InStock

Obsolete

Summary

This product is no longer available. The replacement relay is the TDE4N.
Click here to go to the product page of the TDE4N.

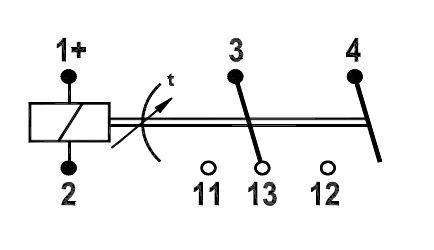

TDE, delay off timer relay, 1 C/O and 1 N/O, 6A

Delay off timer relay for heavy duty, demanding applications, switching of AC & DC voltages, resistive and/or inductive loads. No auxiliary supply needed.

Plug in power relay
Smitt-style pining
1 C/O and 1 N/O contact
DC and AC coil
Flash barriers
2 LED indicators
Cadmium free contacts
Several time ranges available, see datasheet
Adjustable with a lockable knob
Integrated 'snap-lock' retaining clip

See the datasheet in the download section for all specification and options.

See the accessories section for all suitable relay sockets and accessories.
